NEW TB WOODS 861B

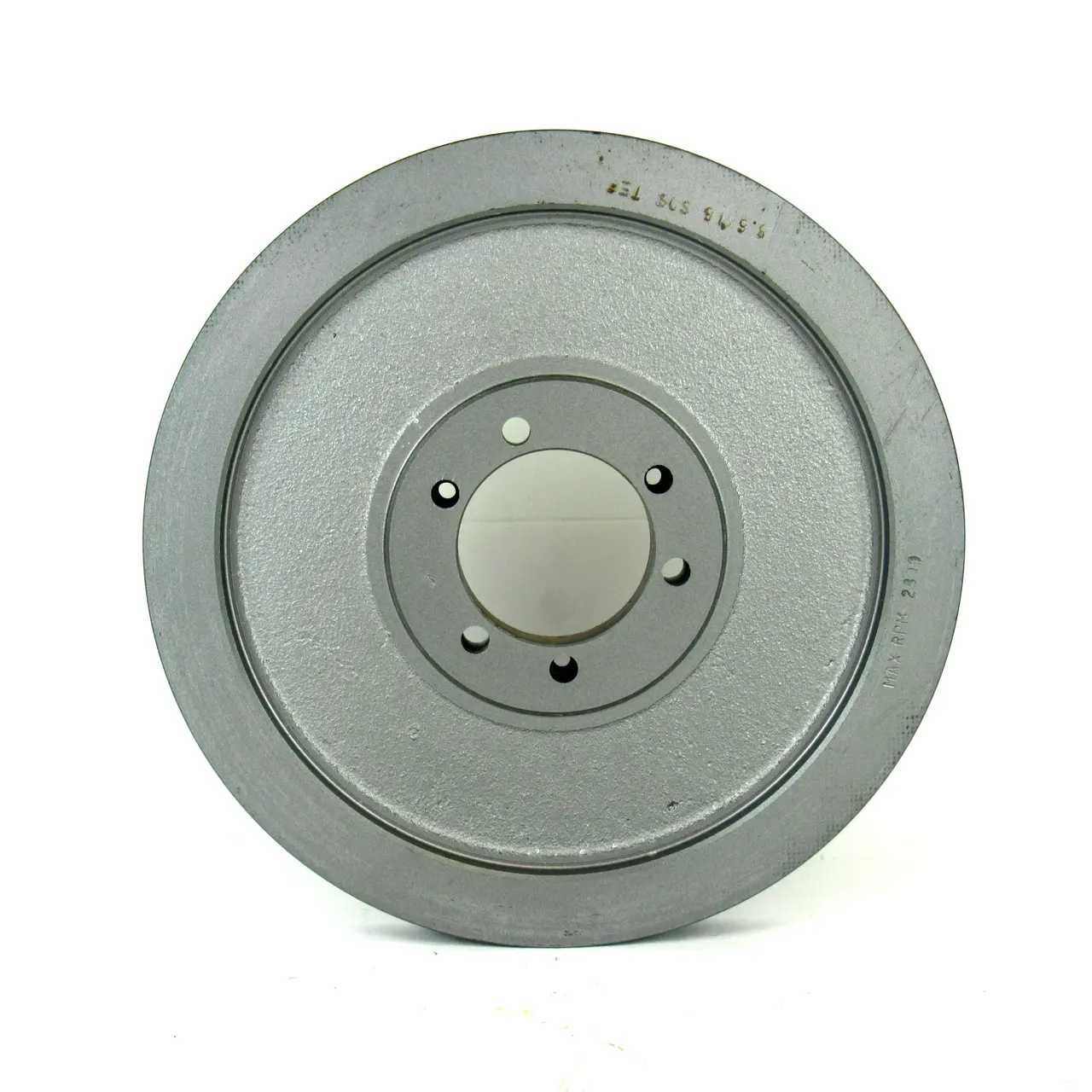

TB Woods 861B Bushing Bore V-Belt Pulley, 8.95" Outside Diameter Number of Grooves 1 Outside Diameter 8.95 in Length Through Bore 1.3125 in Face Width 1.0000 in Belt Section Size B, A Bore Type QD Bushed Bushing Series SDS Keyway Size 1/2 x 1/16 (1-7/8 to 1-15/16 Bore) in, 1/2 x 1/8 (1-13/16 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 1/8 (1-3/4 Bore) in, 3/8 x 3/16 (1-3/8 to 1-11/16 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in Material Cast Iron Bushing Bore Range 1/2 to 2 in Pitch Diameter 8.2 (A) in, 8.6 (B) in Overall Width 1-1/2 in Pulley Construction Webbed Weight 8.27 lbs
