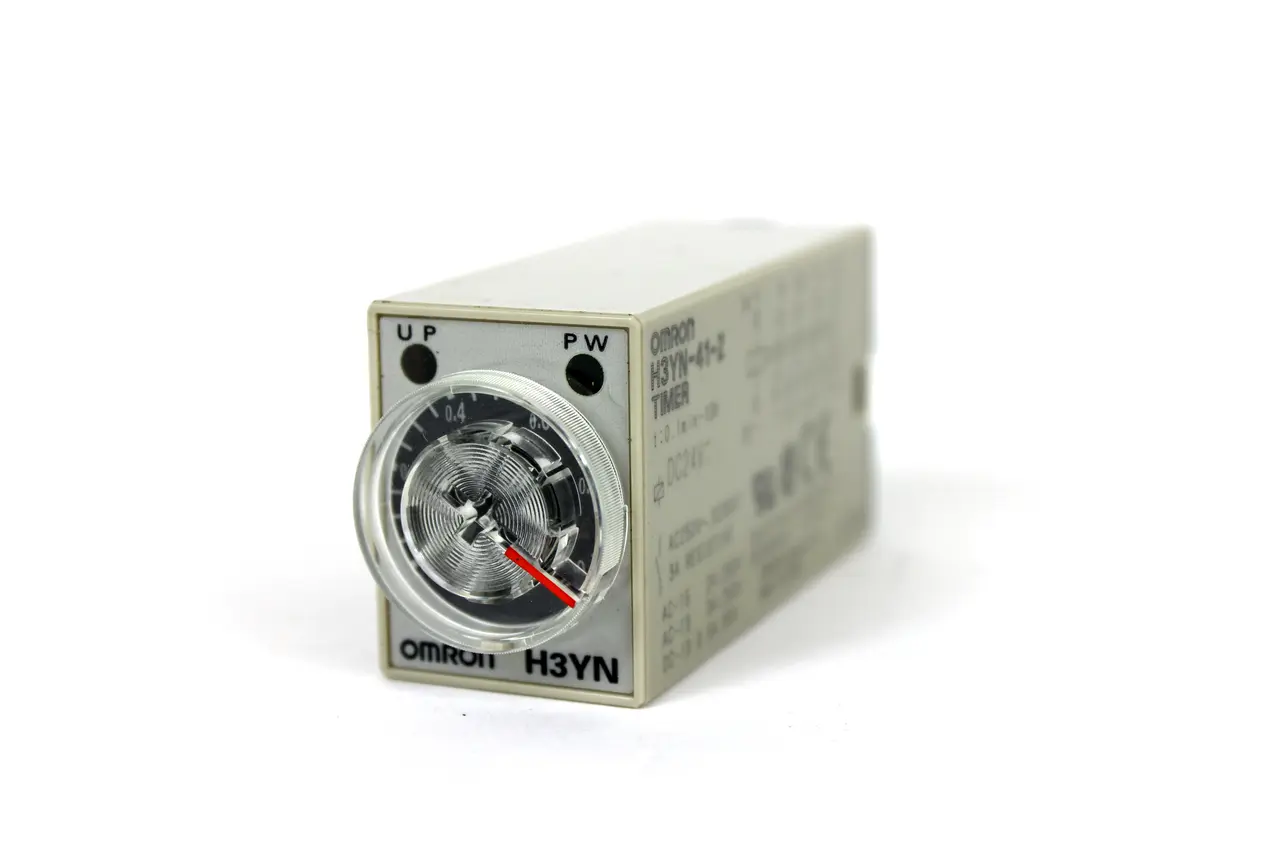

NEW OMRON H3YN-41-Z

Omron H3YN-41-Z Solid State Timer, 24V DC - Rated power supply voltage 24 VDC If power supply incorporates a single-phase full-wave rectifier. Allowable voltage variable range 85 to 110% of the power supply voltage Power consumption Relay ON: Approx. 1.1 W (at 24 VDC)/Relay OFF: Approx. 0.1 W (at 24 VDC) Reset voltage 10% max. of rated supply voltage Number of time ranges 4 Operation mode ON delay, Interval, Flicker OFF start, Flicker ON start Control output (Type) Time-limit: 4PDT Control output (Contact output) Resistive load: 3 A at 250 VAC (così =1) Minimum applicable load: 0.1 mA at 1 VDC (failure level: P) Ambient temperature range Operating: -10 to 50 ‰ãÄ (with no icing) Storage: -25 to 65 ‰ãÄ (with no icing) Ambient humidity range Operating: 35 to 85% Accuracy of operating time å±1% FS max. Setting error å±10% FS å±50 ms max. Reset time 0.1 s max. (including halfway reset) Influence of voltage å±2% FS max. Influence of temperature å±2% FS max. Insulation resistance 100 Më© min. (at 500 VDC) Dielectric strength Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded) Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 1,500 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min Impulse withstand voltage Between power terminals: 1 kV Between current carrying terminals and exposed non-current carrying metal parts: 1.5 kV Noise immunity å±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 åµs, 1-ns rise) Static immunity Mulfunction: 4 kV, Destruction: 8 kV Vibration resistance Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min Shock resistance Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions Life expectancy (relay output) Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h, Room temperature) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) Degree of protection IP40 Connecting method 14-pin round socket Case color Beige MADE IN JAPAN

SKU: IP10313
UPC: 646412845251
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Solid State Timer Module
MPN: H3YN-41-Z
Model: H3YN-41-Z
Shelf: N-4
Part Number: H3YN-41-Z
Manufacturer: Omron
Country/Region of Manufacture: Japan
GTIN: 646412845251
