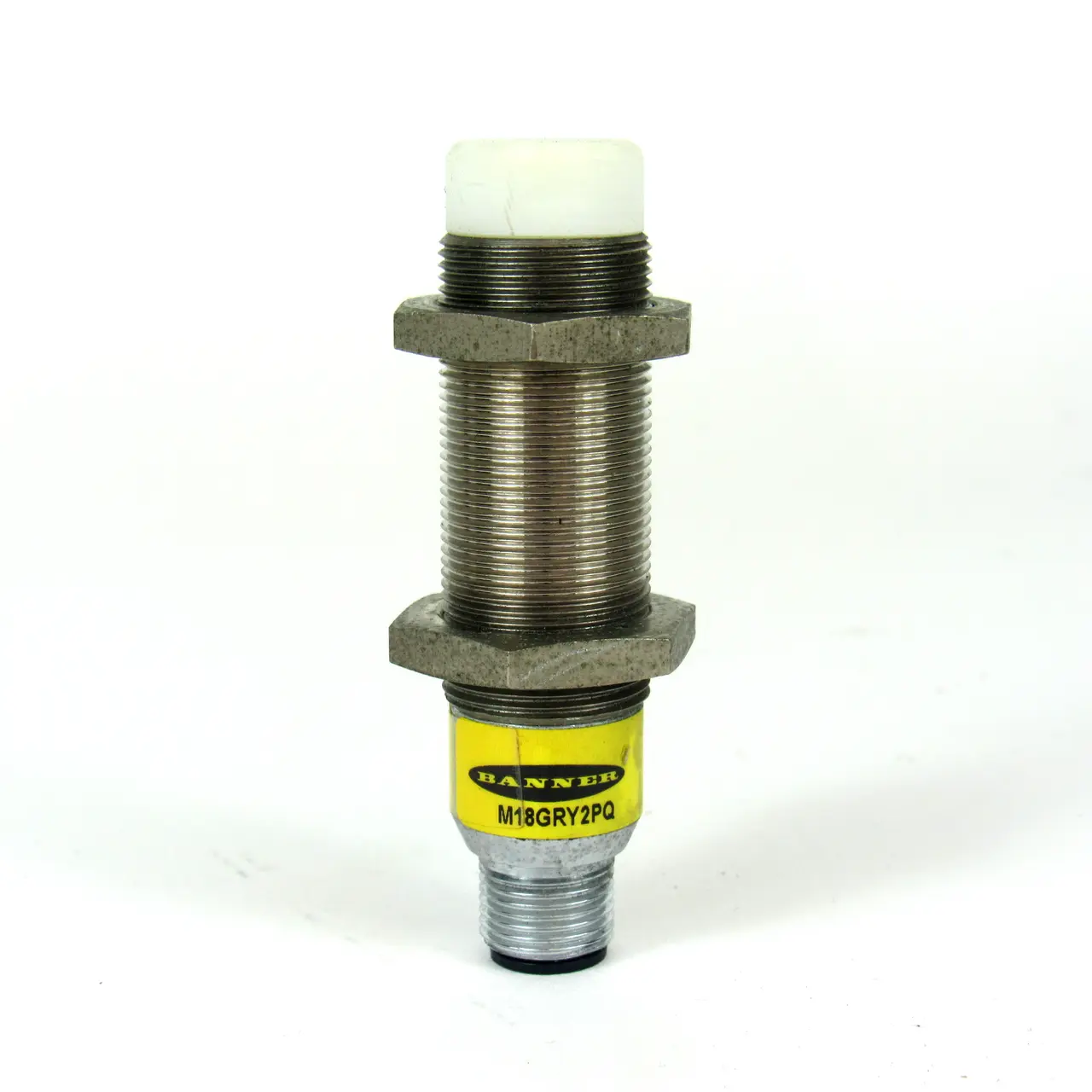

USED BANNER ENGINEERING M18GRY2PQ

Banner M18GRY2PQ General Purpose Indicator, 10-30V DC
- 3 color
-7-Function
-Red, Green, Yellow Light
-Flash or Cycle
-PNP Hookup Quick-Disconnect
-IP67
Cable Length (m) 0.15
Power DC
Power Source DC
Housing Style Barrel Mount - Flat Window
Primary Housing Material Nickel-Plated Brass
Indication Yes
Mounting Thread M18 x 1.0
Color Input Control Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments 3
Product Size (mm) 18
Color Technology Standard LED
Color Option 1 Green
Animation Option 1 Solid On
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Color Option 2 Red
Color Option 3 Yellow
Max Current Color (mA) 40
Wire Selectable Function Multi-Function
Number of Input Pins/Conductors 5
Supply Voltage 10-30 V dc
Input Type PNP
Max Input Response Time (ms) 250
Physical Dimensions (LxWxH or DxH mm) 16.5 x 70.4
Environmental Rating IP67
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -20
Primary Window Material Thermoplastic Diffused
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Multi-Color Device Single Color On
Feature: Quick Disconnect Yes
IO Link No
Modbus RTU No
Wireless No
Pro-Editor Compatible (Discrete) No
