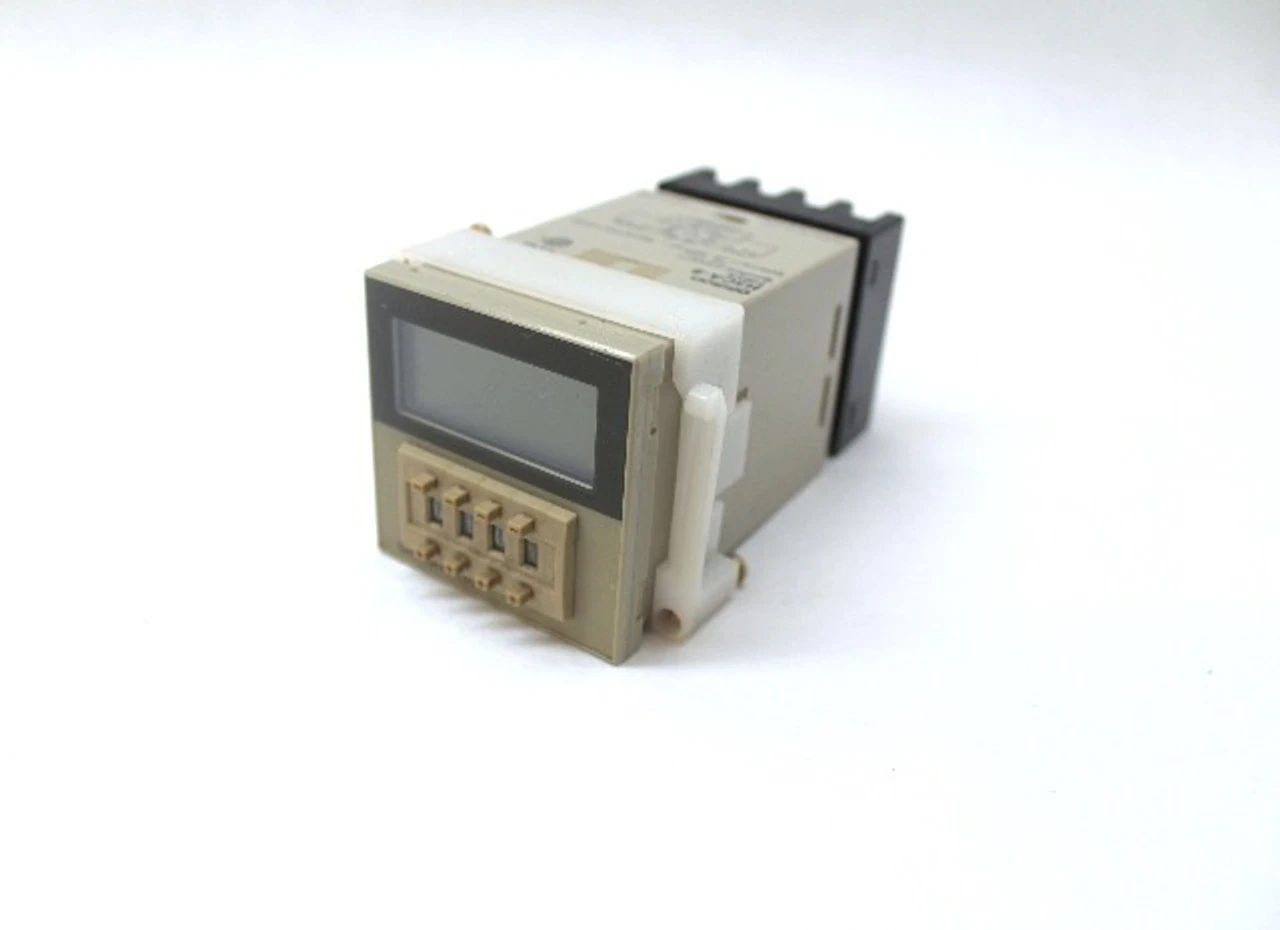

USED OMRON H3CA-8

Omron H3CA-8 Solid State Timer, On-Delay, 250Vac, 3A, 120V, with Base
Brand/Series
:
Contact Form
:
DPDT (2 Form C)
Current Rating
:
3 A
Dielectric Strength
:
2000 VAC @ 50⁄60 Hz, 1000 VAC @ 50⁄60 Hz
Material, Body
:
Plastic Case
Mounting Type
:
Socket
Number of Pins
:
8
Product Header
:
Solid State Timer
Relay Type
:
Mechanical Relay
Standards
:
UL, CSA, CE
Temperature, Operating, Maximum
:
55 °C
Temperature, Operating, Minimum
:
-10 °C
Termination
:
8 Pin Socketable
Timer Type
:
On Delay
Timing Range
:
0.1 Sec. to 9990 Hrs.
Voltage Rating
:
250 VAC
Voltage, Control
:
110VAC
Voltage, Switching
:
3A @ 250VAC
H3CA Series.

Digital setting. 8 field selectable operation modes. Ranges of 0.1 sec. to 9,990 hrs. 8-pin, 11-pin or front screw terminals with SPDT or DPDT relay, instantaneous or time limiting outputs. Bar graph elapsed time indication. UL, CSA, SEV.

Features:
LCD Time Remaining Bar Graph and Output Status
8 Field Selectable Operation Modes OR On-Delay Only Model
Selectable Time Ranges 0/1 Sec. to 9990 Hr.
Universal Voltage Model (H3CA-A) 24-240 VAC/12-240 VDC
8-Pin or 11-Pin Models Available

Specifications:
Supply Voltage: 100/110/120 VAC
Control Output: SPDT — 3 A @ 250 VAC (H3CA-A), (2) SPDT — 3 A @ 250 VAC (H3CA-8H), DPDT — 3 A @ 250 VAC (H3CA-8)
UL, CSA, SEV Approval

SKU: IP15725
UPC: 721814242744
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Free Shipping
GTIN: 641752899490
Country/Region of Manufacture: Japan
Manufacturer: Omron
Amperage: 3A
Series: H3CA
Shelf: F-11 Tub 10
Model: H3CA-8
MPN: H3CA-8
Voltage: 120v
Type: Timer
