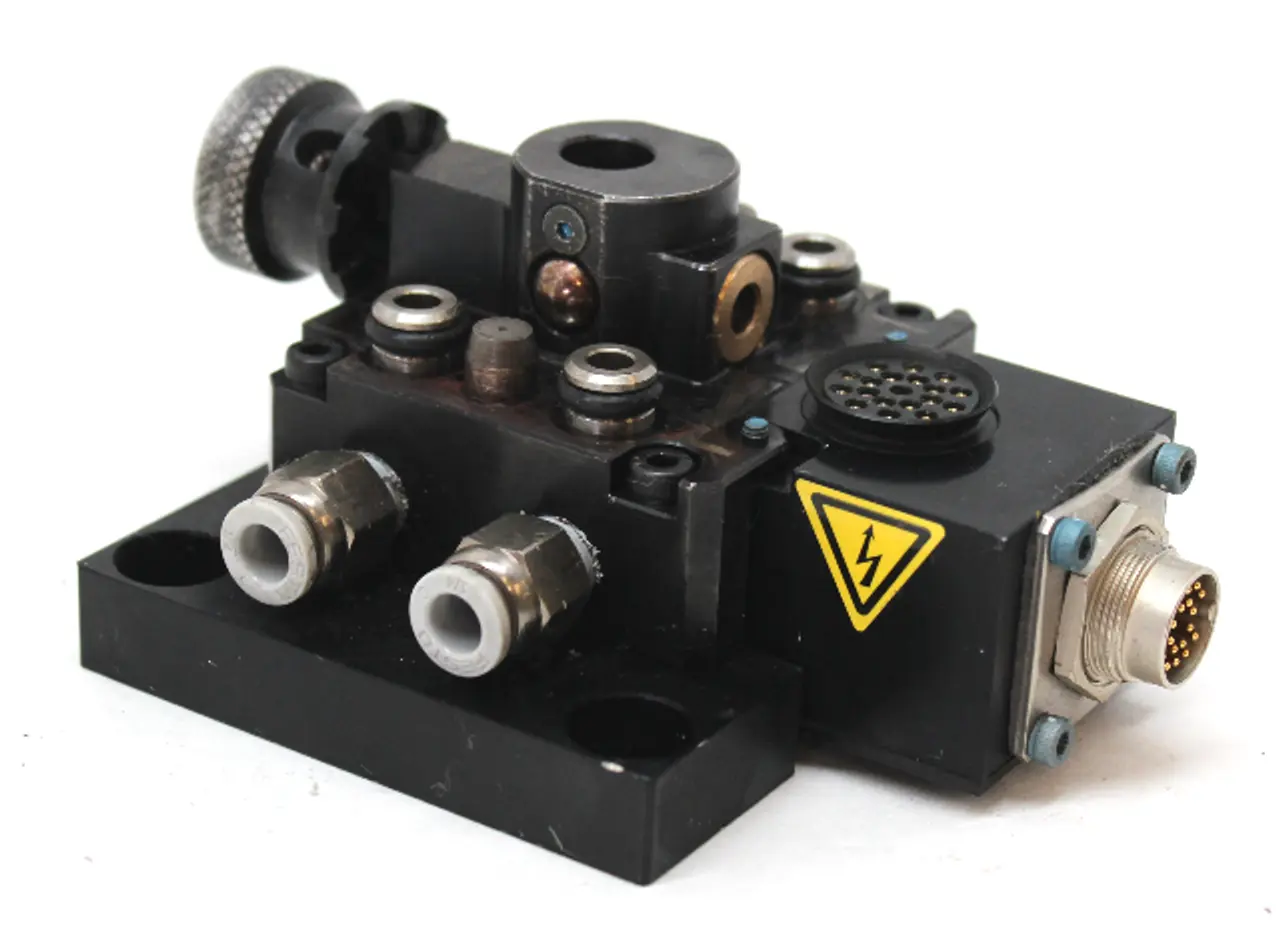

ATI Industrial Automation Manual Tool Changer MC 16RM w/KF19M Electrical Module
Product Advantages
Screw-style locking mechanism (patented) results in high locking force.
Manual one-handed Lock and Unlock actuation.
Ratchet Knob adds security to locked position.
Rated to 16 kg (35 lb) payload.
High strength-to-weight ratio.
Ball-Lock with Cam.
Very small package size.
Standard units feature (4) integrated pass-through air ports.
One (1) flat for mounting additional ATI utility modules.
"NP" versions available with port components removed on the Master.
Suggested Payload Limit:
35 lb
Static Moment Capacity (X & Y):
220 lbf-in
Static Moment Capacity (Z):
400 lbf-in
Positional Repeatability - (X, Y, & Z):
0.001 in
Weight - when coupled:
1.62 lb
Master Weight:
1.02 lb
Tool Weight:
0.6 lb
Pneumatic Pass-through Ports (qty) Size:
(4) 1/8 NPT
| Weight | 3.00 LBS | 3.00 LBS |
SKU: IP04898
UPC: 646412791817
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 646412791817
Manufacturer: ATI
Shelf: D-10 Tub 1
Model: MC 16RM
MPN: MC 16RM
