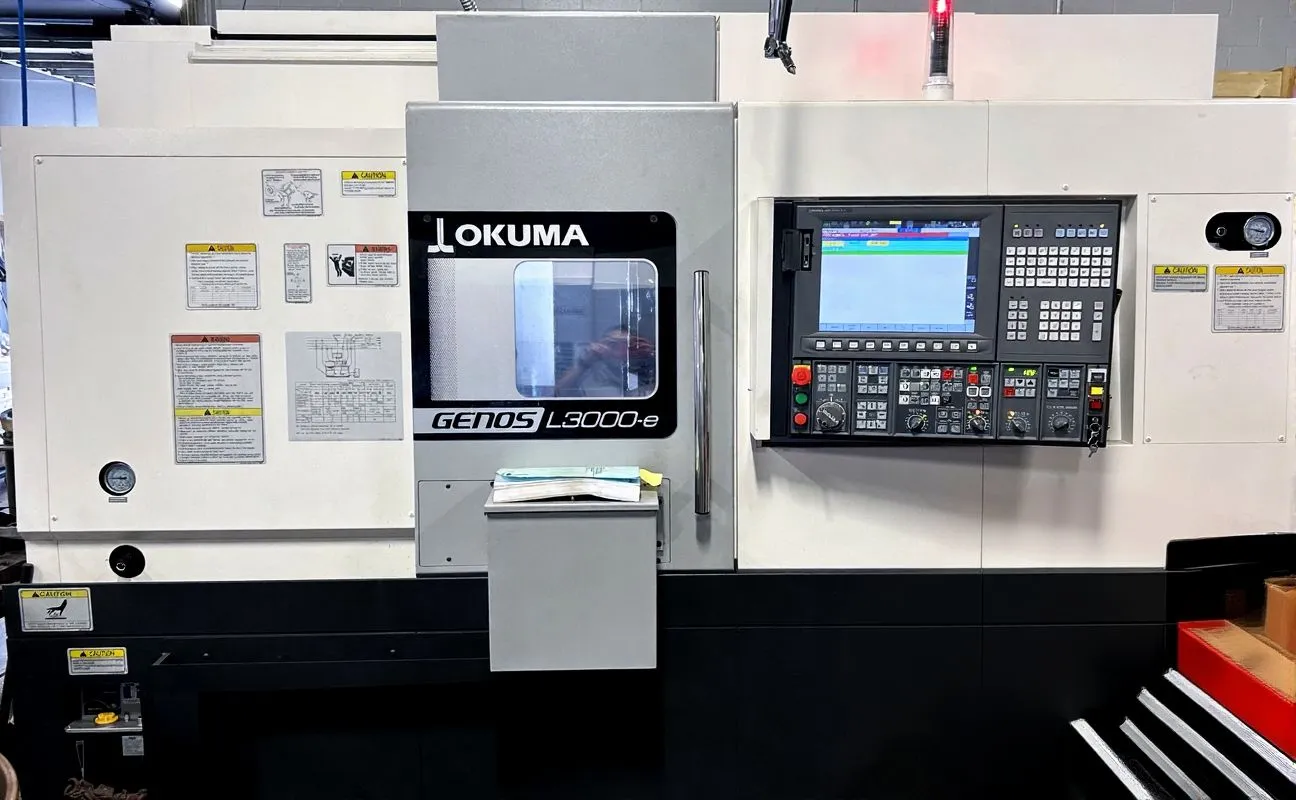

USED 2023 OKUMA GENOS L3000MYW
Overview
Description
Elevate your shop with the 2023 OKUMA GENOS L3000MYW. This high-performance CNC Lathe features Live Tooling, a Y-axis, and a Sub-Spindle for 1-hit machining. Driven by the OSP-P300LA control, it delivers unmatched precision. Buy used CNC machinery with confidence. High-spec!
Specifications
| Swing | 20.47" | 519.94 mm |
|---|---|---|
| Turning Diameter | 15.35" | 389.89 mm |
| Turning Length | 37.4" | 949.96 mm |
| Chuck Size | 10" | 254 mm |
| Max RPM | 3,800 RPM | 3,800 RPM |
| Control | CNC (OSP-P3000LA-e) | CNC (OSP-P3000LA-e) |
Capacity
Swing over bed mm (in) ø520 (ø20.47)
Swing over saddle mm (in) ø400 (ø15.75)
Max turning dia mm (in) ø390 (ø15.35)
Max work length mm (in) ø950 (ø37.40)
Travels
X axis mm (in) ø235 (ø9.25)
Z axis mm (in) ø1,074 (ø42.28)
Y axis mm (in) ø100 (3.94) (ø+-50 (1.97)
C axis control angle deg 360 (0.001)
Spindle
Spindle speed min-1 38-3,800
Spindle nose type JIS A2-8
Spindle bore dia mm (in) ø80 (ø3.15)
Front bearing dia mm (in) ø120 (ø4.72)
Sub-Spindle
Speed min-1 50-6,000
Bore dia mm (in) ø53 (2.09)
Turret
Type Multitasking V12 Radial
No. of tools L / M: 12
Turret indexing time sec/index 0.1/1 Index
Milling Tool
Spindle speed min-1 Radial 45-6,000
Speed range Infinitely variable
Feed rates
Feed Rates m/min (ipm) X: 25, Z: 30, Y: 10 (82.03, 98.43 , 32.81)
Rapid traverse m/min (ipm) 12 (39.37)
Rapid traverse (C) min-1 200
Motors
Main spindle kW (hp) (20 min/cont) kW (hp) 22/15 (30/20)
Milling tool spindle kW (hp) 5.5/3.7 (7.5/5) (2 min/cont)
Axis drive (X) kW (hp) 2.8 (3.7)
Axis drive (Z) kW (hp) 3.5 (4.7)
Axis drive (Y) kW (hp) 2.9 (3.9)
Machine Size mm (in) 3,560 x 2,574 x 2,489 (140.16 x 101.34 x 97.99)
Weight kg (lb) 8,700 (19,140)
Equipped With
Parts Catcher
Chip Conveyor
Main Chuck 3-Jaw Kitagawa B210
Sub-Spindle Chuck 3-Jaw Kitagawa B206
Windows Operating System
Advanced One-Touch (AOT) Interactive Programming standard
120 GB Solid State Hard Drive
15" Color Multi-Touch Color Display
2 GB Ram Memory
2 USB Ports
3D Simulation
Advanced One Touch IGF P1 Lathe
Any Angle Chamfering
API Library
Chuck High / Low Pressure Detecting Switch
Ethernet Interface, 2 Ports
Extended Common Variables, 200 Sets
Inch / Metric Switchable
LAP-4
Load Monitor
Message Function
NC Work Counter
Okuma MT Connect Adapter
Rapid Traverse Override Switch
RS-232-C Interface
Spare M-Codes 4 Sets
Spindle Orientation, Electric Type
Tool Life Management
Tool Offsets, 32 Sets
Tool Wear Compensation
User Task II
Windows Operating System
Negative Tool Radius Compensation
*Specifications Subject to Buyer Verification.
