Overview
Type:
Welding Positioners
Manufacturer:
SILVESTRINI
Model:
SA 1 ORBIT EL T5 - 5 TON
Stock #:
V.02 12526
Description

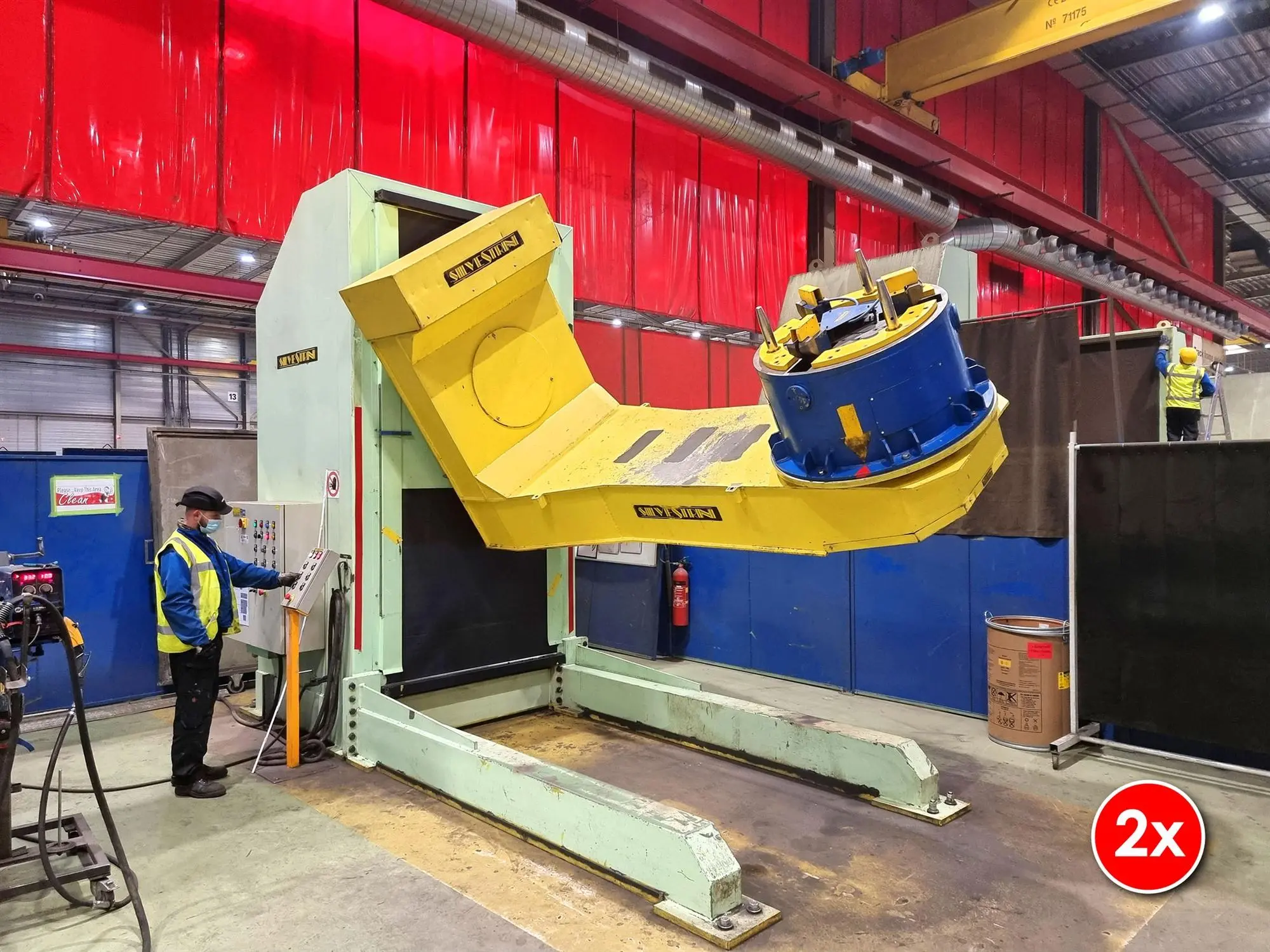

The positioner SILVESTRINI Mod. SA 1 ORBIT EL T5  are composed by:

HEADSTOCK Section

The structure in rugged electro-welded steelwork, supporting a motorized (horizontal axis) rotation system.

The rotation is given by a gear motor that, by means of a pinion, meshes with a large slewing bearing, to which is fixed the ORBIT Structure.

This section  is equipped with lateral precision guides to permit the ORBIT  vertical lifting movement.

The elevation is hydraulic, by means of hydraulic piston on which are inserted special clamping safety valves, that prevent the fall of the table, in case of  accidental breakage of  tubes.

On the horizontal axis is installed an electric rotating joint for the connexions with the Orbit  table (vertical axis). This permits the total axes free rotation.

MECHANICAL STRUCTURE ( ORBIT)

It Is constructed in rugged electro-welded  steelwork and holds a rotating table (motorized like the over mentioned headstock) that will support thу working pieces in

high accuracy.

A special bronze rotary earth connection (Silvestrini patent) transmits welding current.

Technical specifications related to the workpieces:

Cap: 5 ton

Table dia: 1000 mm

Max rotation speed of the table: 1 rpm

Lifting stroke: 1000 mm

Lifting speed: 700 mm
