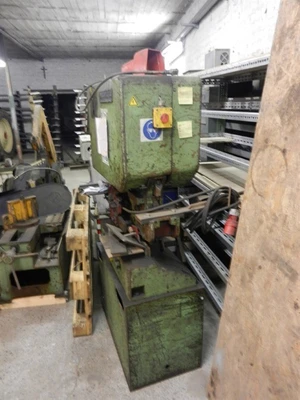

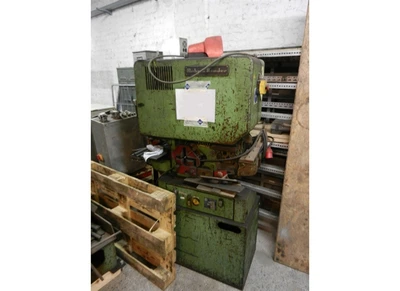

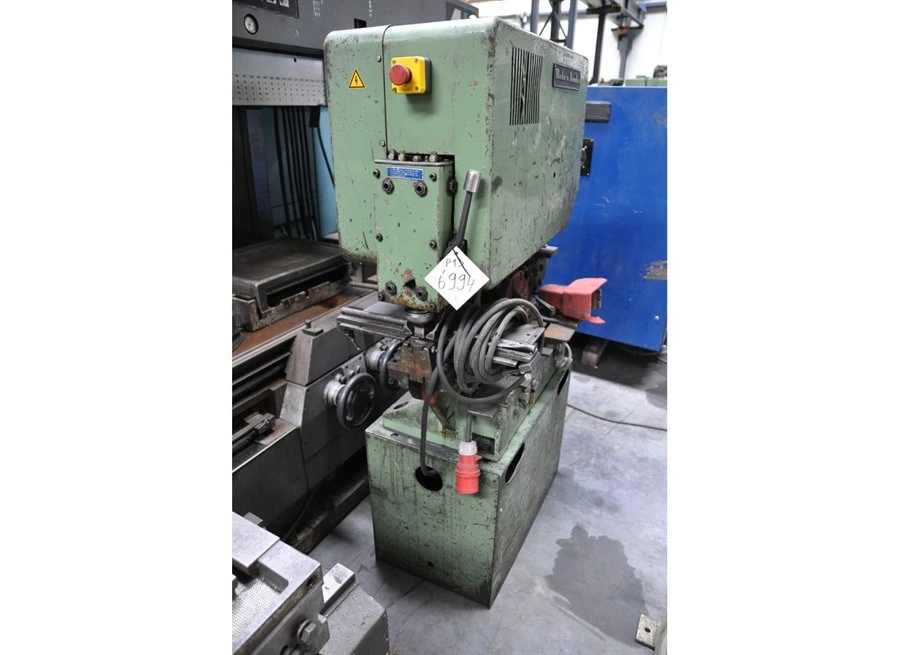

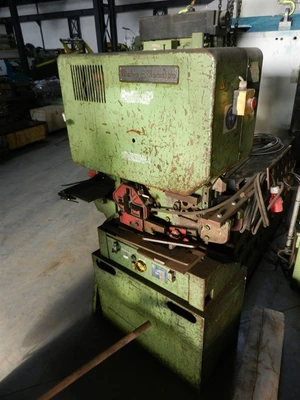

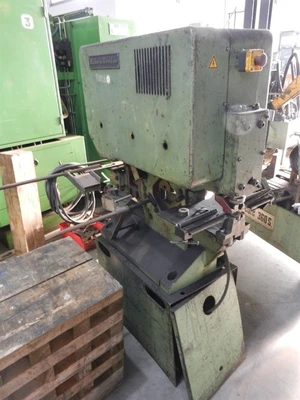

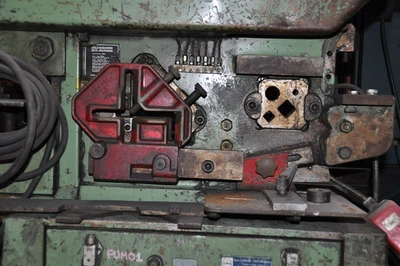

Combined punching and notching
cut pieces of steel sections
pressure range: 35 ton
knife length 180 mm
150 x 13 mm flat material
30 mm rounds
28 mm square bar
Release mechanism for material up to 10 mm
hole punch 350 kN - 200 mm
length stop
Punchingcapacity: 35 ton
Max hole dia.: 200 mm
Max cutting-thickness in plate: 150 x 13 mm
Blade length: 180 mm
Cut to length round/square: 30/28 mm
