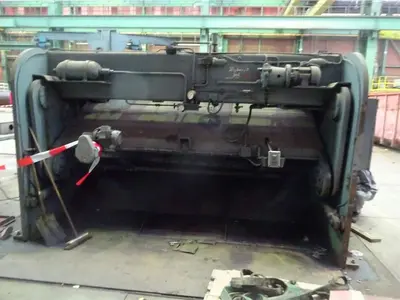

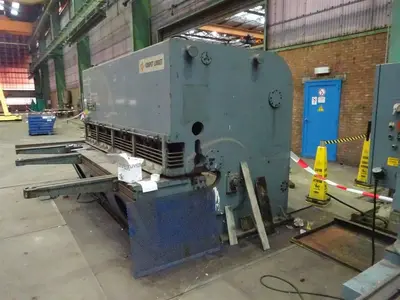

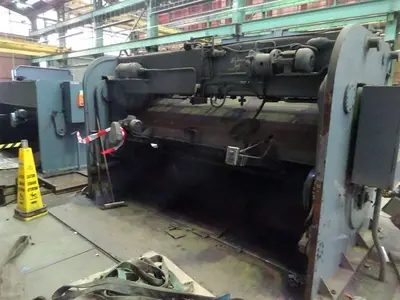

USED CORPET LOUVET CC 3050 X 15 MM
Overview
Description

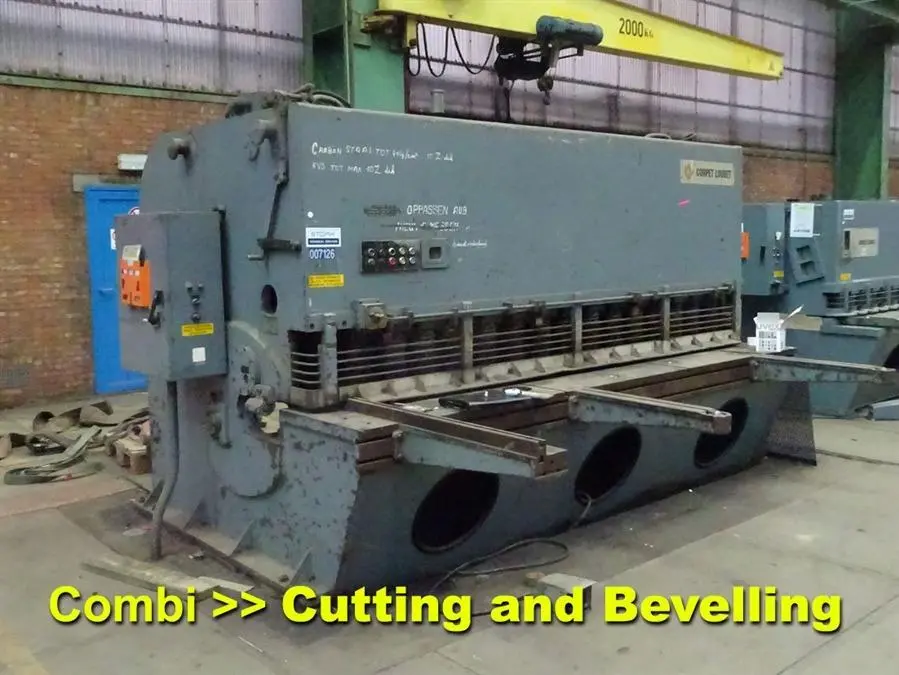

double option: cutting & bevelling - first cut = normal cut / second cut = angled cut for welding
- max angle of bevel: 30°
- max thickness for bevelling at full length: 12 mm
cissor-shaped turnbuckle
Specifications
Cutting length: 3050 mm
Max sheet thickness st 45: 15 mm
Depth of throat: 300 mm
Adjustable cutting device: 0,2 - 1,2 mm
Adjustable cuttingedge: 2°9' / 2°26'
Electric motor (power): 40 hp
Length: 4070 mm
Depth: 2260 mm
Height: 2315 mm
Weight: 14 ton
