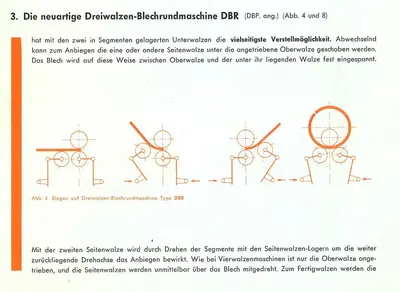

Lower rolls are individual movable for prebending!
Cap: 4000x40 @ rolling Ø 1000mm
Cap: 2500x60 @ rolling Ø 1000mm
Cap: 3000x60 @ rolling Ø 2000 mm
+ gear box length 4000 x width 2000 x height 3000 mm
80 kW power on main roll
30 kW power on siderolls
Weight of chassis: +- 18 ton
Weight of rolls: +- 30 ton
Weight of gearbox: 14 ton
Number of rolls: 3 Rolls
Roll capacity cold: 4000 x 40 / 60 mm
Type: (1) Mechanical
Roll dia upside: Ø 570 mm
Dia under roll - side rolls: Ø 520 mm
Length: 9000 mm
Depth: 4500 mm
Hight: 3600 mm
Weight: 62 ton
Pre-bending: Yes
