Overview
Transfer Presses

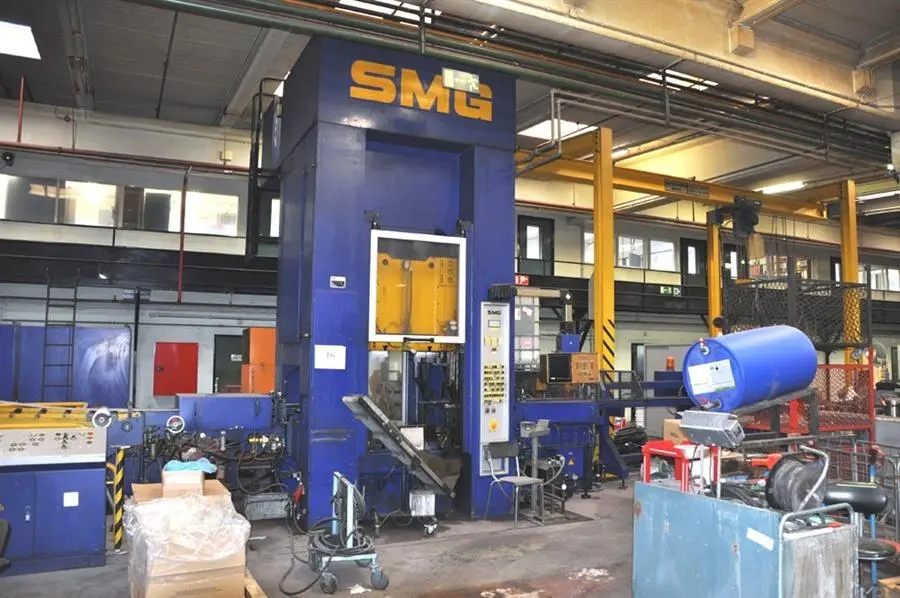

SMG200 TON CNC

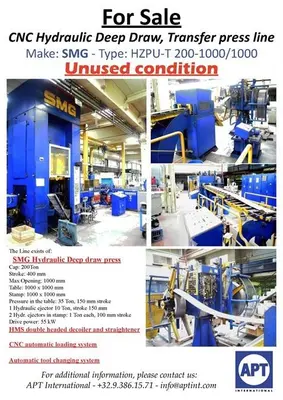

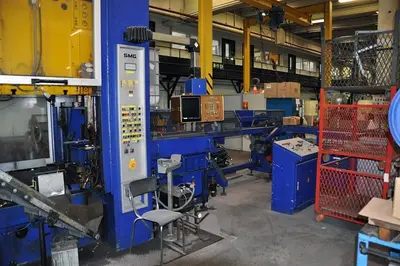

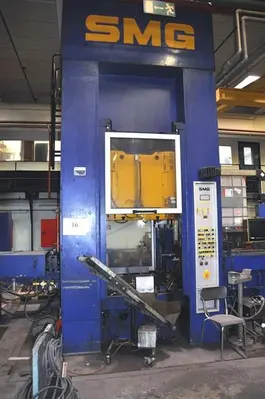

CNC Hydraulic deepdraw- & transfer press line

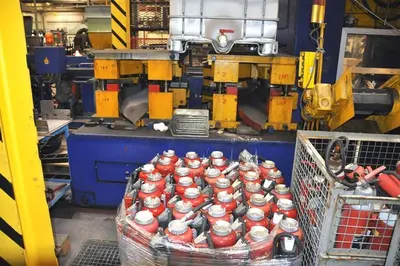

!! 4 dies available: 2 in use & 2 reserve !!

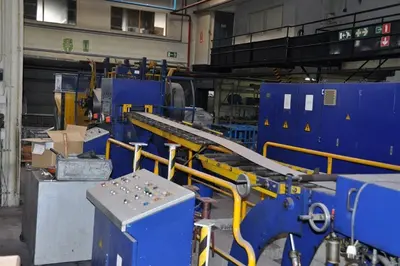

Equipped with HMS doublehead decoiler and HMS straightener

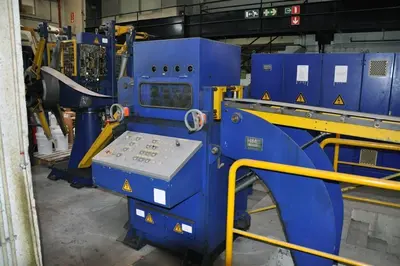

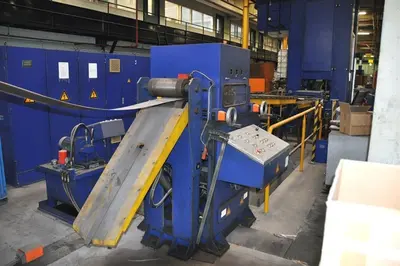

> HMS Straightener RS 87-03/0

max bandwidth: 300 mm

7 straightening rolls at Ø 80 mm

2 (pneumatic) drawing rolls at  Ø 120 mm

speed: 2-10m/min

bandthicnkess: 0,8 - 3 mm

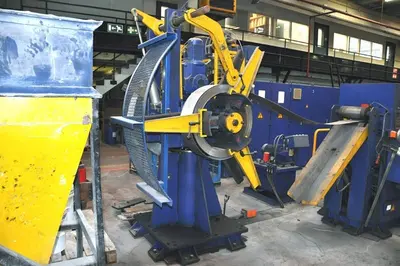

> HMS decoiler BA 3.3-03/040

max bandwidth: 300 mm

max coilweight: 4 ton

inner coildia:  Ø 508 mm

outer coildia:  Ø 1500 mm

hydraulic system: 2,2kW - 100 bar - 11l/min

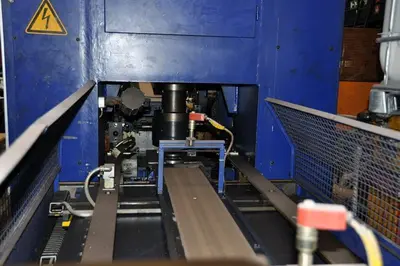

> Automatic CNC Feeder (HMS PSV-3-S0)

> Automatic toolchangingsystem

Stroke in table: 150 mm

Stroke in cushion: 100 mm

Specs

Capacity: 200 Ton
Max adjustable stroke: 400 mm

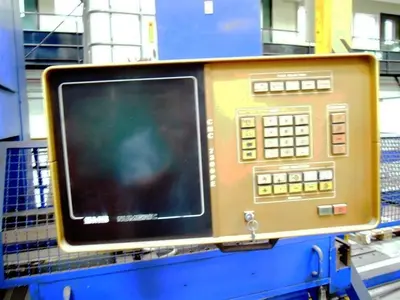

Control: CNC
Passage between uprights: 1100 MM
Distance between table -- ram: 1000 mm
Dimension of the table: 1000 x 1000 mm
Ram area: 1000 X 1000 MM
Courant needed: 55 Kw
