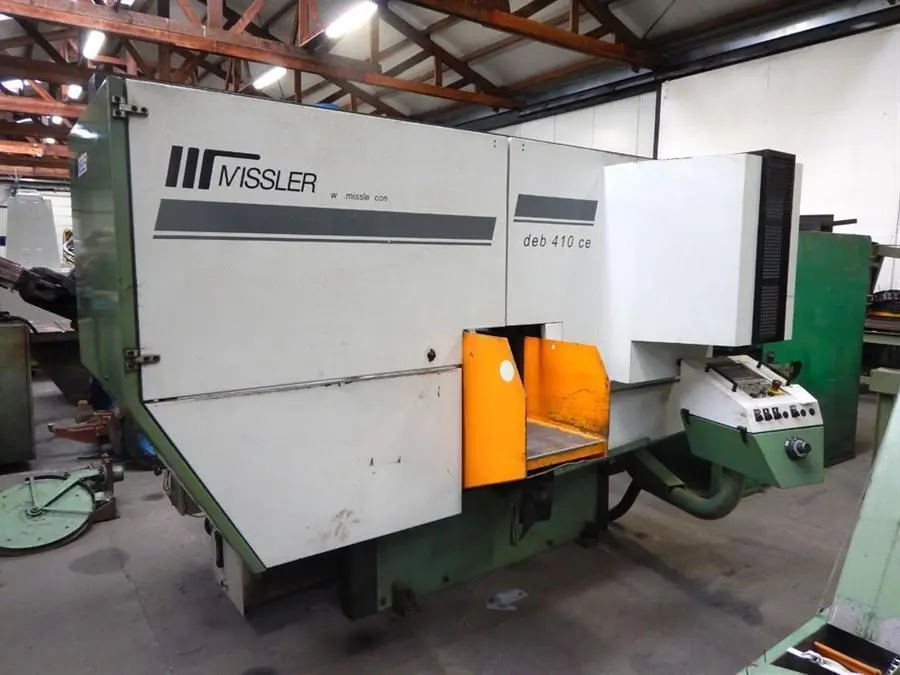

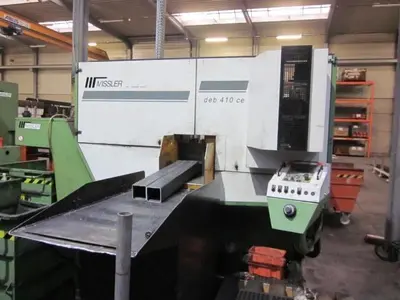

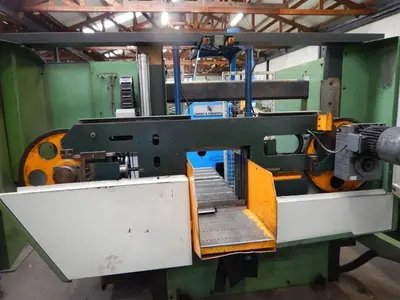

Type: Deb 410
Features:

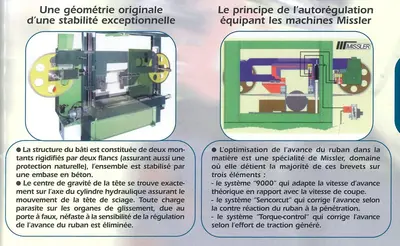

- Torque control: measures the torque required by the cutting action. If the loading is excessive, it instantly interacts with the hydraulic circuitry to reduce the feed rate to the optimum cutting conditions relative to the material cross-section and the condition of the saw blade.
- System 9000: this enables the operator to select the cutting speed (feed movement) according to the kind of material to be cut. Simultaneously, the feed rate (getting into the material) adjusts itself automatically in order to generate the optimal chip thickness. Still, for specific application, the operator has the possibility to adapt the production rate, increasing or decreasing it.
- The efficiency of the devices fitted on the machines, series deb, enables the use of blade possibilities to the maximum without ever exceeding them, entailing long-lasting productivity and precision.

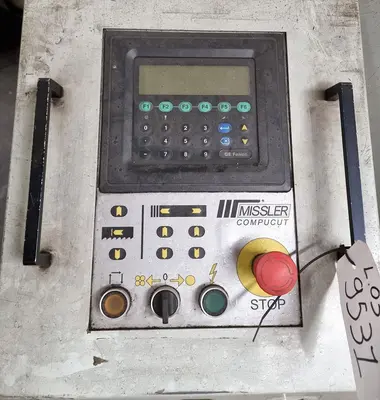

CNC control: GE Fanuc
Bundle clamping

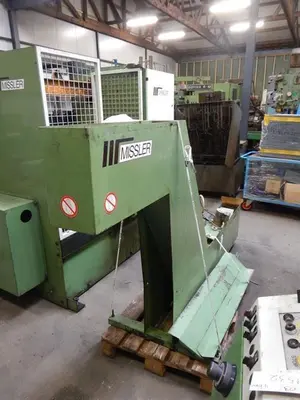

Chip conveyor
Parts counter
Multi feeding
Depth of throat: 410 mm
Max height of workpiece: 410 mm
Sawspeed: 10 > 200 m/min
Length of band saw: 41 x 1,1 x 5940 mm
Power needed: 8,7 kW

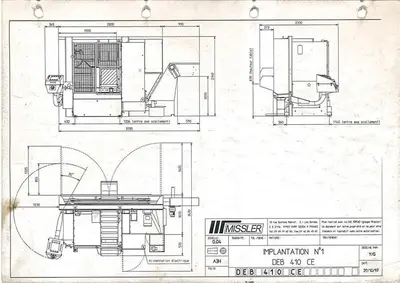

Length: 2800 mm
Depth: 2100 mm
Height: 2150 mm
Weight: 4 ton
