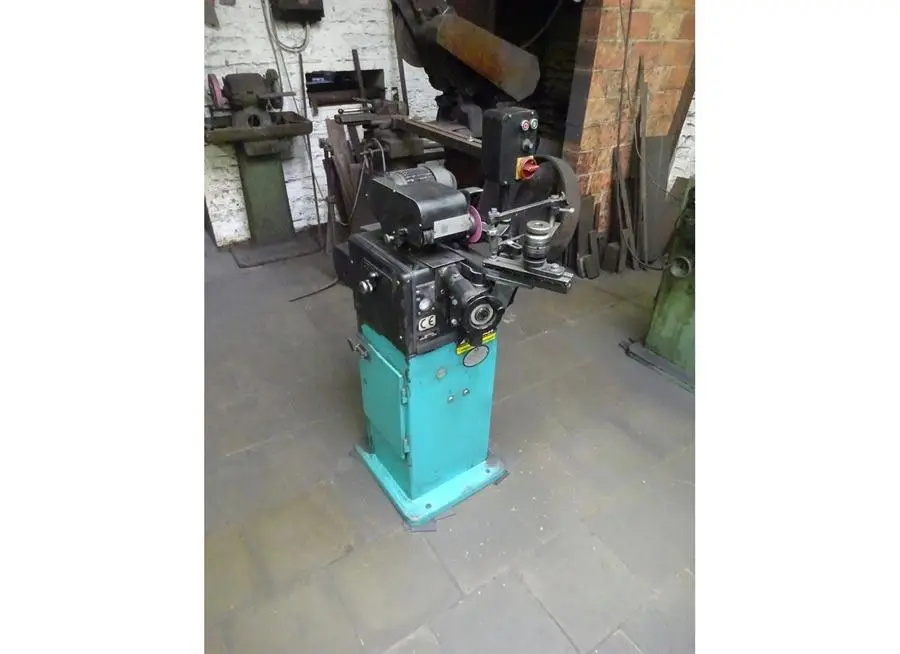

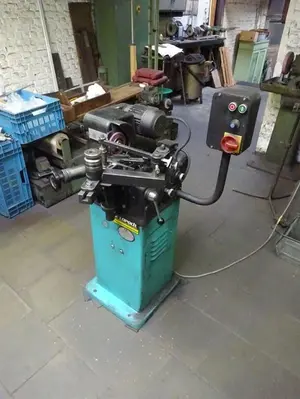

sawblade grinder
tooth pitch: up to 20 mm
blade thickness: up to 8 mm
tooth height: up to 8 mm
sawblade width: 10 > 60 mm
sawblade length: up to 600 mm
operating speed: 45-180 teeth/min
grinding wheel: dia 150 mm x 25 mm
Max dia: 22 > 450 mm
Tension needed: 1 kW
Length L -- R: 680 mm
Depth Fw --Bw: 655 mm
Height: 1205 mm
Weight: 140 kg
