Overview
Bed Type Mills
INNSEINT & EXT MILLING Ø 9800 MM CNC

Type: TVM 450/5

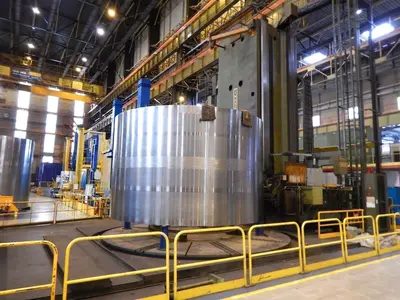

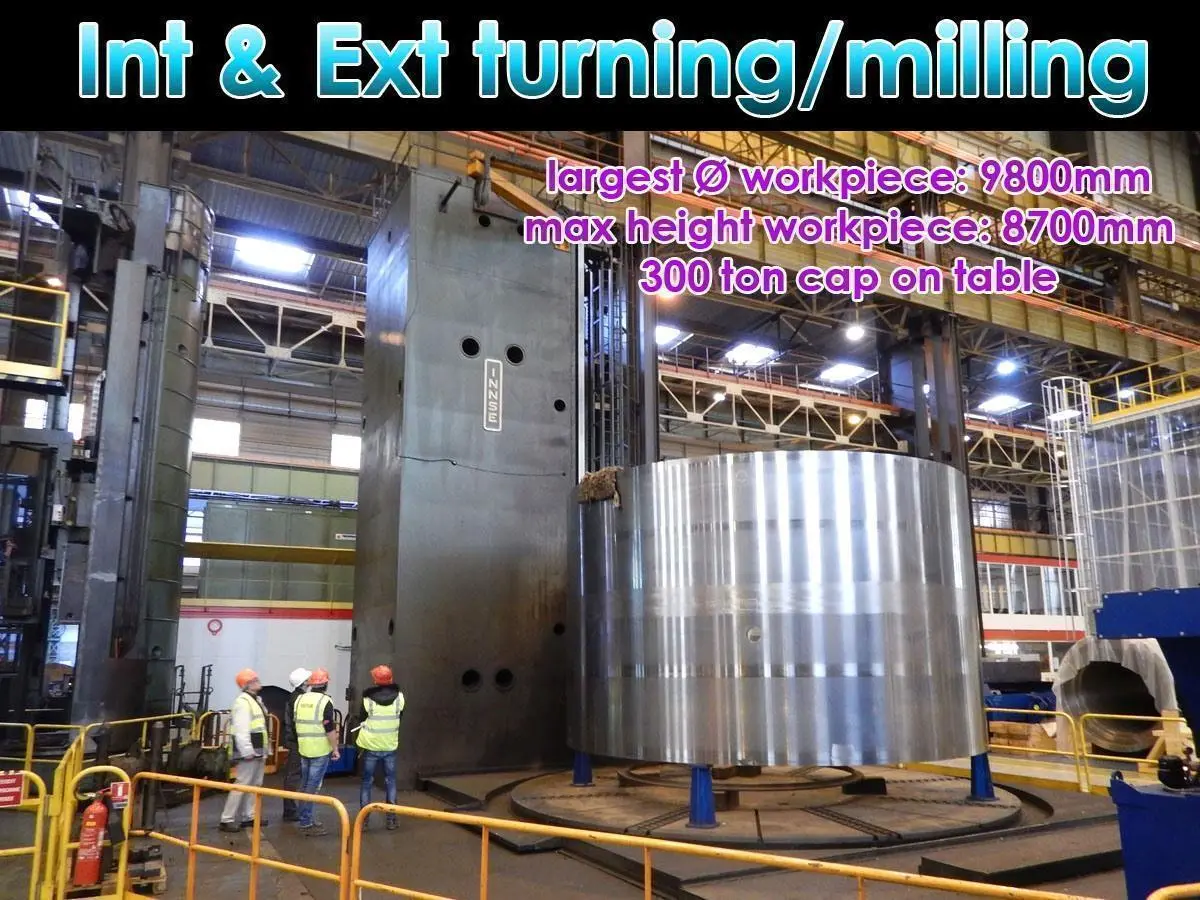

Exceptional milling machine & turning vertical lathe that can machine very large workpieces. Both the inner and outer diameter of the workpieces can be machined!!

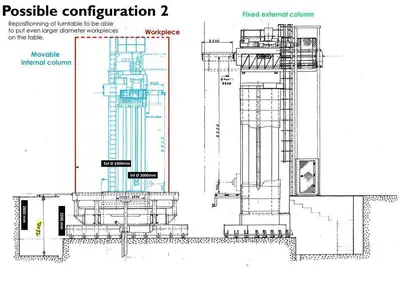

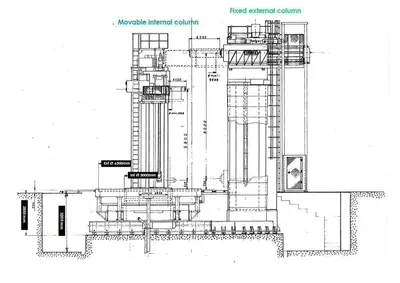

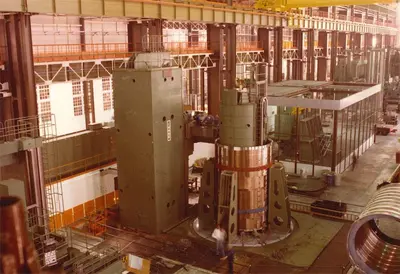

The machine consists of a fixed outer column and a movable inner column.

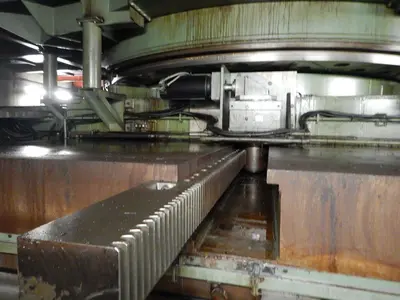

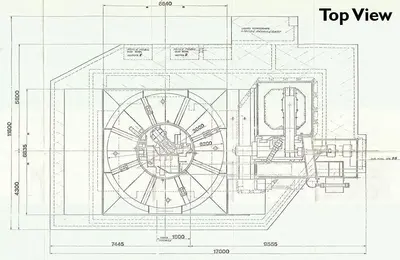

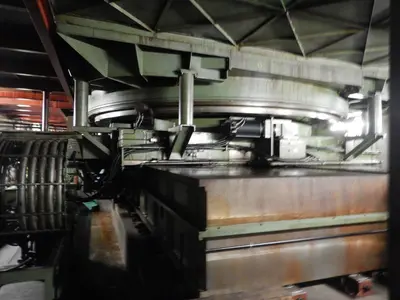

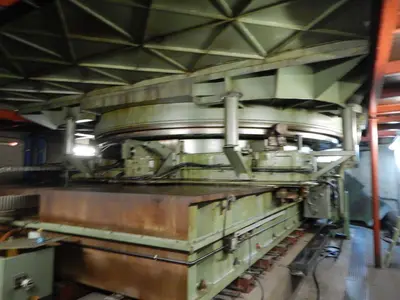

Turntable:
> outer diameter: 6300 mm
> inner diameter: 3000 mm
> largest diameter of the workpiece: 9800 mm
> smallest diameter of the workpiece: 2220 mm
> max weight on table: 300 tons
> rotation speed: 0.08 > 27 rpm
> rotational speed when turning/milling: 0.000058 > 1.4 rpm

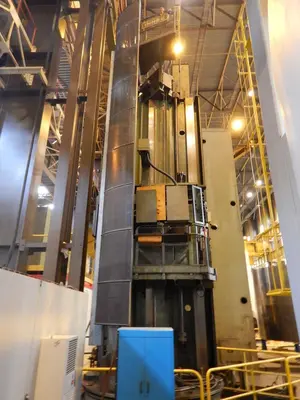

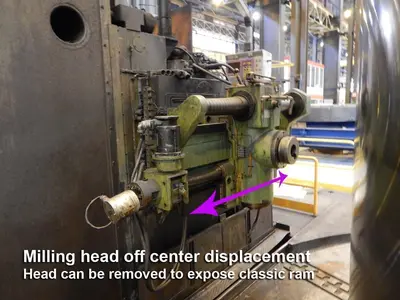

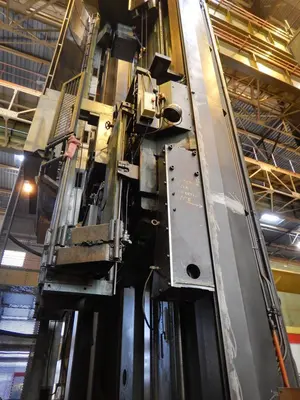

Fixed external column:

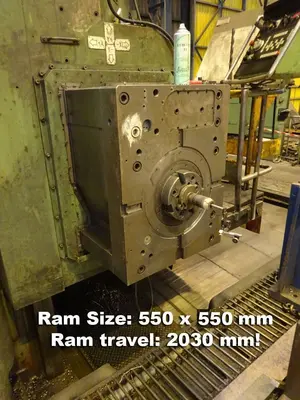

> ram dimensions: 550 x 550 mm
> diameter of the spindle: 304.8 mm
> ISO 60 - 37 kW on spindle
> maximum height of external turning/milling: 8700 mm
> min. height of external turning/milling: 700 mm
> vertical stroke: 8000 mm
> horizontal stroke: 2030 mm

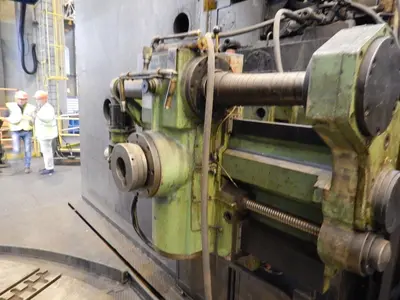

Movable inner column:
> ram size: 280 x 280 mm
> max. diameter of internal turning/milling: 5180 mm
> min. diameter of internal turning/milling: 3048 mm
> max. height of internal turning/milling: 5800 mm
> min. height of internal turning/milling: 615 mm
> vertical stroke: 5800 mm
> horizontal stroke: 1120 mm

Spindle speeds: 1.2 > 601 rpm
Total power: 250 kW
5-axis CNC control
