Overview
Type:
Bed Type Mills
Manufacturer:
ELUMATEC
Model:
SBZ 140 - X: 7900 - Y: 850 - Z: 650 MM
Stock #:
B.04 12853
Description

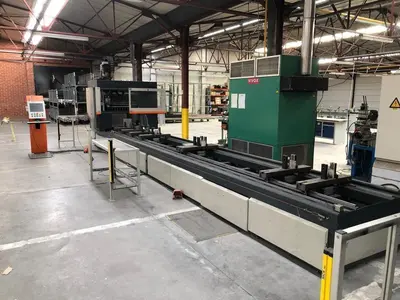

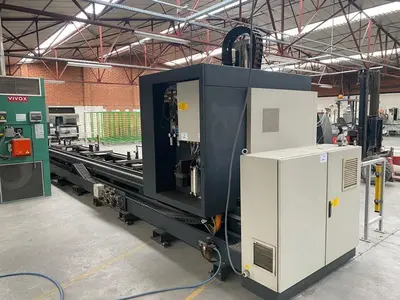

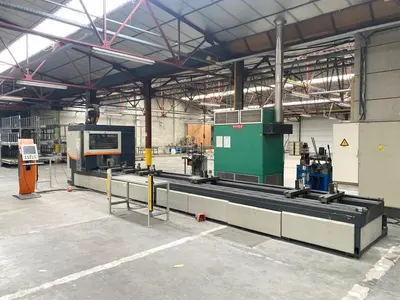

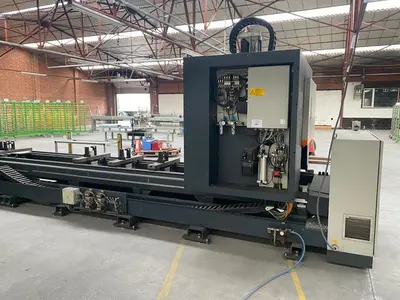

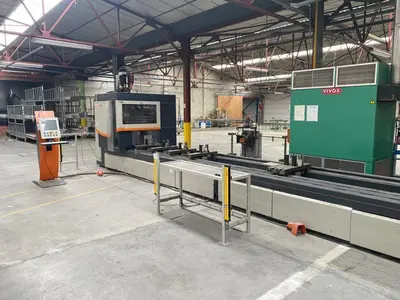

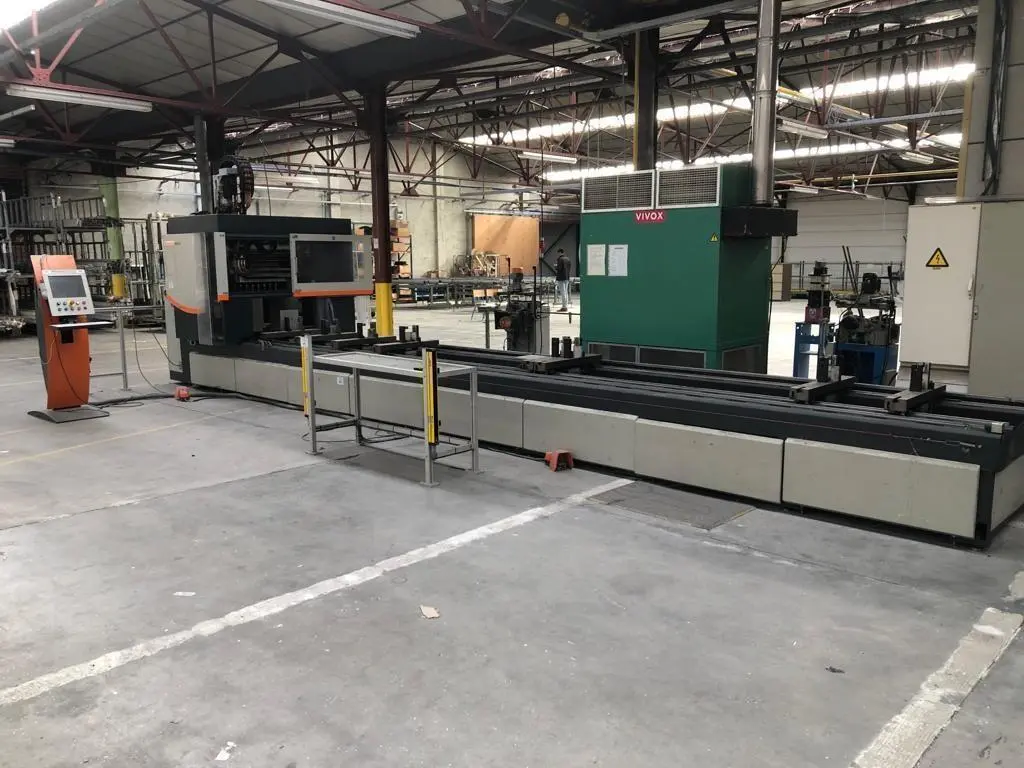

- 4-axis industrial profile machining center - type SBZ 140
- Can edit up to 5 sides of a profile
- Machining options: drilling, machining and tapping
- Maximum machining length with profile head machining: 7480 mm
- Maximum machining length without profile head machining: 7600 mm

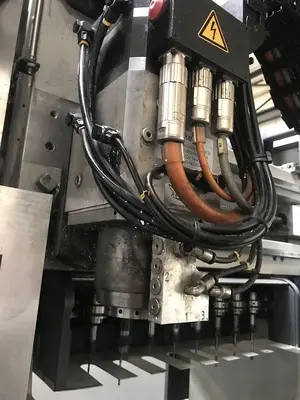

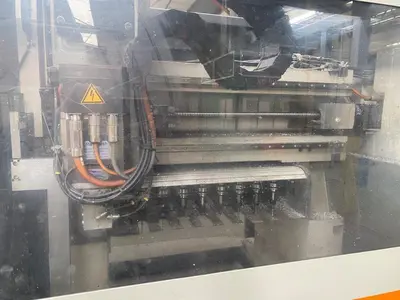

- The axis-controlled milling head can machine the profile continuously at any position between 0° and 180° with all available tools

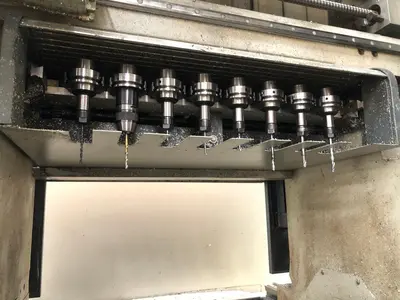

- 8 tools

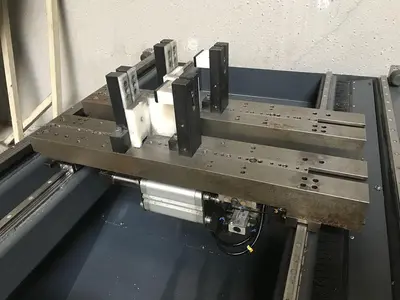

- 8 movable clamps
- barcode reader
Implementation Software new control 2025
> Version: 9.1.1.10 / 2.31e

automatic profile measuring system
> 2 extra clips complete material

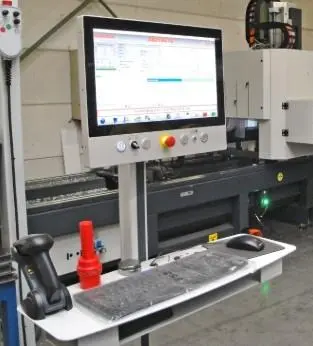

remote control console for SBZ 140
> 8x adjustable clamping material
> automatic detection of the clamp position
> automatic positioning of terminal equipment
microdosing system (tool lubrication)
safety cover
safety light
central chip removal
> 2x pneumatic zero attack
> separate clamping system (shuttle)
- Angle: +90° & -90°

New price was 189,000 euros

Specifications

Longitudinal travel X-axe: 7900 mm
Crosstravel Y -axe: 850 mm
Travel Z-axe (Height): 650 mm
Power on spindle: 6 kW
Admission in millingheadspindle (ISO): HSK-63 F
Max speedrange: 24 000 rpm

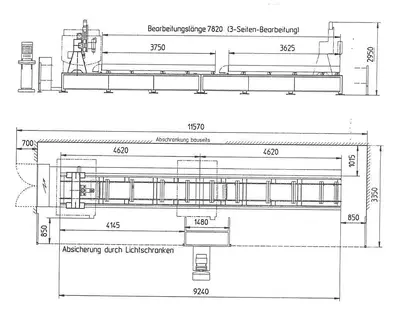

Length: 11 400 mm
Depth: 3350 mm
Height: 2950 mm
Weight: 4,9 ton
