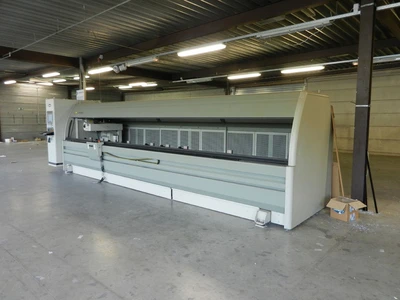

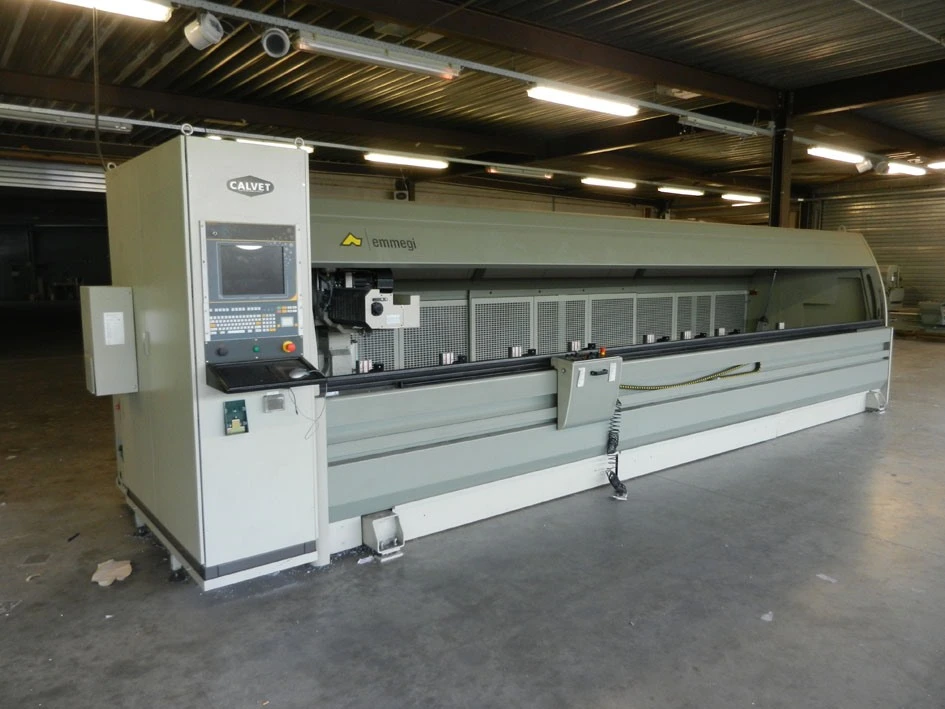

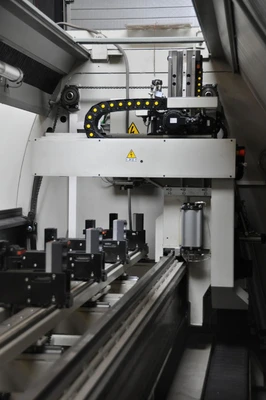

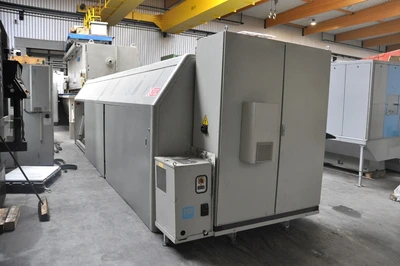

USED EMMEGI COMET ISOLA
Overview
4 axes - suitable for alu/pvc/steel
Cam editor version 3.63 / Drill version 3.9
max workpiece size machinable on 1 face, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 240 x 170 x 7500 mm
max workpiece size machinable on 3 faces, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 195 x 170 x 6300 mm
tapping capacity: M10
manual positioning/unloading
workpiece reference stop with N/C positioning

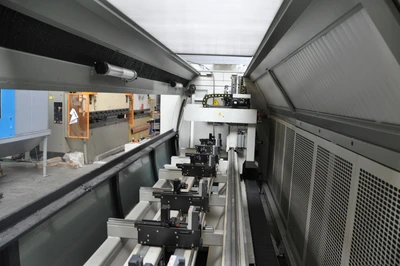

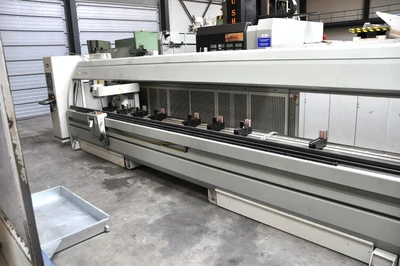

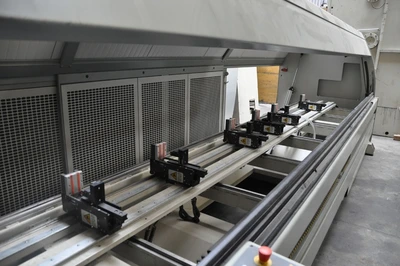

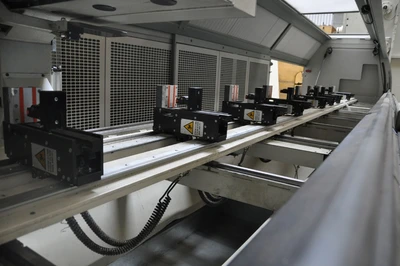

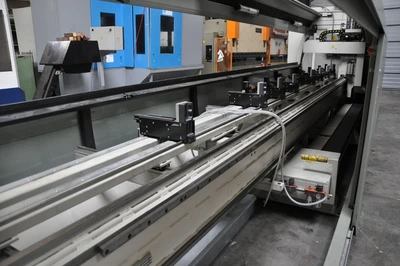

8 pneumatic vices
automatic vice positioning through X-axis
Specs

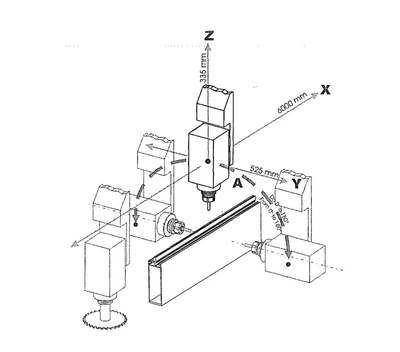

Longitudinal travel X-axe: 6300 mm
Crosstravel Y -axe: 525 mm
Travel Z-axe (Height): 335 mm

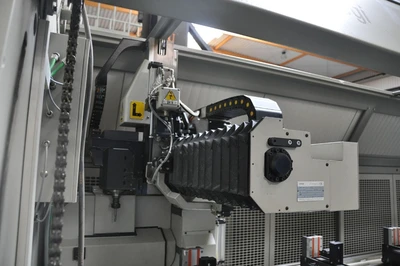

Power on spindle: 5,5 kW
Admission in millingheadspindle (ISO): HSK-40E
Max speedrange: 24 000 rpm

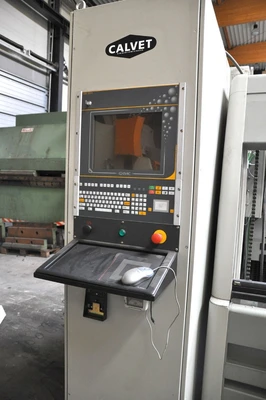

Control: CNC-PC
Power needed: 23 kW
Length: 8210 mm
Depth: 2065 mm
Height: 2120 mm
Weight: 4800 kg
ACCESSORIES & TOOLING: 8 + 1 tools
