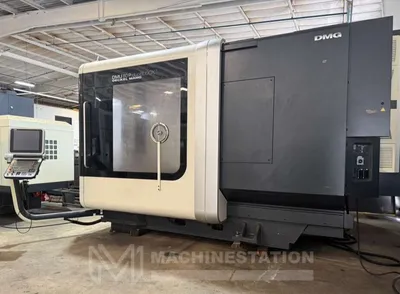

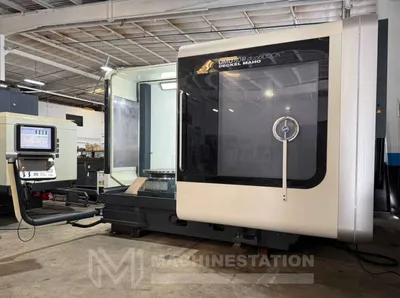

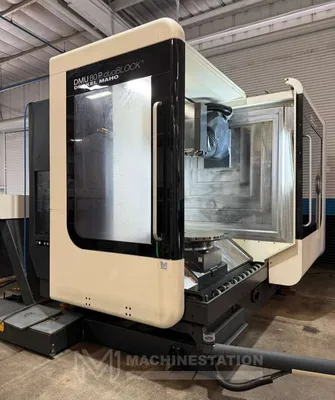

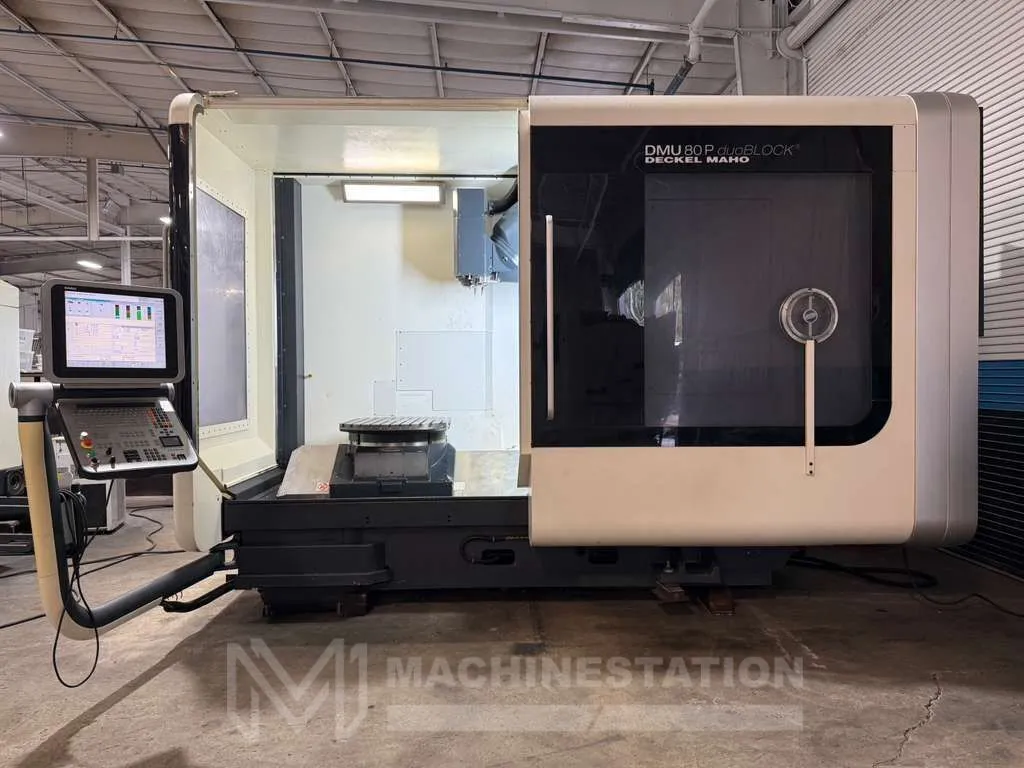

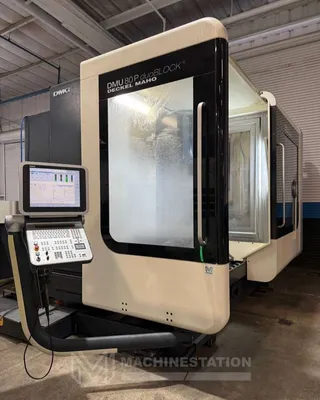

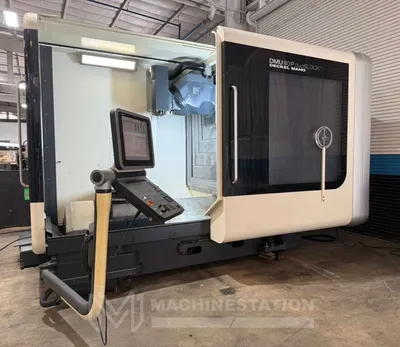

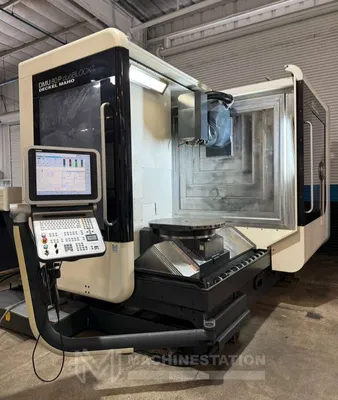

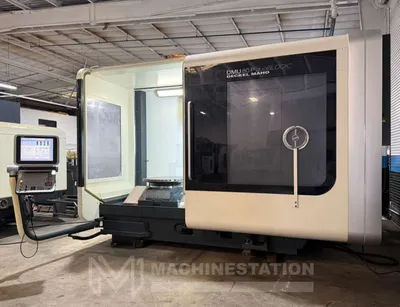

USED 2009 DMG DECKEL MAHO DMU 80P DUOBLOCK
Overview
Specifications
| X | 31.5" | 800.1 mm |
|---|---|---|
| Y | 31.5" | 800.1 mm |
| Z | 31.5" | 800.1 mm |
| # Axis | 5 | 5 |
| Power | 25 hp | 18.6 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 27.6" | 701.04 mm |
| Table-L | 35.4" | 899.16 mm |
| Control | CNC (Heidenhain ERGOline iTNC 530) | CNC (Heidenhain ERGOline iTNC 530) |
| Dimensions | 200" x 102" x 130" High Approx. | 200" x 102" x 130" High Approx. |
| Weight | 30,865 lbs Approx. | 30,865 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

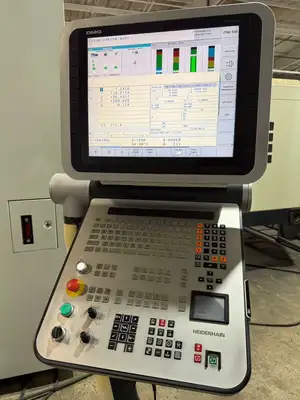

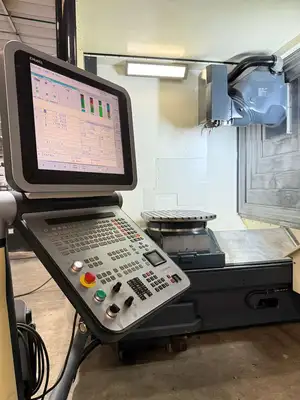

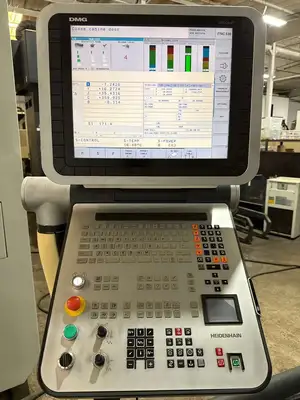

Heidenhain ERGOline iTNC 530 CNC Control
21,332 Hours Operating Time
Linear Ways Construction
5-Axis Simultaneous Machining
Spindle Orientation
Helical Interpolation
Rigid Tapping
Travels:
X-Axis Travel: 31.5″
Y-Axis Travel: 31.5″
Z-Axis Travel: 31.5″
B-Axis Swivel Range: 0° – 190°
C-Axis Rotation: 360°
Rapid Traverse (X/Y/Z): 2,362 Inches Per Minute
Feed Rate: 2,362 Inches Per Minute
Table:
Table Size: 35.4″ Diameter × 27.6″ Depth
Maximum Table Load: 3,086 lbs
Rotary Table Speed (C Axis): 30 RPM
Spindle:
Spindle Speed: 18,000 RPM
Spindle Taper: CAT-40
Spindle Power: 25 HP
Swivel Range (B Axis): 0° – 190°
Swivel Time: 1.2 Sec

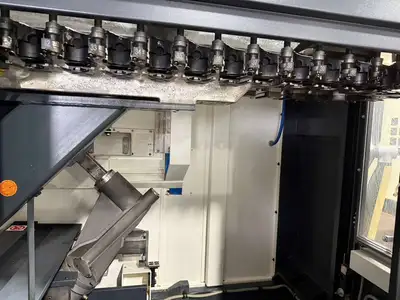

Automatic Tool Changer:
Tool Capacity: 40 Tools (Chain Type)
Chip-to-Chip Time: 5 Seconds
General:
Power Requirement: 400V / 60 Hz / 3-Phase / 64 kva
Machine Dimensions: 200" x 102" x 130" High Approx.
Machine Weight: 30,865 lbs Approx.
Equipped With

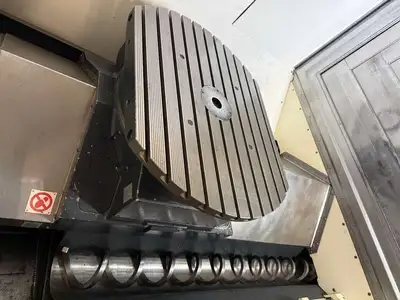

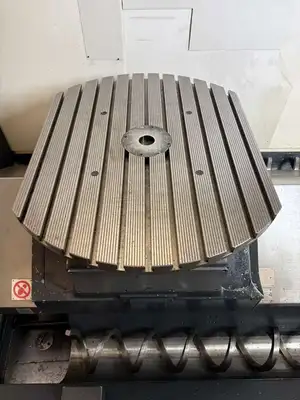

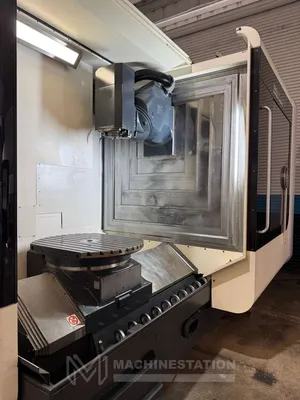

35.4" x 27.5" Rotary Table
NC-Controlled Swivel Milling Head (B-Axis)
18,000 High Speed Spindle
40 Station Automatic Tool Changer
Renishaw OMP60 Tool Probe

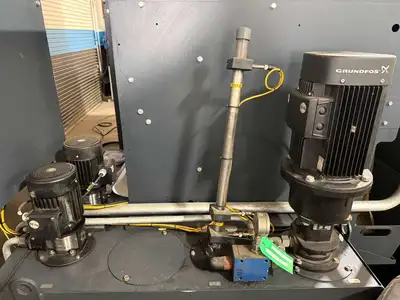

Through Spindle Coolant
High Pressure Coolant

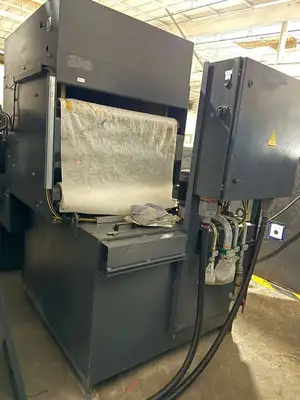

Coolant Filtration
Spindle Chiller

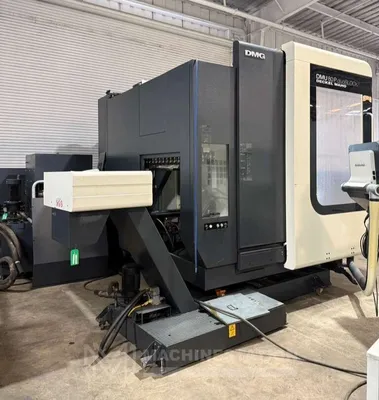

Chip Conveyor
