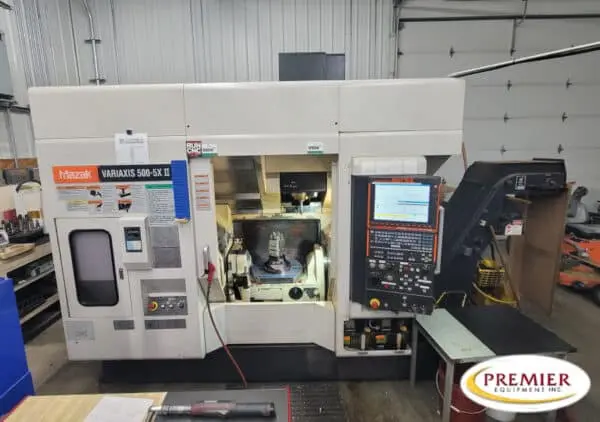

Mazak Variaxis 500-5X-II – 2007

Mazak Variaxis 5005X-2 5-Axis CNC Vertical Machining Center

Table Size…………………………. 19.69″ x 15.75″

Floor Space Required………………… 110″ x 116″ x 111”

Machine Weight……………………… 16,500 lbs.
TRAVELS

X-Axis Travels……………………… 20.08″

Y-Axis Travels……………………… 20.08″

Z-Axis Travels……………………… 18.11″

A-Axis Travels……………………… -120 Deg – +30 Deg (axial control)

C-Axis Travels……………………… +/- 360 Degree (axial control)

Distance Spindle Nose/Table Top………. 7.48″ ~ 25.59″

(Table Horizontal)

Distance from Spindle Nose to the Table Center 5.51” to 23.62”

(Table Vertical)
WORKPIECE SIZE

Maximum Table Load………………….. 661 lbs.

Maximum Workpiece Size….(L/W)……….. 19.5 x 15.95

Maximum Workpiece Height…………….. 15.95
SPINDLE

Spindle Nose……………………….. #40

Spindle Horsepower (Cont/30 Min)……… 30/20 HP

Spindle RPM………………………… 12,000 RPM
AUTOMATIC TOOL CHANGER

Magazine Capacity…………………… 40

Mazatrol Matrix Control
Full 5-Axis
SuperFlow 1000 PSI Thru Spindle Coolant
Chip Conveyor
CAT40
Probe
ATLM
40 ATC
