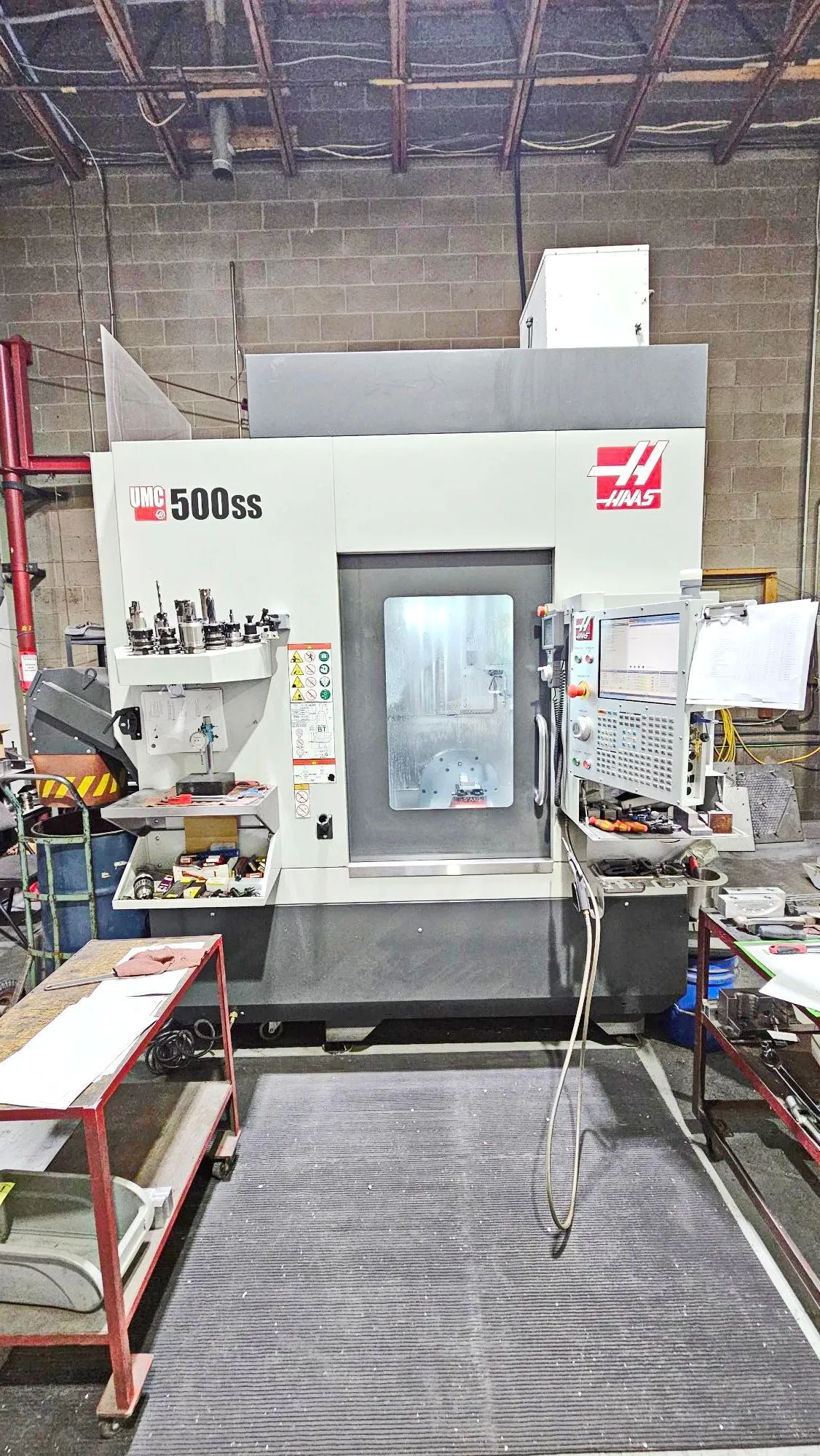

2021 Haas UMC-500SS 5-Axis Universal CNC Machining Center, TSC, Renishaw Probing, 50+1 Side-Mount Tool Changer, Programmable Coolant Nozzle, High-Speed Machining, Mist Collector, Chip Conveyor
| X-Axis | 24" | 609.6 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 16" | 406.4 mm |
| B-Axis | +120° ~ -35° | +120° ~ -35° |
| C-Axis | 360° | 360° |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 51 | 51 |
| Taper | BT-40 | BT-40 |
| Spindle Nose to Platter | 20" | 508 mm |
| Platter Dia | 15.7" | 398.78 mm |
| Max Platter Load | 500 lb | 226.8 kg |
| Rapid Traverse (X/Y/Z) | 1,200 in/min. | 1,200 in/min. |
| Made In | United States | United States |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 128" X 98" X 110" | 128" X 98" X 110" |
| Weight | 11,900 lb | 11,900 lb |
5-axis
Through spindle coolant (300 psi)
Programmable coolant nozzle
Renishaw probing system w/ WIPS
High-speed machining
MistAway mist extractor
50+1 side-mount tool changer
Chip conveyor
