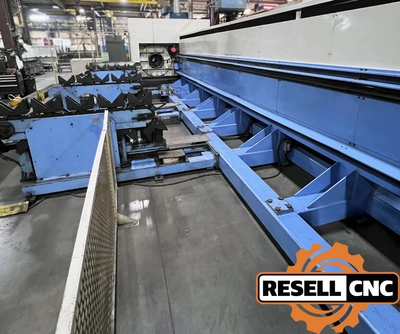

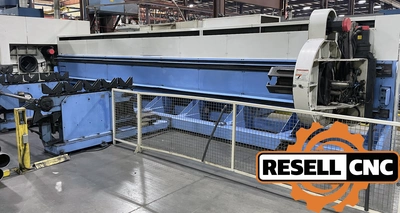

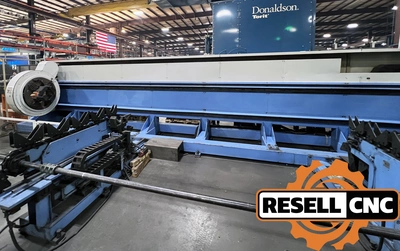

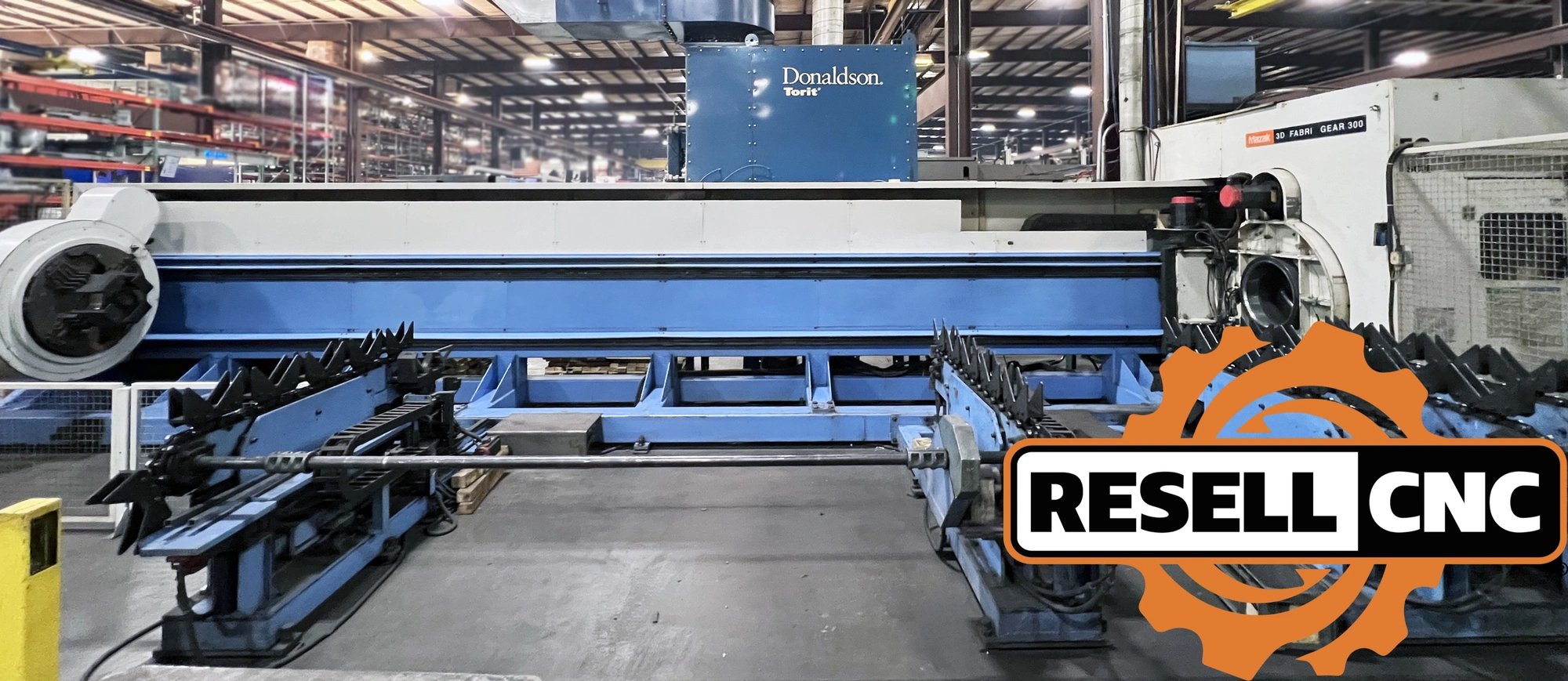

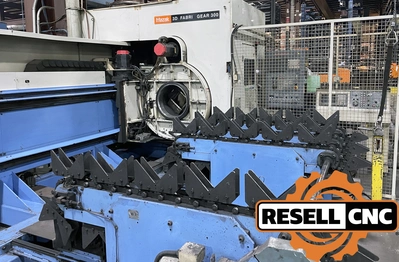

USED 2001 Mazak 3D Fabri Gear 300 Tube

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Specifications:

Cutting Head: 3D

Laser Type: CO2

Number of Programmable Axis: 6

Material Chucks: 4

Max Steel Cut Thickness: 0.500"

Rapid Traverse Rate (X , Y ,Z, C): 1181 /945/787 IPM - 6000 deg/min

Number of Material Chucks: 4

Material Unloading: -5 Stations

Material Loading: -3 Stations

Max Tube Weight: 1,058 lbs

Other Profile Capabilities I/H: Beam, Angle, Channel, Rectangle, T and Ellipse

Dimensional Tolerance: +/-.015"

Max Square Tube Size: 12"

Max Round Pipe Diameter: 12"

Min Material Diameter: .79"

Maximum Material Length: 26.2ft

B Axis: +- 135 deg

A Axis: +- 360 deg

X Axis Stroke: 344.5"

U Axis Stroke: 358.3"

V Axis Stroke: 91.14"

Y Axis Stroke: 50"

Z Axis Stroke: 14.57"

Axial Drive System X-AXIS: Rack & Pinion

Axial Drive System AC: Servo Motor, Digital Servo Drive

Axial Drive System Y, Z-axis: Ball Screw

Rapid Traverse Rate A, B: 9600 deg/min

8 Meter Infeed/8 Meter Outfeed System

Auto Load/Unload



Equipped With:

Resonator: 2,000 Watts

Auto Load/Unload

Auto Feed

Auto Profile Centering

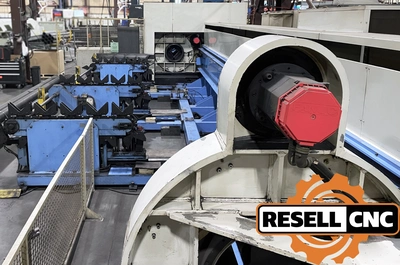

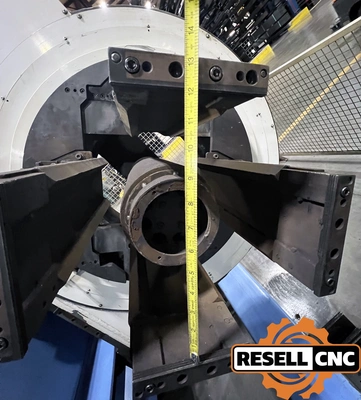

Work Piece Clamping Chucks

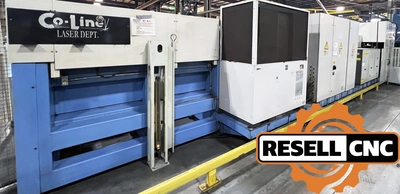

Chiller Unit

Dust Collector

B Axis: false
C Axis: false

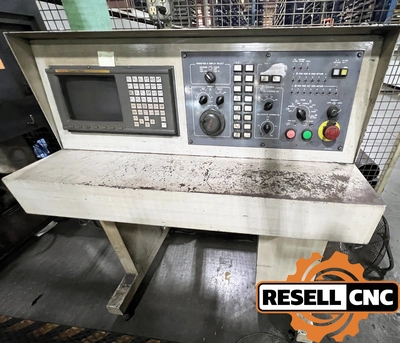

Control Make Model: Fanuc L-64 CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Watts: 2000.0
X Travel: 344.5
Y Axis: false
Y Travel: 50.0
Z Travel: 14.57
