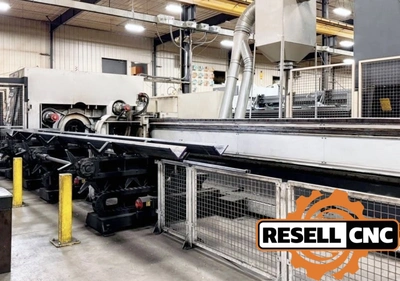

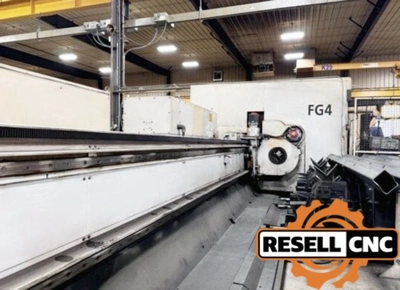

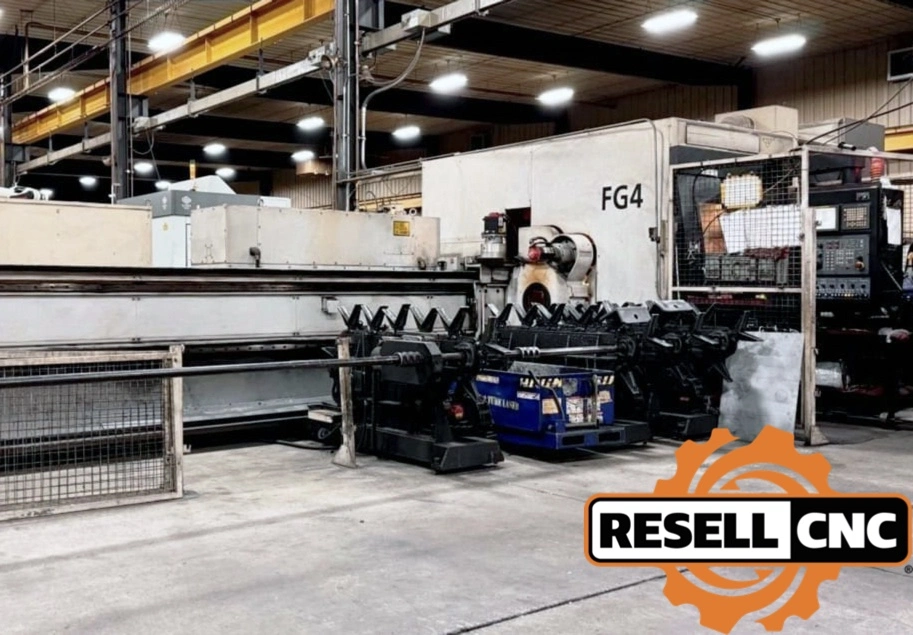

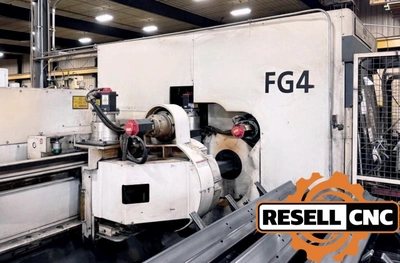

USED 2007 Mazak Fabri Gear 150 Tube
Overview
Specifications
X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Specifications:
Power Output: 2.5 KW

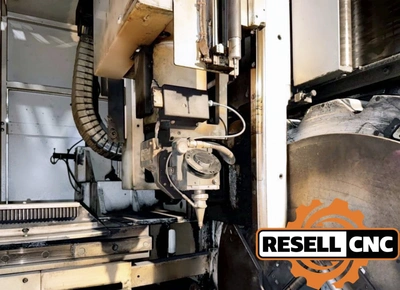

Cutting Head Type: 3D
Max Round Pipe Diameter: 6″
Max Material Length: 26′
Max Workpiece Weight: 728 lbs.
Number Of Programmable Axis: 6
Max Square Tube Size: 6″
Material Unloading: Automatic-5 Stations
Number Of Material Chucks: 4
X Chuck Left/Right: 352.6”
U Chuck Left/Right: 345.6”
V Chuck Left/Right: 91.14”
Y Head Back/Forth: 38.78”
Z Head Up/Down: 14.57”
A Head Rotation: ± 360 Degrees
B Head Swing: ±135 Degrees
Material Loading: Automatic-5 Stations
Other Profile Capabilities: C, I/H Beam, Angle
Equipped With:

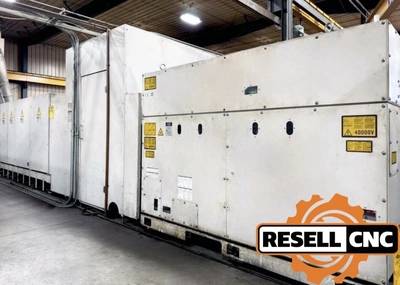

2.5 KW Resonator

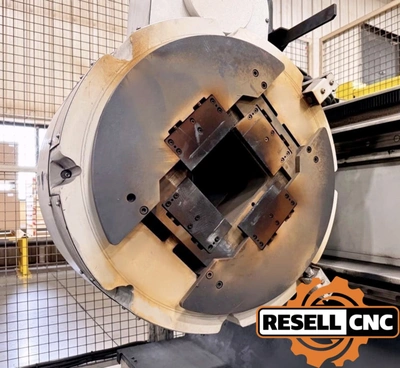

Work Piece Clamping Chucks
Auto Load/Unload
Auto Feed
Auto Pipe Measurement
Auto Profile Centering

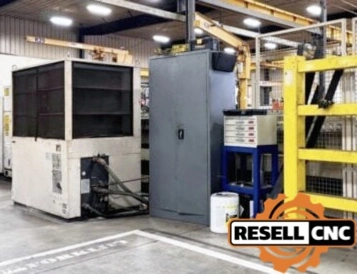

Chiller Unit
2,500 Watt
Recently Replaced Resonator
B Axis: false
C Axis: false

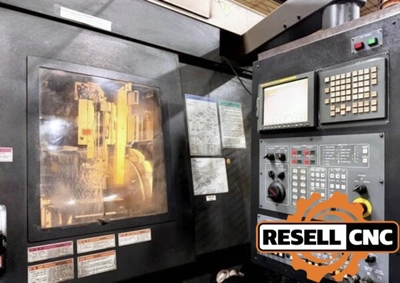

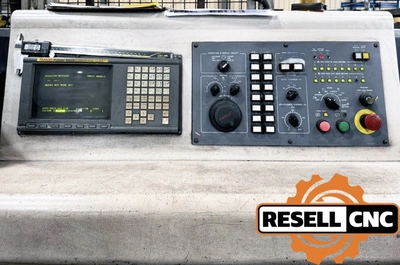

Control Make Model: Fanuc Series 160i-LB CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
