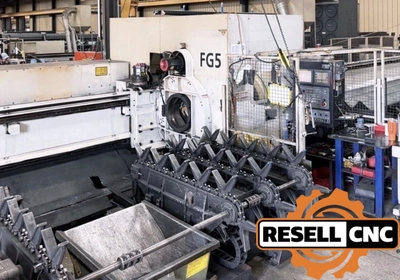

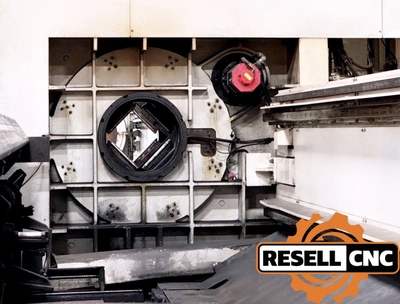

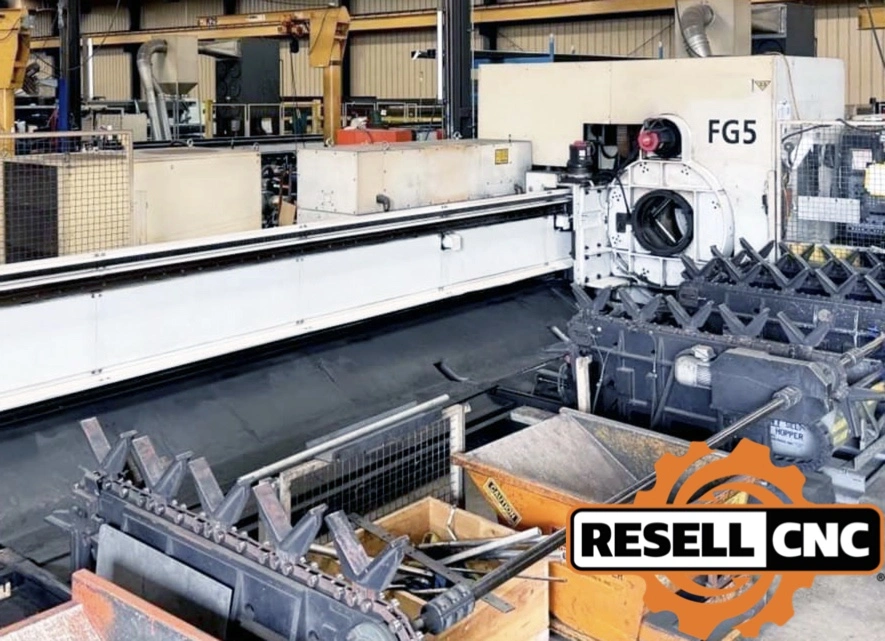

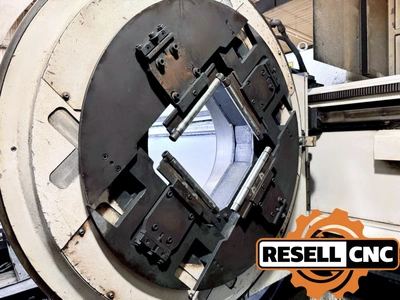

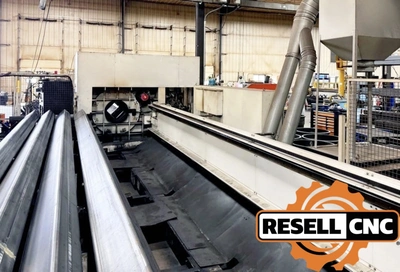

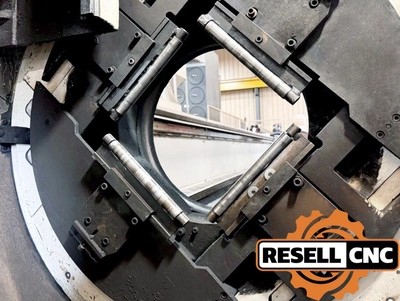

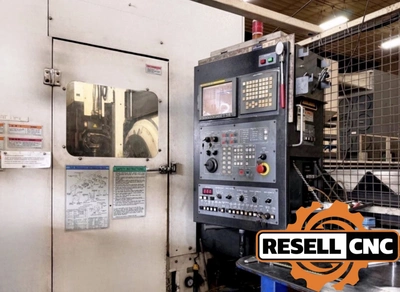

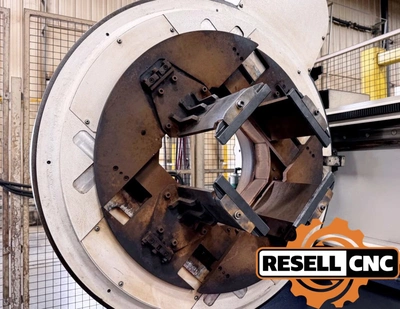

USED 2007 Mazak Fabri Gear 300 Tube

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Specifications:

Cutting Head: 3D

Laser Type: CO2

Laser Power: 2,500 Watts

Laser Gas: Mixed Gases He, Ni, CO2

Max Cut Size Round Tube: 0.79” – 10.51″

Max Cut Size Square Tube: 0.79” – 8.00”

Other Material Type: I Beam, Angle, Channel

Max Tube Weight: 1,052 Lbs

Material Loading Automatic: 5 Stations

Tube Auto Load Length: 135.83″ – 314.96″

Tube Auto Unload Length: 27.56” – 314.96″

Small Parts Up To 27’’ Unload: Small Parts Catcher

Axis Stroke X-Axis: 344.49″

Axis Stroke U-Axis: 358.27″

Axis Stroke V-Axis: 91.14″

Axis Stroke Y-Axis: 50.00″

Axis Stroke Z-Axis: 14.57”

Axis Stroke A-Axis: +/- 360 Degrees

Axis Stroke B-Axis: +/- 135 Degrees

Max Machining Feed Rate: 349 IPM

Axial Drive System: AC Servo Motor, Digital Servo Drive

Axial Drive System X-Axis: Rack & Pinion

Axial Drive System Y,Z-Axis: Ball Screws

Power Supply 3-phase AC: 98 kVA



Equipped With:

4,000 Watt Resonator

Auto Load/Unload

Scrap Conveyor

Small Parts Catcher

Chiller Unit

Dust Collector

Spare Parts

Manuals

B Axis: false
C Axis: false

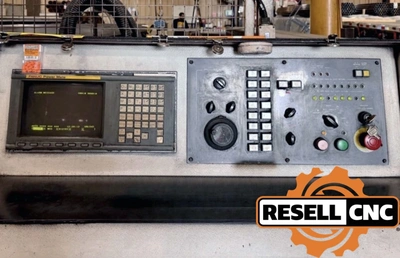

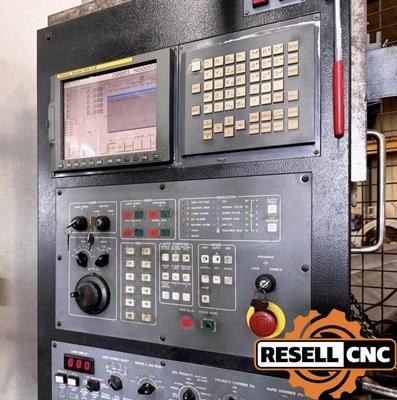

Control Make Model: Fanuc L-64 CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Watts: 2500.0
X Travel: 344.49
Y Axis: false
Y Travel: 50.0
Z Travel: 14.57
