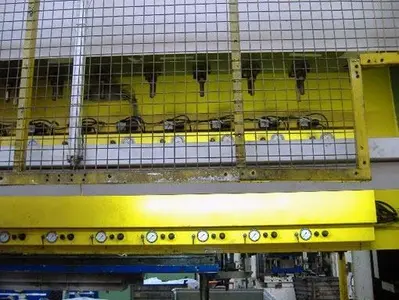

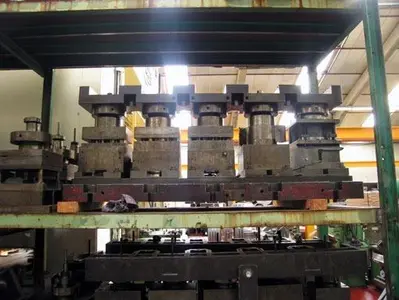

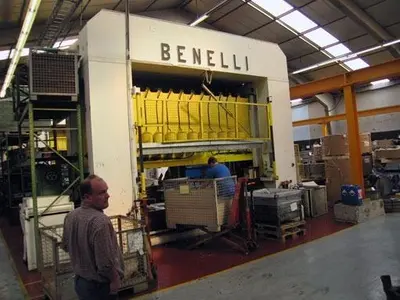

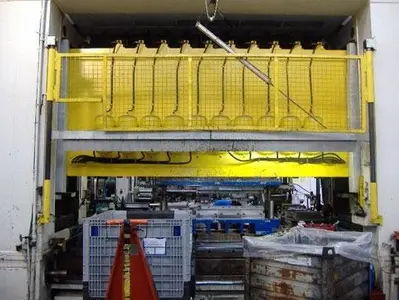

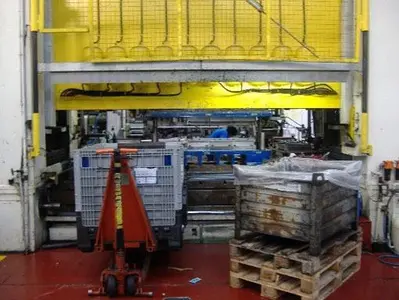

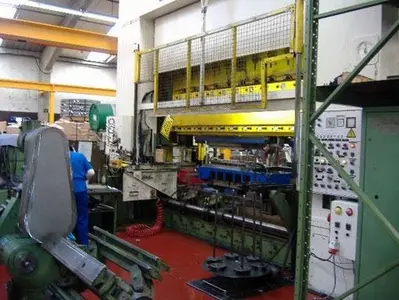

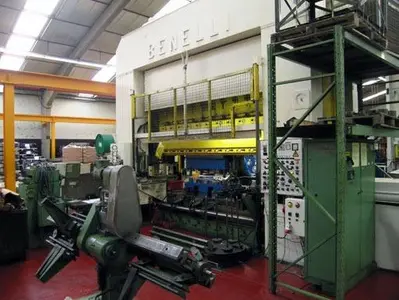

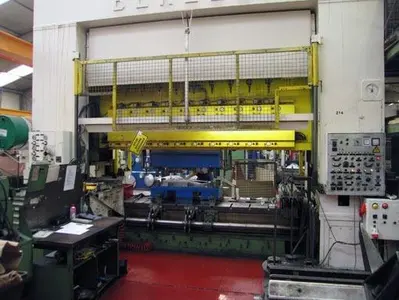

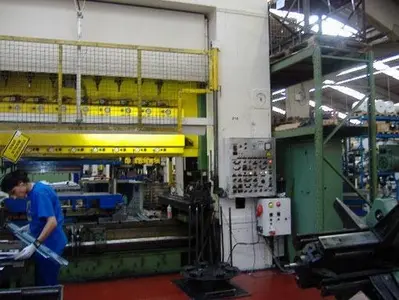

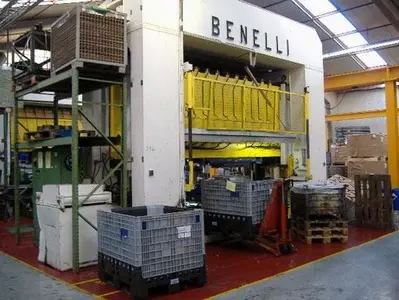

USED BENELLI TRANSFER PRESS 250 TON - 10 STEPS

Last used for production of loudspeakers.

Nominal power at 20 strokes/min: 2800 kgm

10 Stations + 1 exhaust: CC: 300mm

Strokes / minute: 10 -> 55 mm

Max movinglenght feeder: 300 mm

Max bandwidth: 300 mm

AirCusion 1 & 2nd station: 8.6 Ton

AirCusion from 3rd station on: 5.7 Ton

Max stroke mechanical ejector: 100mm +

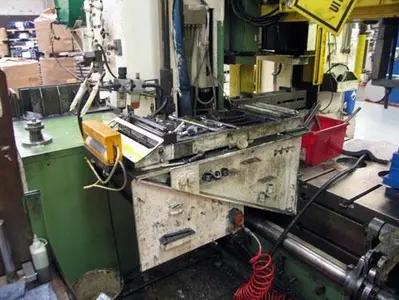

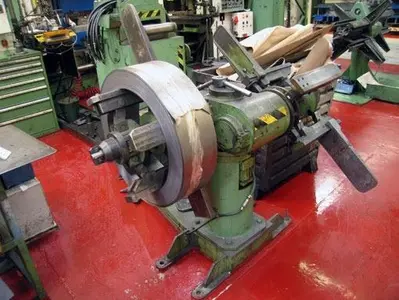

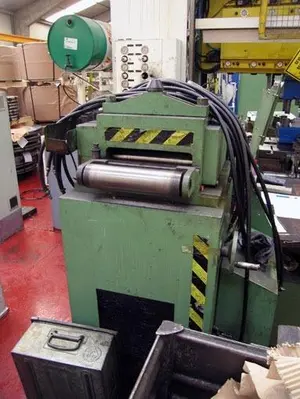

Double heads Decoiler 3Ton x 350 mm + Straightener 300mm x 3 mm

Capacity: 250 Ton
Max adjustable stroke: 210 mm
Distance between table -- ram: 690 mm
Dimension of the table: 3800 x 1000 mm
Dia table hole: 200.5 mm
Ram area: 3800 x 520 mm
Electric motor power: 50 pk
Length: 8050 mm
Depth: 2750 mm
Height: 6200 mm
Weight: 95000 kg
