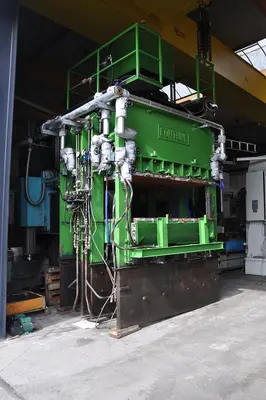

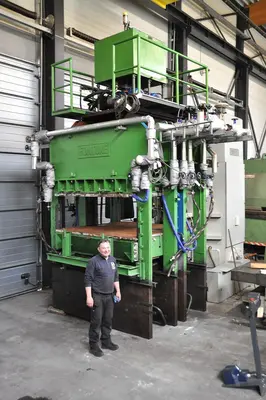

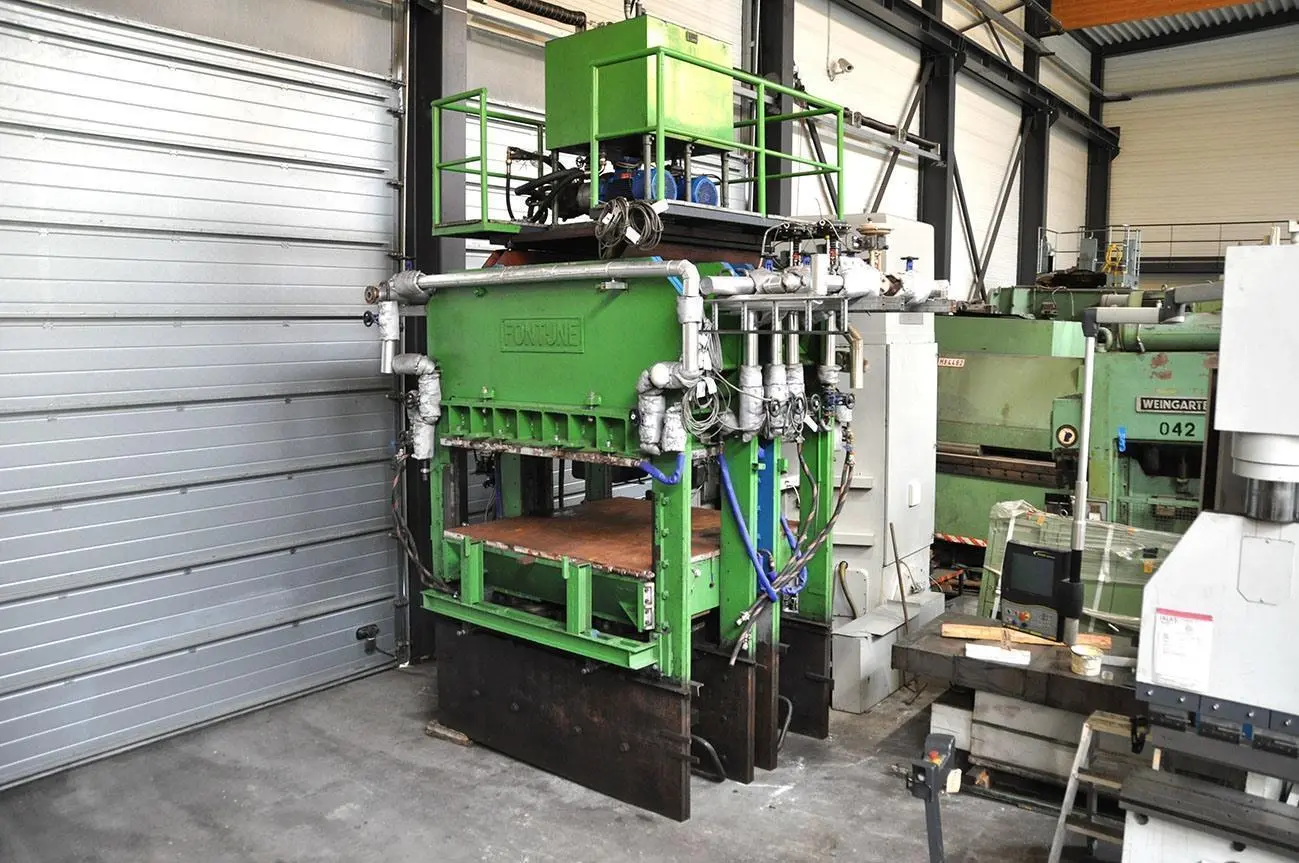

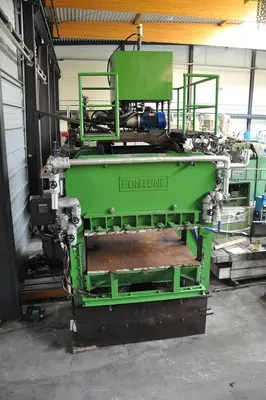

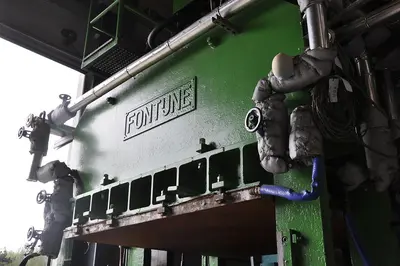

USED FONTIJNE 2000 TON HEATED
Overview

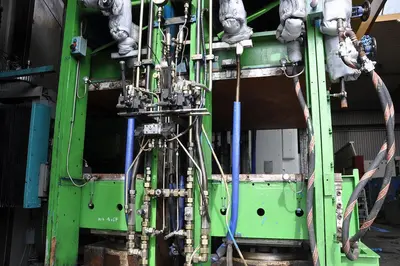

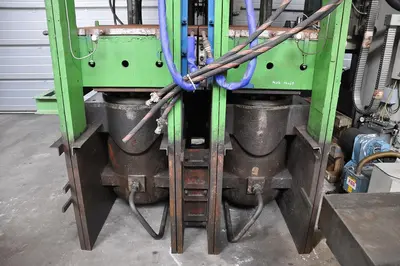

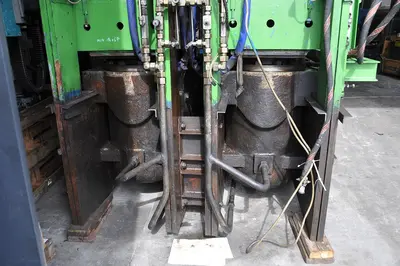

6 column press with 4 hydraulic pistons up stroke
diameter of piston: 450 mm
stroke: 550 mm
2000 tons max force
max opening without heated tables: 780 mm
max opening with heated tables: 655 mm

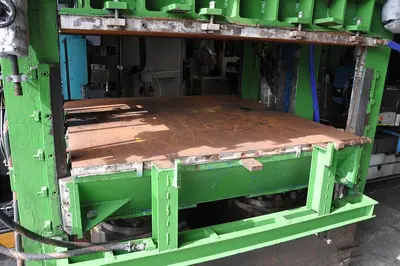

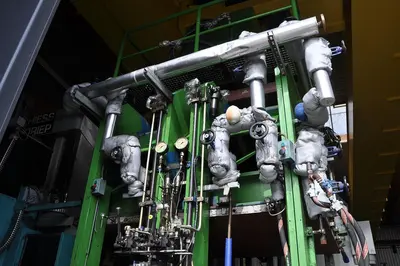

Heated tables with steam or oil
Max temp: 300° C

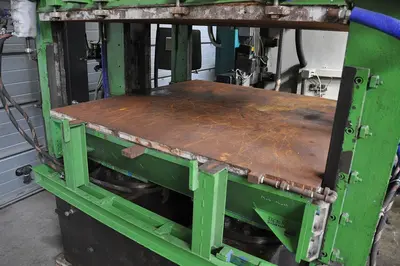

Total surface area: 2000 x 2000 mm
Two tables of 2000 x 1000 mm (can work together or separately)
2x 11 kW hydraulic power
with feed-in roll table: 4260 x 1550 x 1250 mm

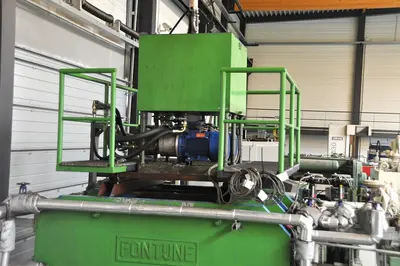

Oil tank on platform: 2000 x 2000 x 2500 mm
Total height of press: 3600 mm
Press sits 920 mm in ground
Working height is 750 mm
Applications:
- composite material
- vulcanizing
- bending / straightening
