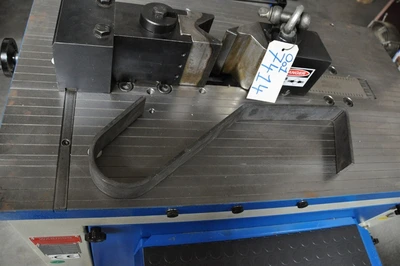

bending examples:
- 100 mm width x 20 mm thickness
- 120 mm width x 15 mm thickness
min axis base between mobile and fixed pins: 110 mm
max axis base between mobie and fixed pins: 310 mm

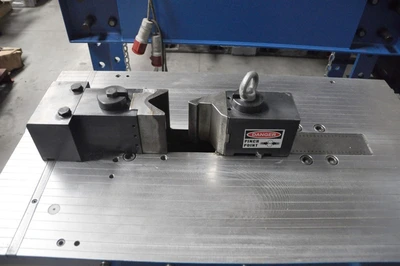

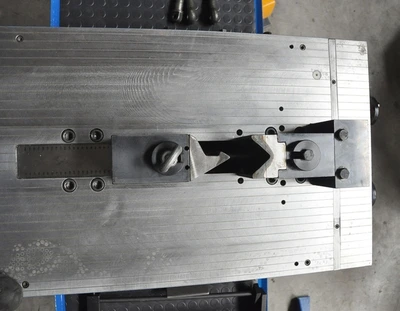

Standard equipment: V-90
Capacity: 22 ton
Max ram adjustment: 200 mm
High speed displacement: 1750 mm/min
Working speed: 450 mm/min
Returning speed: 2000 mm/min
Table area: 625 x 1100 mm
Table height: fixed (1) -- sliding (2): 920 mm
Electric motor (power): 2,2 kW
Courant needed: 400V
Length: 1100 mm
Depth: 630 mm
Height: 925 mm
Weight: 635 kg
