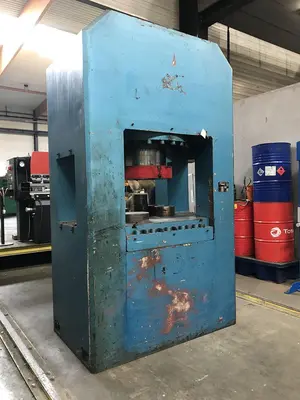

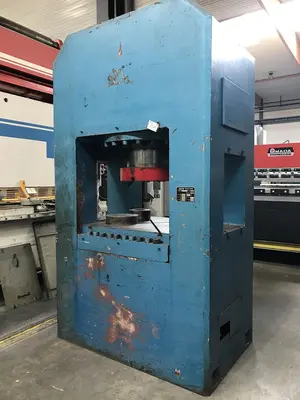

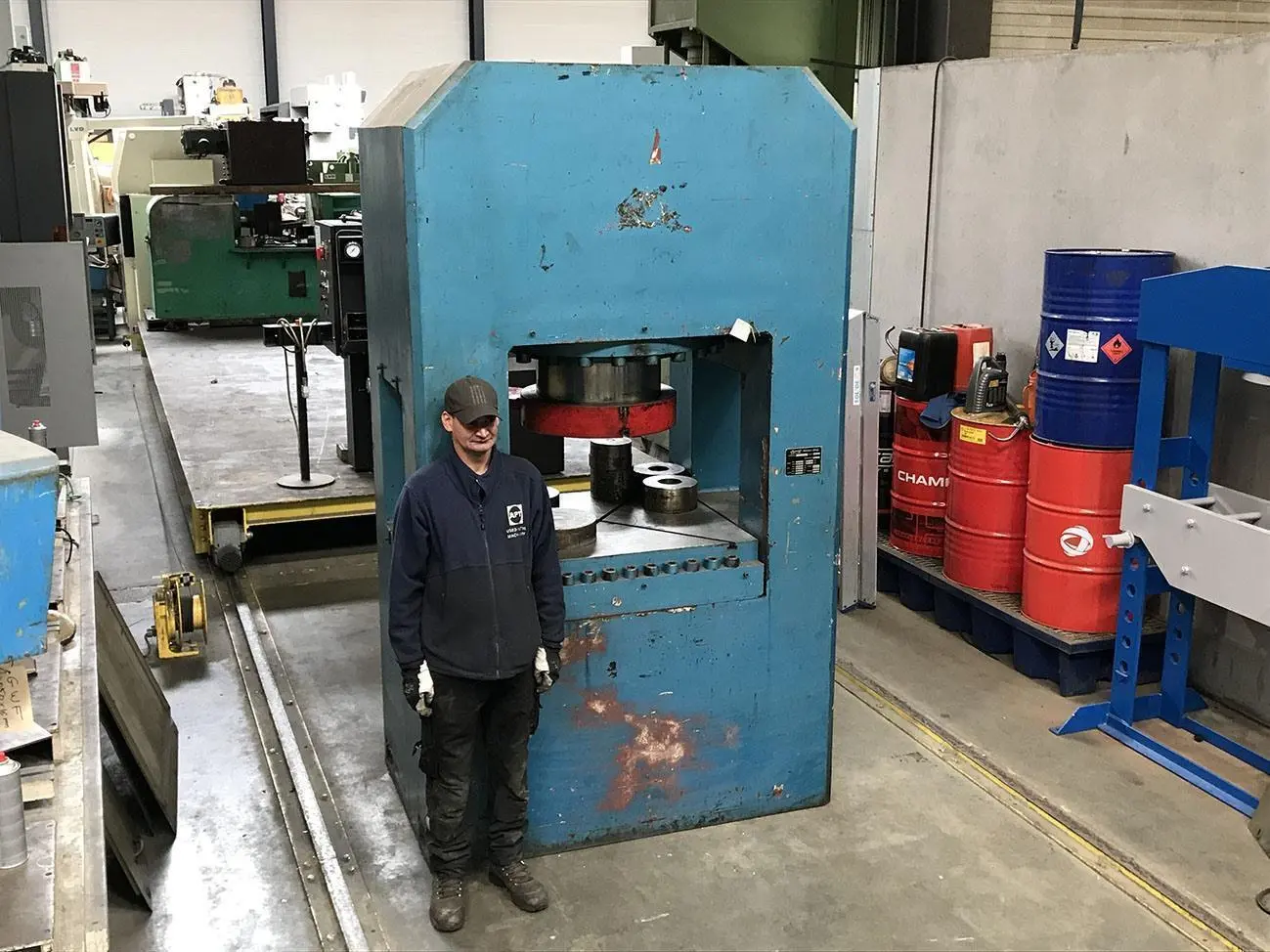

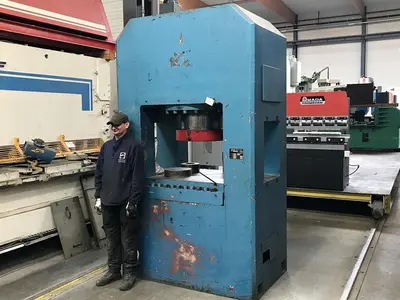

USED HYMAG HDP 1000 TON

Pressing Cylinder Ø 500 mm

Thickness table 220 mm

Drive for double steppump low/high pressure n = 3Kw
Speed by low pressure V1 = 1,6 mm/sec
Speed by high pressure V2 = 0,15 mm/sec
Speed return Vr = 5 mm/sec

Capacity: 1000 ton

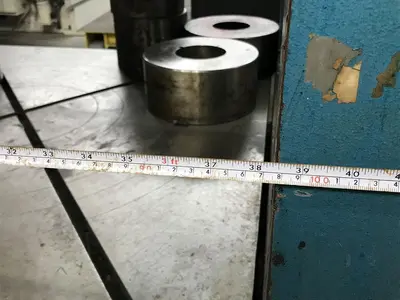

Passage between uprights: 960 / 500 mm
Max ram adjustment: 150 mm
Distance between table -- ram: 550 mm

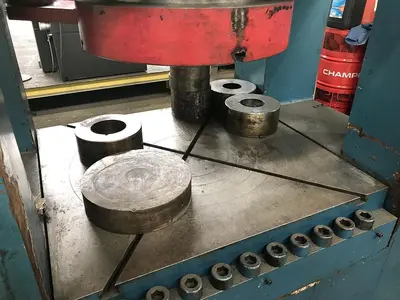

Table area: 960 x 1000 mm
Table height fixed (1) -- sliding (2): (1)

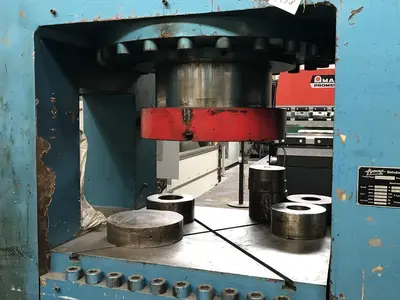

Ram area: Ø 600 mm
Electric motor (power): 10 kw
Length: 1650 mm
Depth: 1000 mm
Height: 2790 mm
Weight: 13,5 ton
