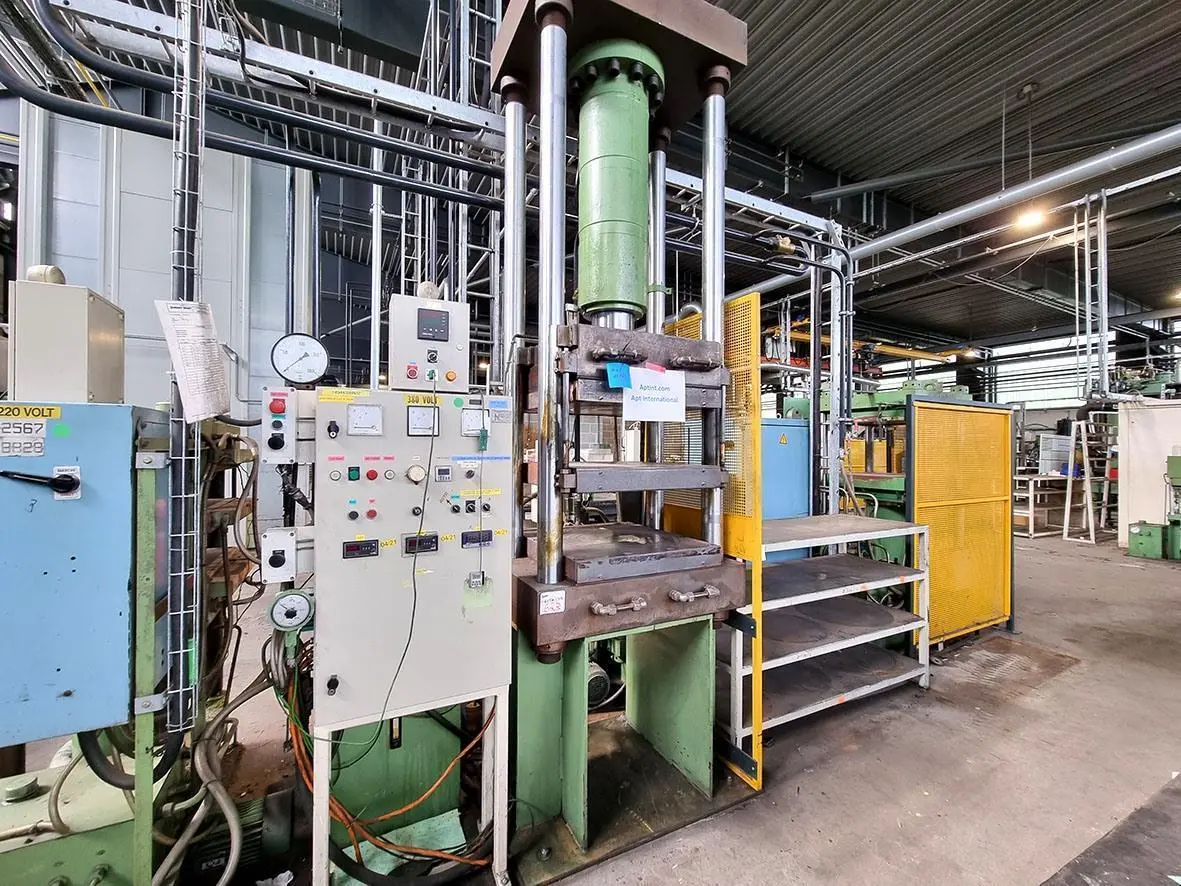

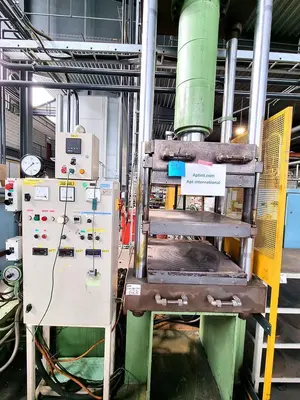

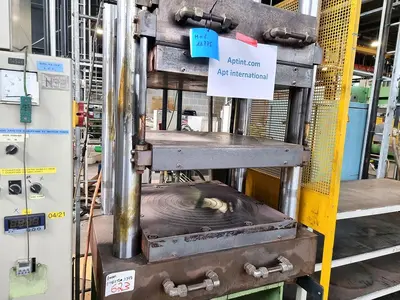

USED DIAMANT BOART 150 TON HEATED

Press which can be used for manufacturing seals / (resin) composite parts / compression molding / circular sawblades / abrasive products / pressing from (metal)powder to parts / ...

with 3 heated tables + 2 watercooled tables
max 300° C

Press has been developed to be able to remain under pressure
for 24 hours!

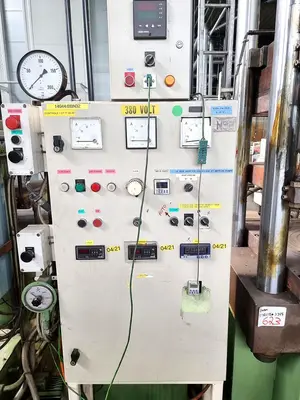

Possible to program:
- different temperatures
- holding time of press under pressure
- multiple cycles

Capacity: 150 ton
Passage between uprights: 670 mm
Max stroke: 600 mm
Distance between table -- ram: 600 mm

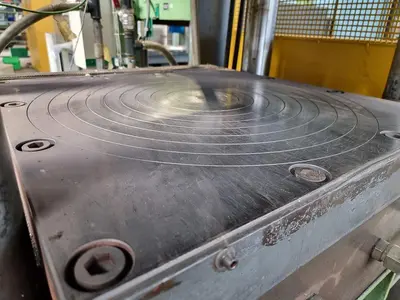

Table: 670 x 670 mm
Length: 1120 mm
Depth: 1200 mm
Height: 3600 mm
Compression press / Grinding wheel press / Vulcanizing press / Elastomer press

Kompressionspresse / Schleifscheiben Presse / Vulkanisierpresse / Elastomer Presse

Capacity: 150 ton
Passage between uprights: 670 mm
Max ram adjustment: 600 mm
Distance between table -- ram: 600 mm
Table area: 670 x 670 mm
Length: 1120 mm
Depth: 1200 mm
Height: 3600 mm
