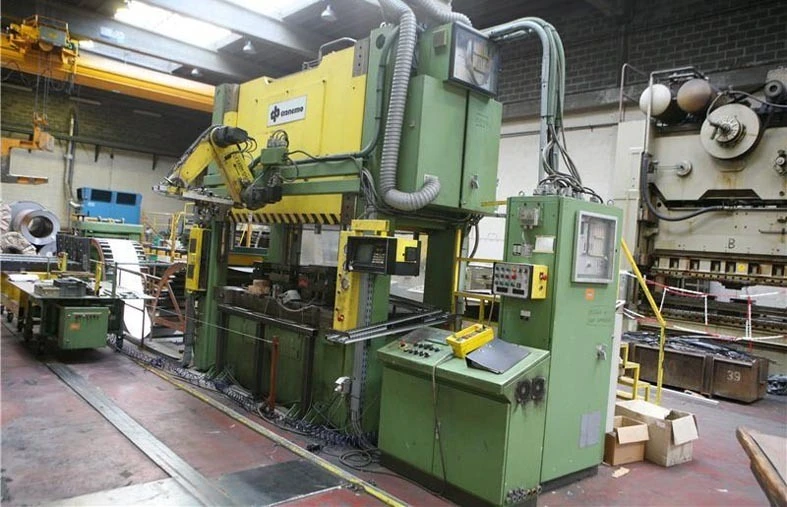

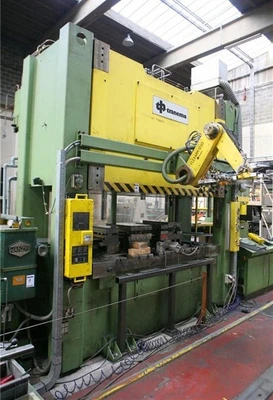

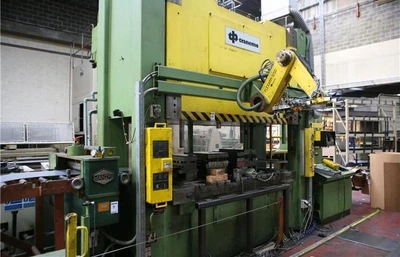

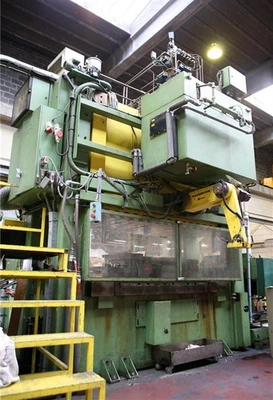

USED TRANEMO DPA 250-25 CNC

2 axis

speed at 250 ton: 15 strokes/min
speed at 88 ton: 36 strokes/min
between columns long side: 2500 mm

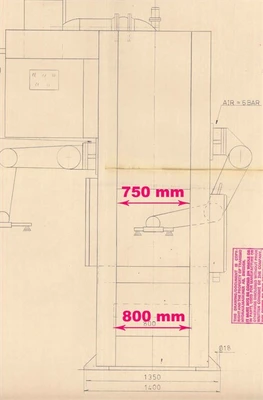

between columns short side: 800 mm

This Tranemo features:

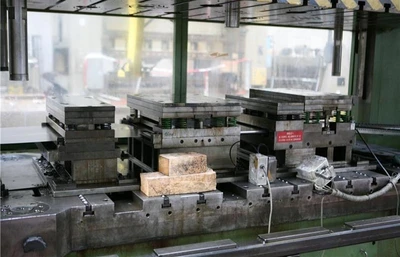

- automatic hydraulic clamping system for the tooling
- table with T-slots
- hydraulic cutting stroke damper
- double acting triple-cylinder in the press ram

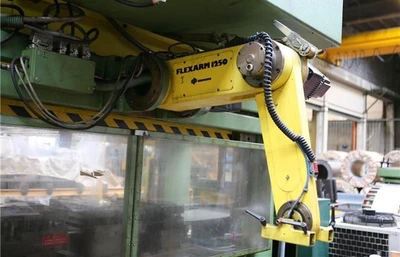

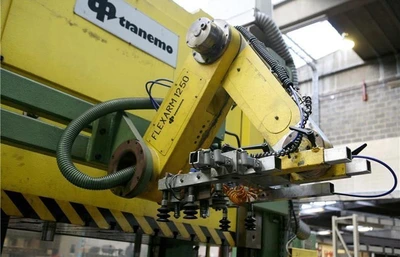

- two flexarm 1250 robots for (un)loading

Capacity: 250 ton

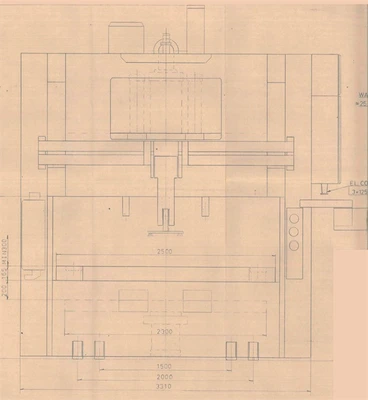

Passage between uprights: 2500 mm
Max ram adjustment: 500 mm
Drawning speed: 354 mm/sec
Distance between table -- ram: 800 mm
Table area: 2500 x 1000 mm
Table height fixed (1) -- sliding (2): 1055 mm
Ram area: 2500 x 1000 mm
Electric motor (power): 45 kW
Length: 4200 mm
Depth: 2600 mm
Height: 4000 mm
Weight: 28 ton
