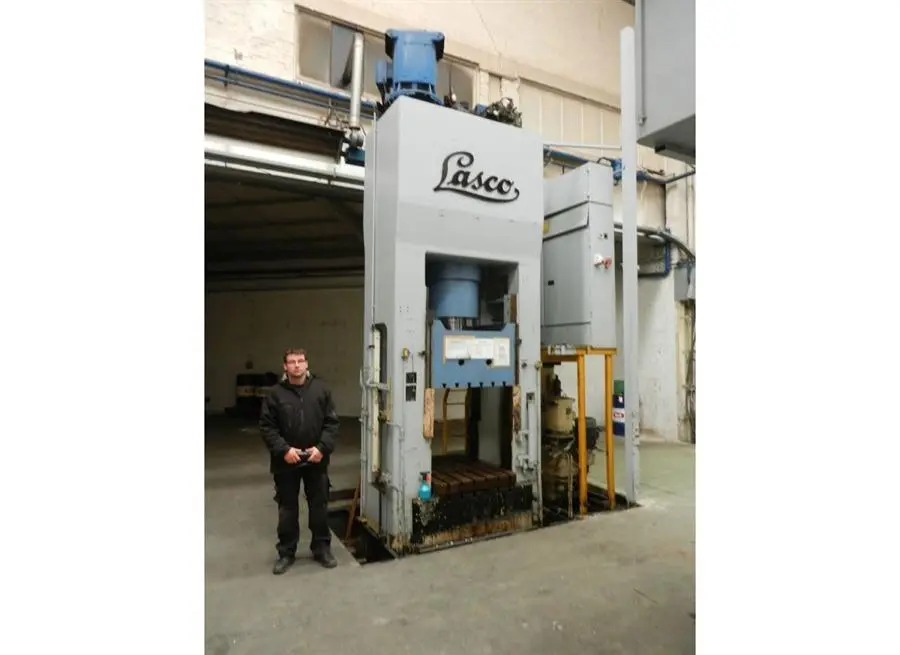

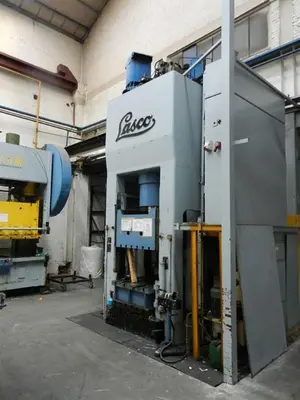

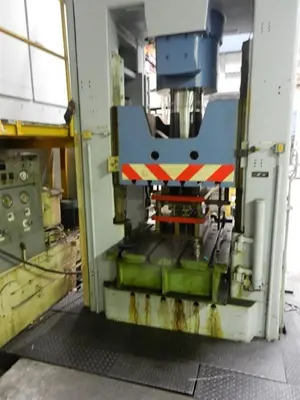

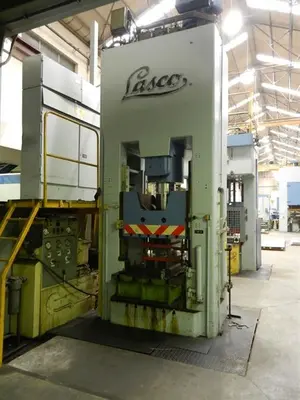

can be used as deepdraw press or as forging press
Type: TSP 200 So
Capacity: 250 ton
Passage between uprights: 500 mm
Max ram adjustment: 800 mm
Distance between table -- ram: 1300 mm
Table area: 1000 x 1000 mm
Max counter-pression in table: 120 ton
Electric motor (power): 33kW & 18kW
Height: 5550 mm
Weight: 45 ton
Capacity: 250 ton
Max ram adjustment: 800 mm
Passage between uprights: 500 mm
Max distance between table - ram: 1300 mm
Dimensions of the table: 1000 x 1000 mm
Max counter-pression table: 120 ton
Electric motor (power): 33 kW & 18 kW
Height: 5550 mm
Weight: 45 ton
