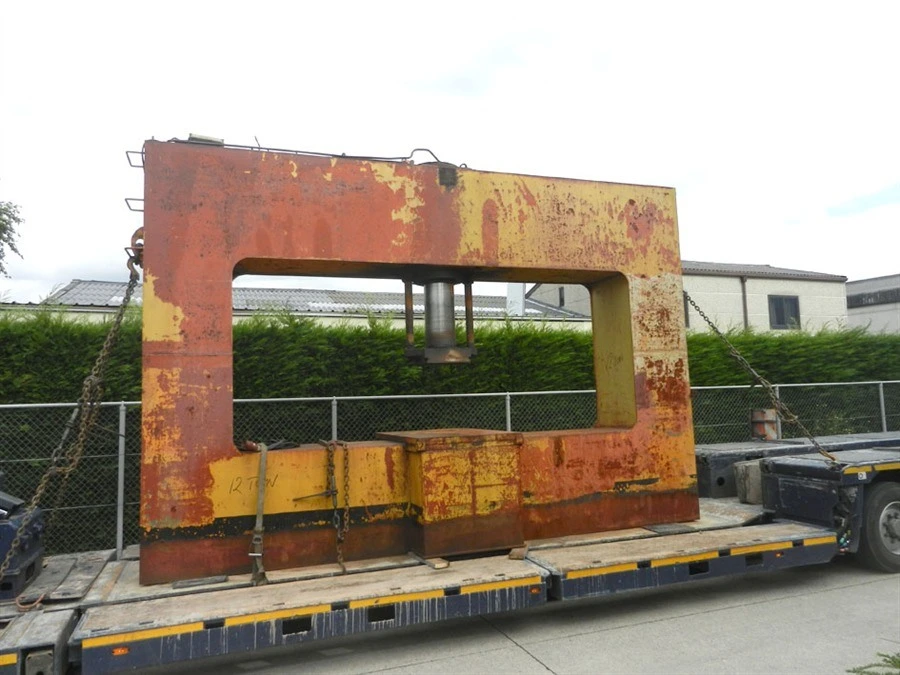

USED BAUER 400 TON DISH END FORMING PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
H-Frame Presses
Manufacturer:
BAUER 400 TON
Model:
DISH END FORMING PRESS
Stock #:
M.04 7231
Description

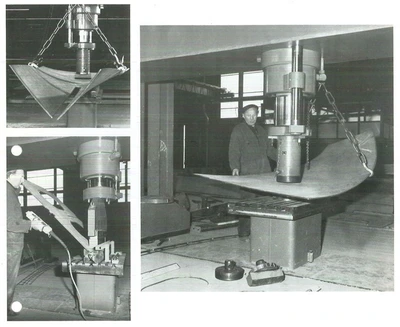

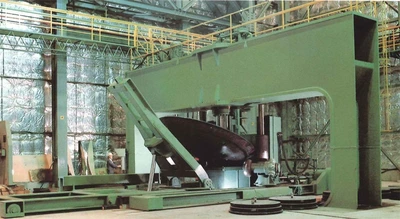

This portalpress is suitable for all shipbuilding activities relative to the deformation/deforming of steel plates. For the width and thickness of the plates the general rule applies: 10 ton per mm platethickness.

Type HS242
dia cylinder: 390 mm

stroke: 1000 mm
manual rotatable ram

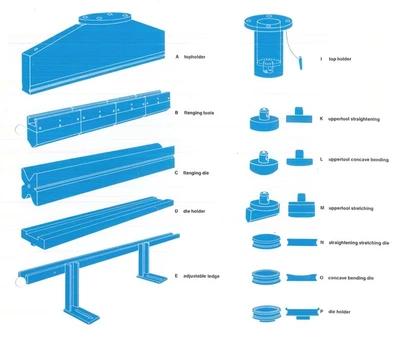

bending - straightening - flanging - folding - plate roll press - plate roller press - Plattenroll Presse - strechting - bending - joggling - flanging - Kesselboden - Kümpelpresse

Specifications

Capacity: 400 ton
Max ram adjustment: 600 mm

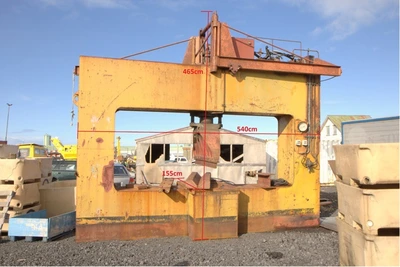

Passage between uprights: 4000 mm
Max distance between table - ram: 1250 mm
Length: 5450 mm
Depth: 1200 mm
Height: 4750 mm
Weight: 13 ton
