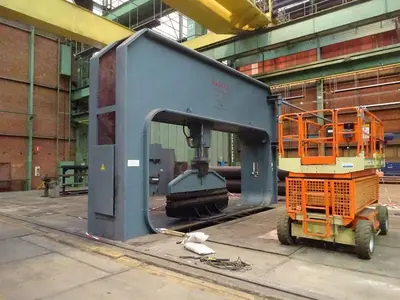

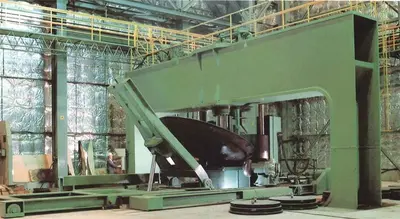

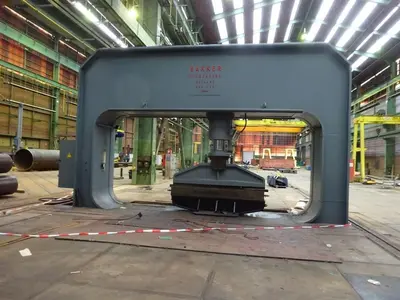

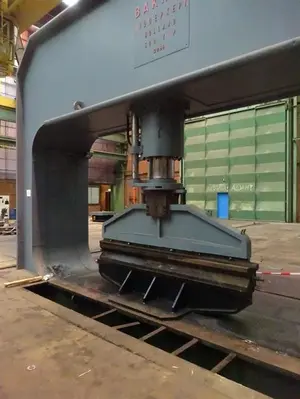

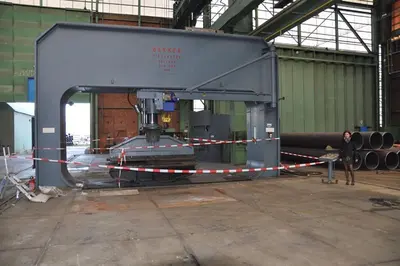

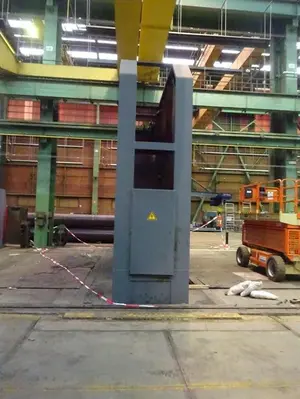

USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS
  • USED BAKKER 500 TON DISH END FORMING PRESS

USED BAKKER 500 TON DISH END FORMING PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
H-Frame Presses
Manufacturer:
BAKKER
Model:
500 TON DISH END FORMING PRESS
Stock #:
M.04 8677
Description

Type: HSPP 50

This portalpress is suitable for the deformation/deforming of steel plates. For the width and thickness of the plates the general rule applies: 10 ton per mm platethickness.

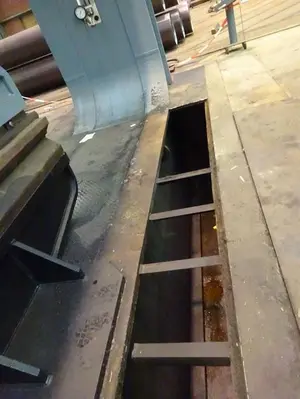

2000 mm in ground

closing speed + pressing speed: 850 mm/min
return speed: 5500 mm/min
also fitted with a jib crane and two tables are included
max open: 2700 mm (without table)

motor: 80 HP

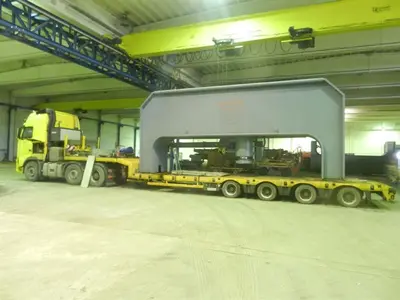

Can be transported in two pieces

bending - straightening - flanging - folding - plate roll press - plate roller press - Plattenroll Presse - strechting - bending - joggling - flanging - Kesselboden - Fond elliptique / Fonds elliptiques / Dish-end forming press / Tankbödenherstellung / Kümpelpressen / Bördelmaschinen / Bodenrand-Sickenmaschinen
-----------------------------------------------
Модель станка: HSPP 50

Фундамент: 2000 мм
Скорость подхода + скорость гибки: 850 мм/мин
Скорость подъема: 5500 мм/мин
Пресс оборудован консольным краном и двумя столами
Макс расстояние между фундаментом и ползуном: 2700 мм

Пресс может быть транспортирован в 2х частях.

Specifications

Capacity: 500 ton
Max ram adjustment: 600 mm
Drawningspeed: 850 mm/min
Workingspeed: 850 mm/min
Returningspeed: 5500 mm/min

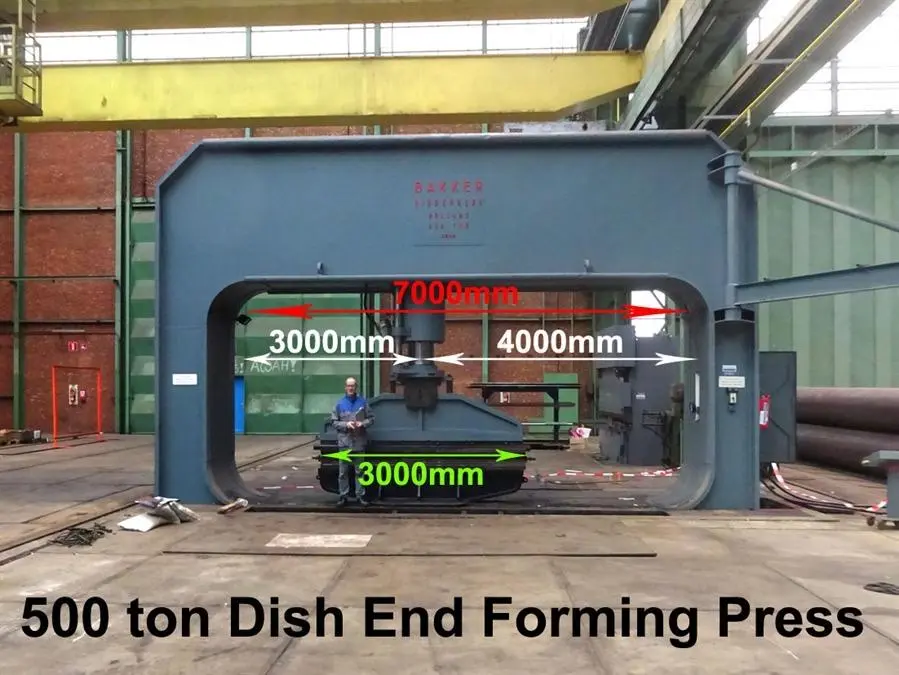

Passage between uprights: 3000+4000 mm
Electric motor (power): 80 hp
Length: 8400 mm
Depth: 1500 mm
Height: 5200+2000 mm
