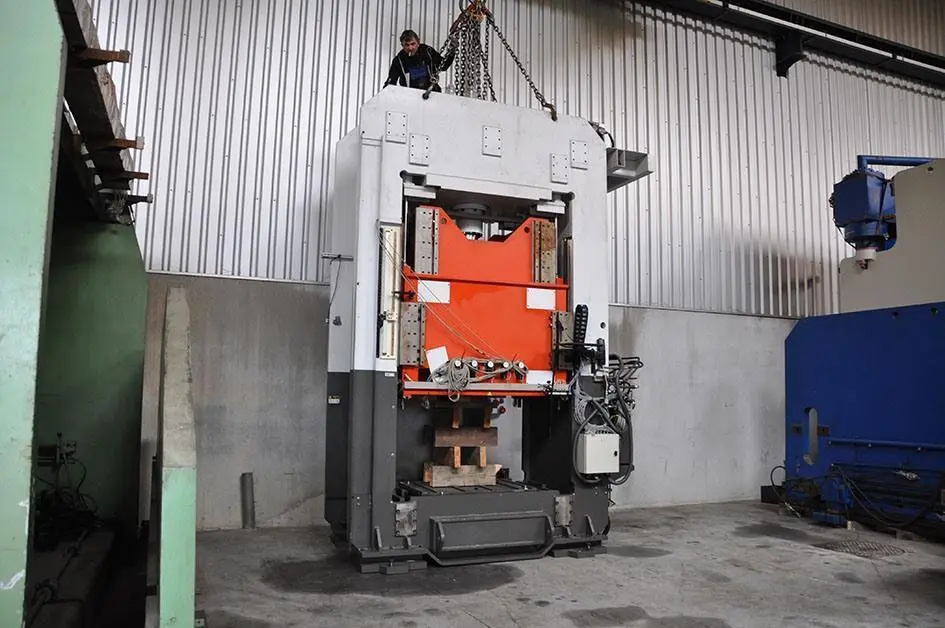

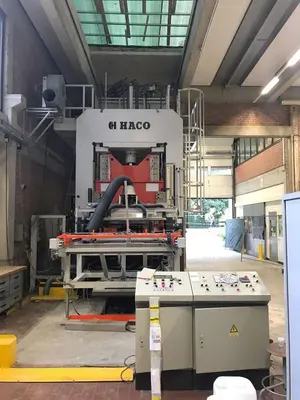

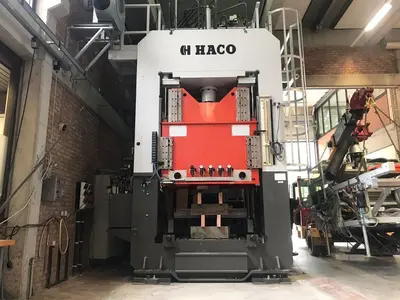

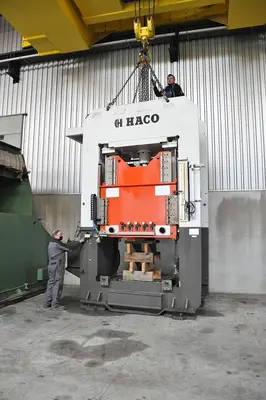

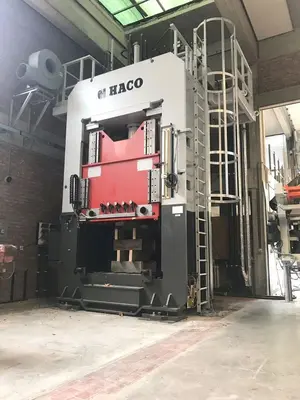

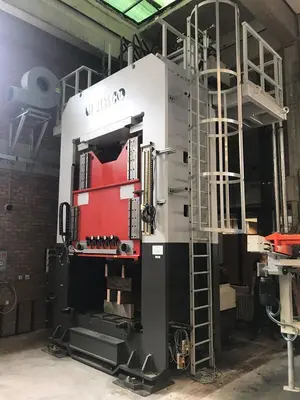

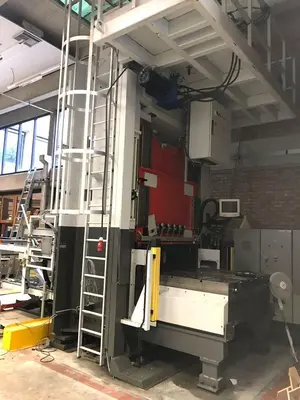

USED HACO 100 TON CNC

This press was previously used by a university for testing purposes, but this press can also be used in a production environment. It's ideally suited for working with composite parts.

The press has a triple effect and features:

- an inner slide with a stroke of 750 mm

- an outer slide with a stroke of 750 mm

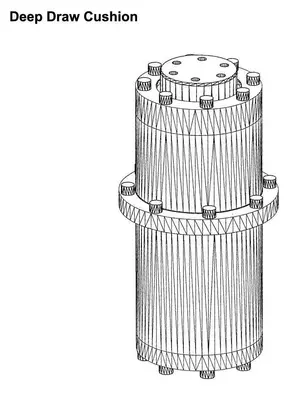

- a deep draw cushion which can act as an upwards pressing force (stroke of 750 mm and 40 ton force) AND as an ejector (2 cylinders of 35 ton each)

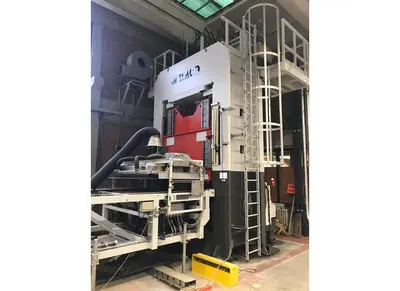

- a heating unit with infra red beams (2 times 50 kW), possibility to heat 4 different section of the table with the CNC control

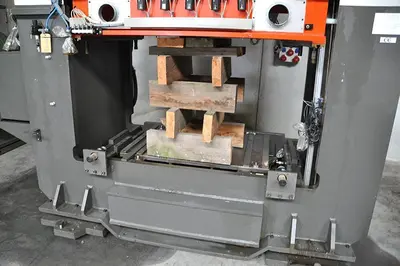

Table features ejectors with dia 40 mm

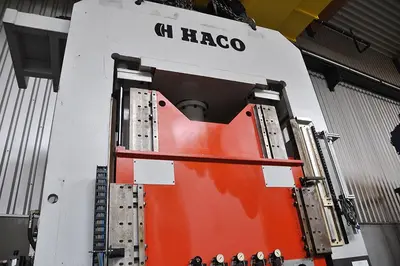

The press features X-guideways which prevents the inner slide from getting stuck or a no smooth downward movement due to heat radiation.

Table is manually deployable

Press can be used both stand-alone as CNC controlled

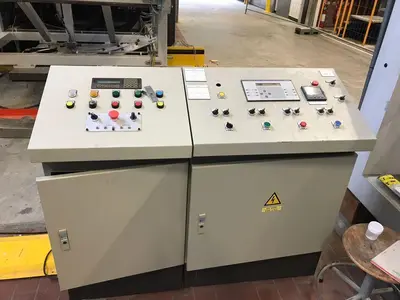

CNC control: Robosoft BC40

Diameter of main cilinder: 230 mm

Oiltank of 1800 liters

Positionning accuracy: 0,1 mm at a speed smaller then 50 mm/sec

Pressure measurement accuracy: 0,05%

Capacity: 100 ton
Max ram adjustment: 750 mm
Drawningspeed: 600 mm/sec
Workingspeed: 45 mm/sec
Passage between uprights: 1600 mm
Max distance between table - ram: 1200 mm
Dimensions of the table: 1600 x 1000 mm
Electric motor (power): 80 kW
Weight: 30 ton
