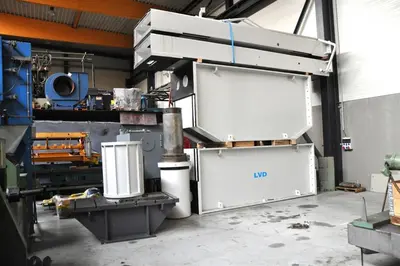

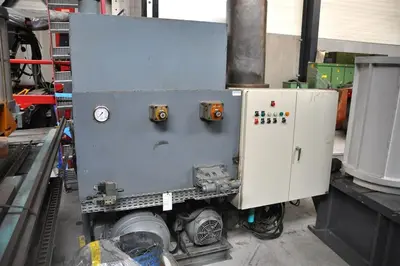

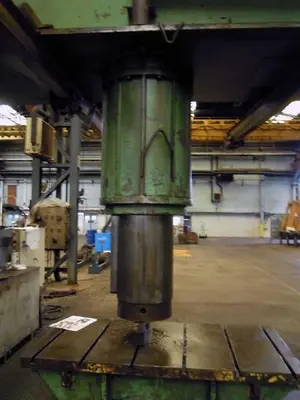

USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS
  • USED LVD 600 TON DISH END FORMING PRESS

USED LVD 600 TON DISH END FORMING PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
H-Frame Presses
Manufacturer:
LVD 600 TON
Model:
DISH END FORMING PRESS
Stock #:
M.04 6337
Description

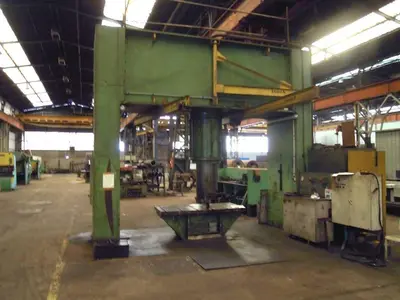

This portal press is suitable for forming/deforming steel plates. The general rule for plate width and thickness is 10 tons per mm of plate thickness.

Has been completely overhauled
Capacity: 600 tons
Maximum opening: 1600 mm
stroke: 600 mm

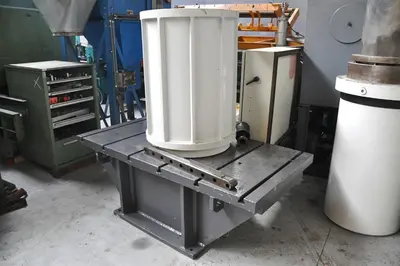

Table: 2000 x 1000 mm

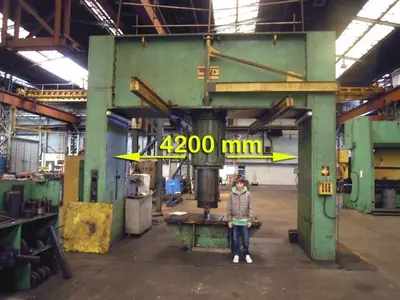

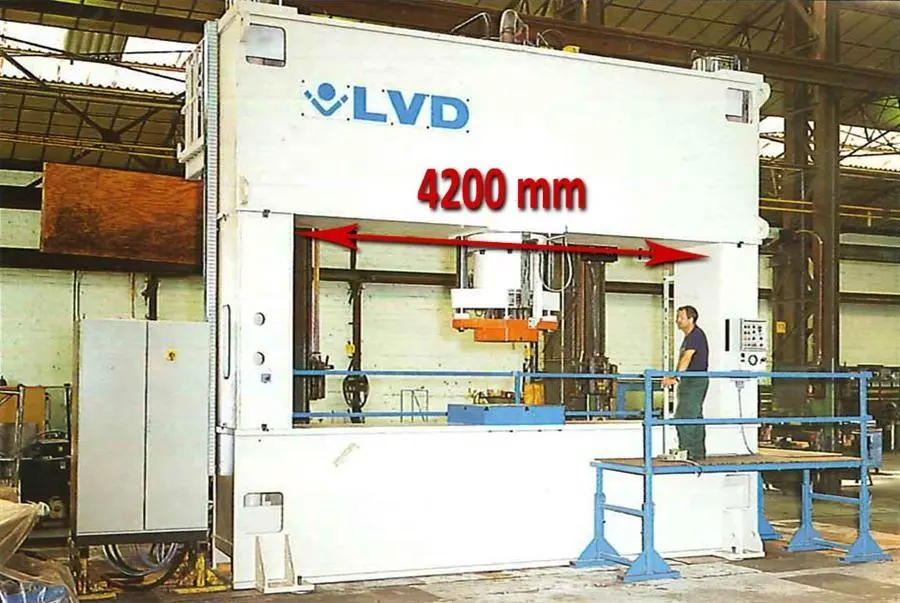

Between columns: 4200 mm
Shutter speed: 55 mm/sec
working speed: 10 mm/sec
return speed: 130 mm/sec
Machine completely overhauled!
platenwalspers - plaatwalspers - Plattenroll Presse - trekken -buigen - jogglen - flessen - Kesselboden - Fond elliptique / Fonds elliptiques / Dish-end vormpers / Tankbödenherstellung / Kümpelpressen / Bördelmaschinen / Bodenrand-Sickenmaschinen

Specifications

Capacity: 600 Ton
Max ram adjustment: 600 mm
Drawningspeed: 55 mm/sec
Workingspeed: 5 à 10 mm/sec
Returningspeed: 130 mm/sec
Passage between uprights: 4200 mm
Max distance between table - ram: 1600 mm
Dimensions of the table: 2000 x 1000 mm
Electric motor (power): 45 pk
Weight: 40000 kg
