USED SMG 200 TON CNC

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
H-Frame Presses
Manufacturer:
SMG
Model:
200 TON CNC
Stock #:
M.04 6207
Description

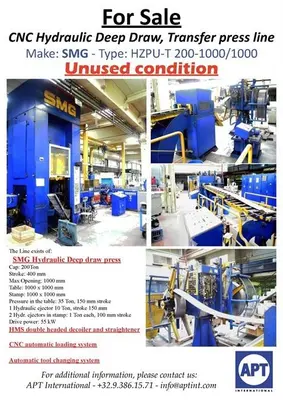

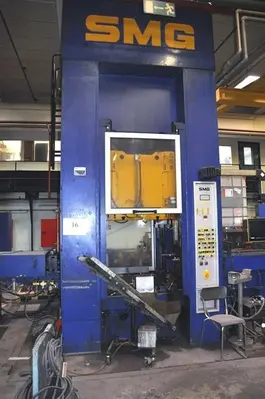

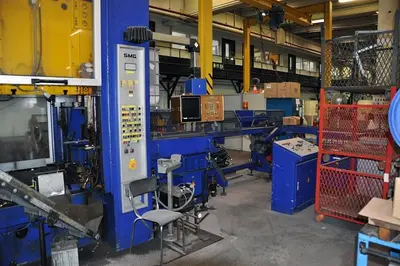

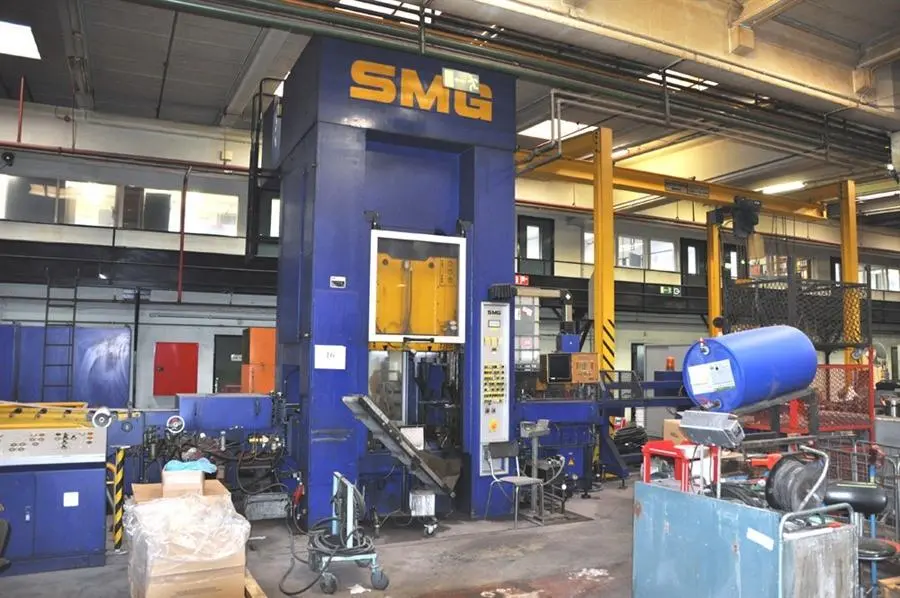

CNC Hydraulic deepdraw- & transfer press line

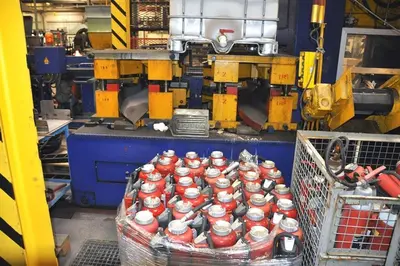

!! 4 dies available: 2 in use & 2 reserve !!

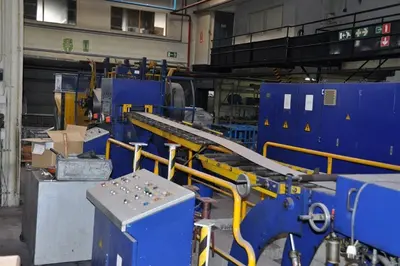

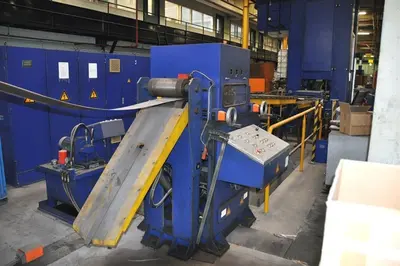

Equipped with HMS doublehead decoiler and HMS straightener

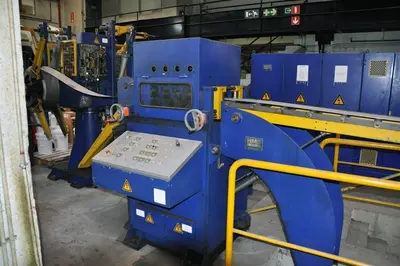

> HMS Straightener RS 87-03/0

max bandwidth: 300 mm

7 straightening rolls at Ø 80 mm

2 (pneumatic) drawing rolls at  Ø 120 mm

speed: 2-10m/min

bandthicnkess: 0,8 - 3 mm

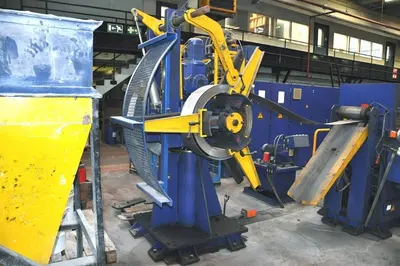

> HMS decoiler BA 3.3-03/040

max bandwidth: 300 mm

max coilweight: 4 ton

inner coildia:  Ø 508 mm

outer coildia:  Ø 1500 mm

hydraulic system: 2,2kW - 100 bar - 11l/min

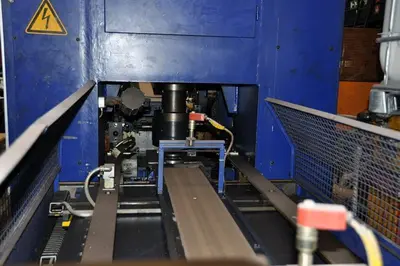

> Automatic CNC Feeder (HMS PSV-3-S0)

> Automatic toolchangingsystem

Stroke in table: 150 mm

Stroke in cushion: 100 mm

Specifications

Capacity: 200 Ton
Max ram adjustment: 400 mm

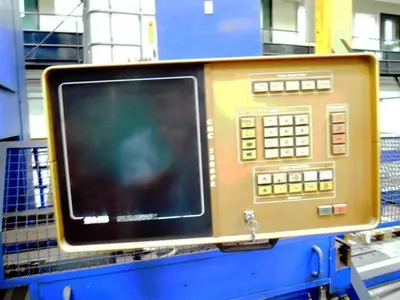

Command (feet/Double hand): CNC
Passage between uprights: 1100 mm
Max distance between table - ram: 1000 mm
Dimensions of the table: 1000 x 1000 mm
dimensions stamp: 1000 x 1000 mm
Max counter-pression table: 35 Ton
Max counter-pression ram: 2 x 1 Ton
Electric motor (power): 55 kW
Weight: 26000 kg
