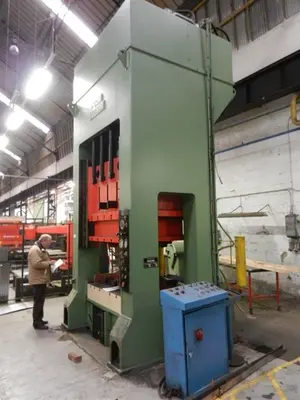

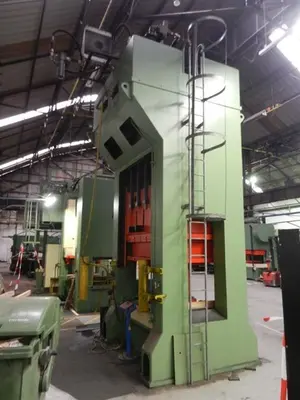

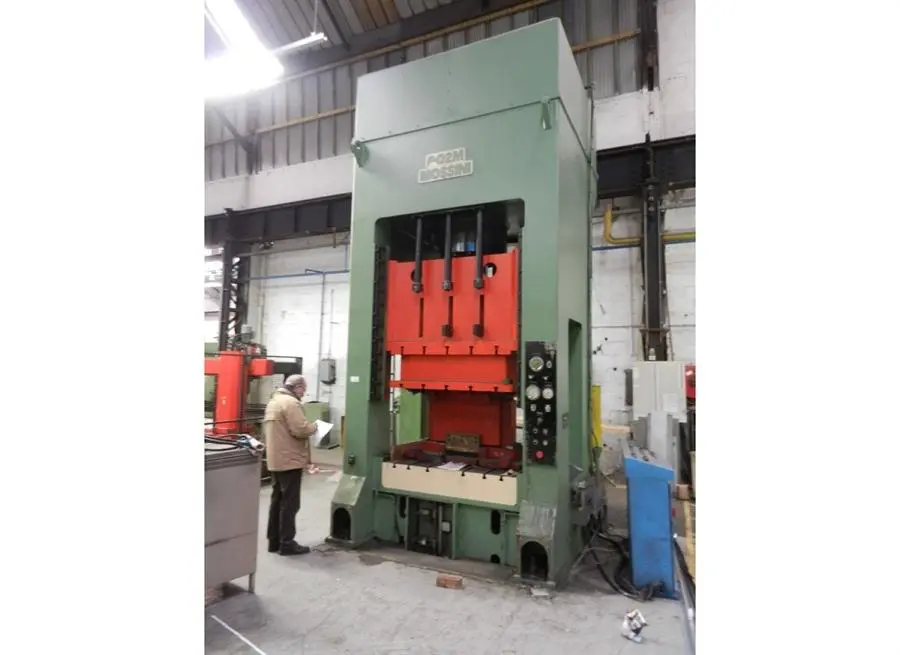

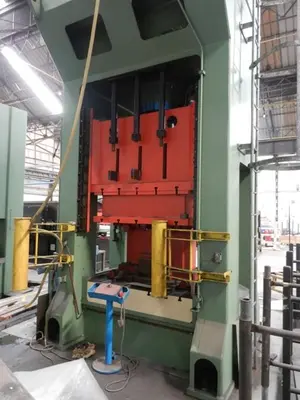

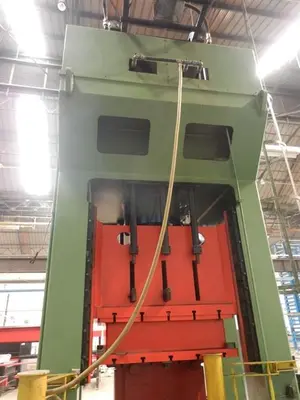

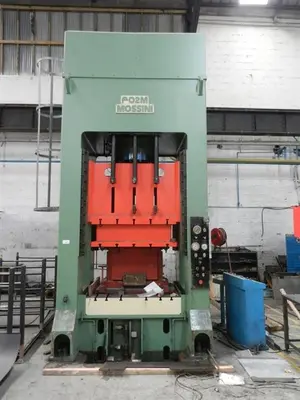

Type PO2M
Capacity: 250 ton
Max ram adjustment: 800 mm
Drawningspeed: 315 mm/sec
Workingspeed: 16-40 mm/sec
Returningspeed: 315 mm/sec
Passage between uprights: 1600 mm
Max distance between table - ram: 1350 mm
Dimensions of the table: 1600 x 1250 mm
Max counter-pression table: 120 ton
Adjustable ram / counter-pression: 0 > 400 mm
Electric motor (power): 45 kW
Length: 2400 mm
Depth: 1600 mm
Height: 5600 mm
Weight: 35 ton
