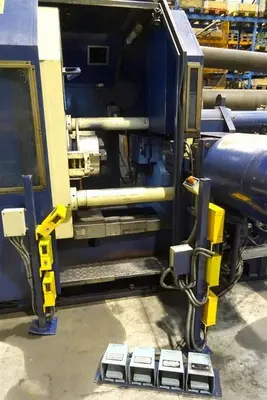

USED SMFI INTER HYDRO CNC FRICTION WELDING LATHE

USED SMFI INTER HYDRO CNC FRICTION WELDING LATHE

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
SMFI INTER HYDRO
Model:
CNC FRICTION WELDING LATHE
Stock #:
M.26 8632
Description

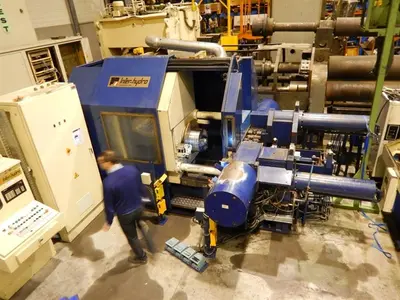

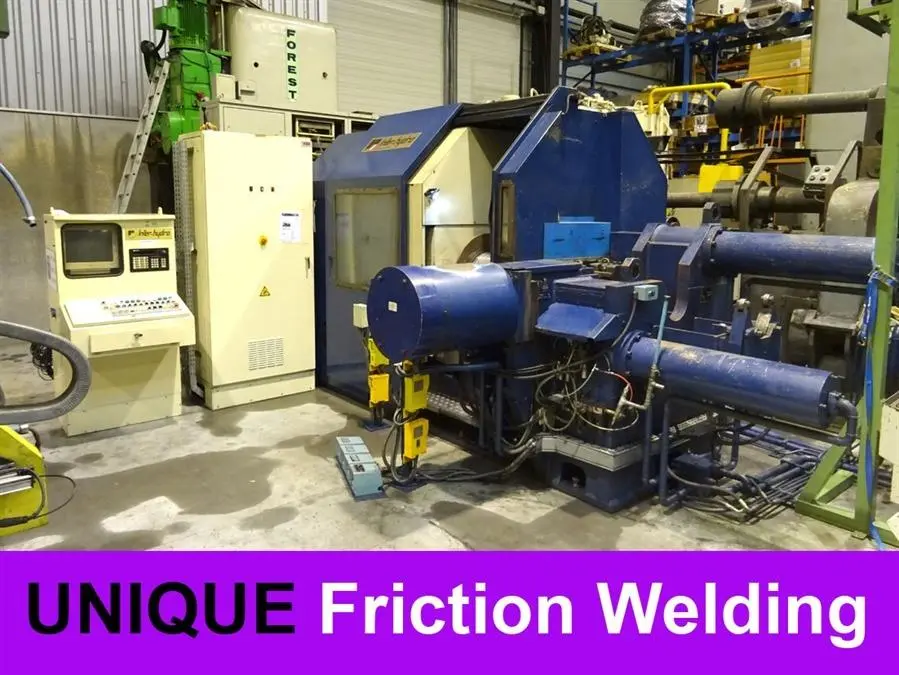

Heavy duty friction welding machine, ideal for drilling equipment for petro industry (welding drilling heads to tubes) but also for drive shafts, engines, turbines,...

step 1 - two pieces are welded together
step 2 - the resulting seamweld is removed by turning action
Type SF 1105

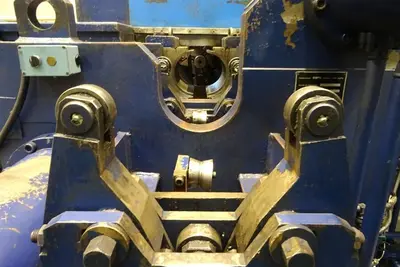

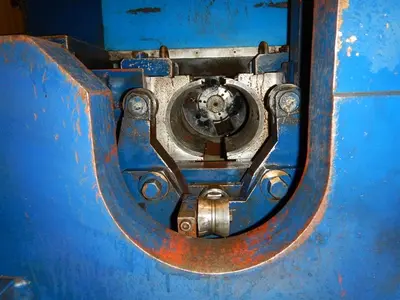

2 self-centering steady-rests
2 tool holders

Left side:

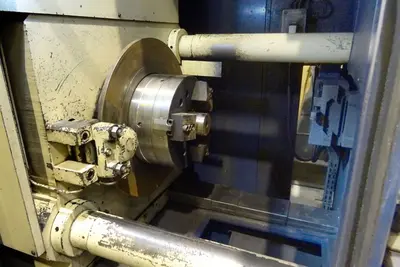

hydraulic chuck - chuck dia: 400 mm
max swing: 800 mm
>> so for example for a drive shaft you can weld a flange of max dia 800 mm
dia of spindle bore: 100 mm

power on spindle: 129 kW
spindle speeds: 296 > 740 rpm

Right side:

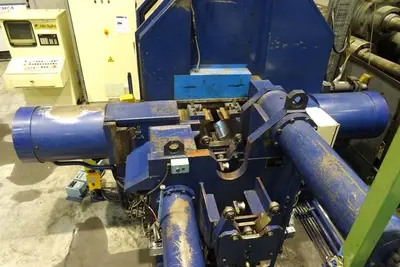

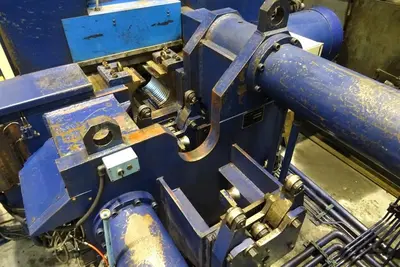

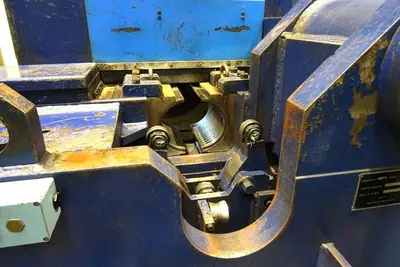

Hydraulic movable carriage
stroke: 700 mm
max clamping dia of movable carriage: 220 mm
clamping force: 2800 kN
weldable section: 6667 mm2 at 15kg/mm2
forging force: 1100 kN
friction force: 500 kN

Max distance between chuck and movable carriage: 845 mm

machine a souder par friction - Reibschweißmaschine
