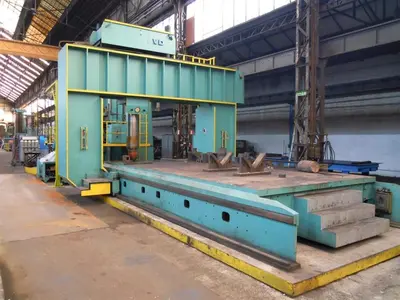

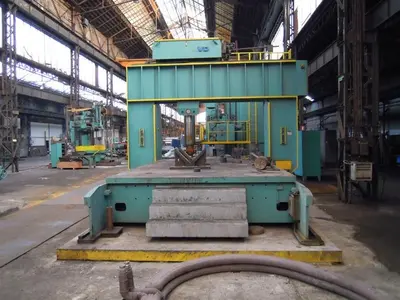

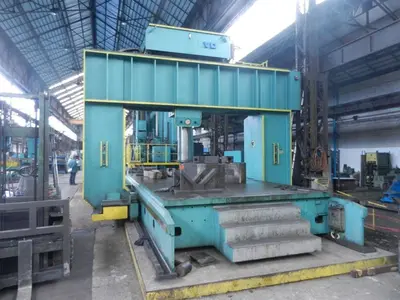

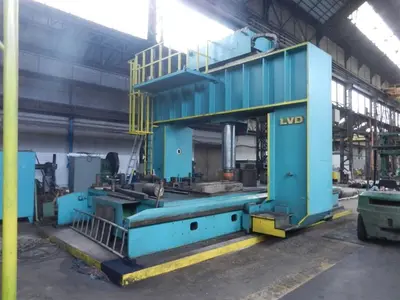

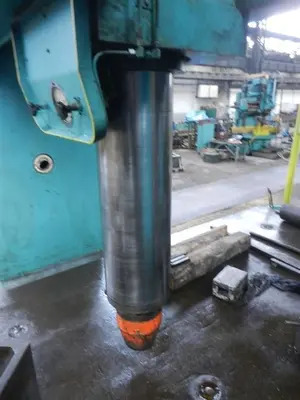

Portal straightening press 400 tons
>> For straightening shafts, cast steel products, rolled products, free-die forgings, flat steel, and also for pressing in and out bearings, bushings, shrink rings, etc.

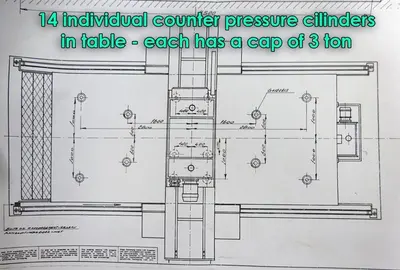

14 individual counter pressure cylinders in the table - 3 ton cap per cylinder
- 100 mm stroke per cylinder
- Pressure 300 kg/cm²

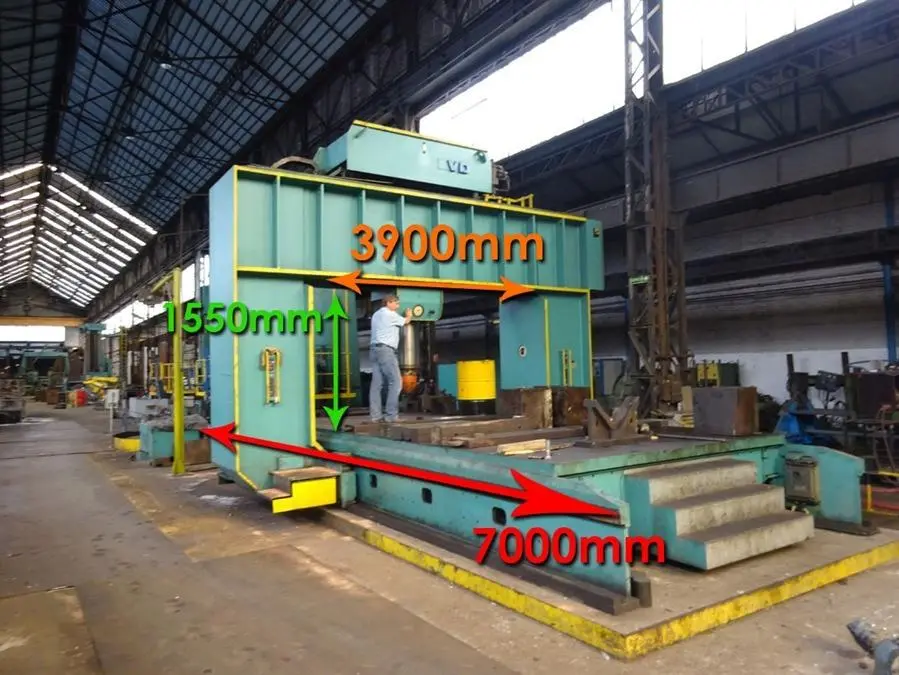

- Clearance between the uprights: 3990 mm
Operating speed – at max. pressure: 2 mm/sec
Return speed: 50 mm/sec
Shutter speed: 30 mm/sec
Capacity: 400 ton
Max ram adjustement: 1550 mm
Drawingspeed: 30 mm/sec
Workingspeed: 2 mm/sec
Returningspeed: 50 mm/sec
Max distance between table -- ram: 1550 mm

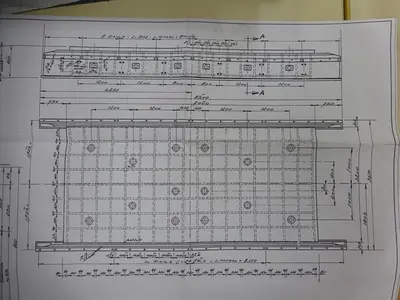

Dimensions of the table: 7000 x 3200 mm
Electric motor (power): 11 kW

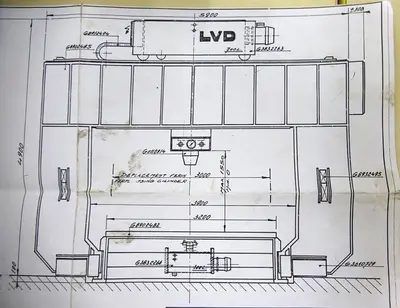

Length: 8500 mm
Depth: 5900 mm
Height: 4900 mm
Weight: 85 ton
