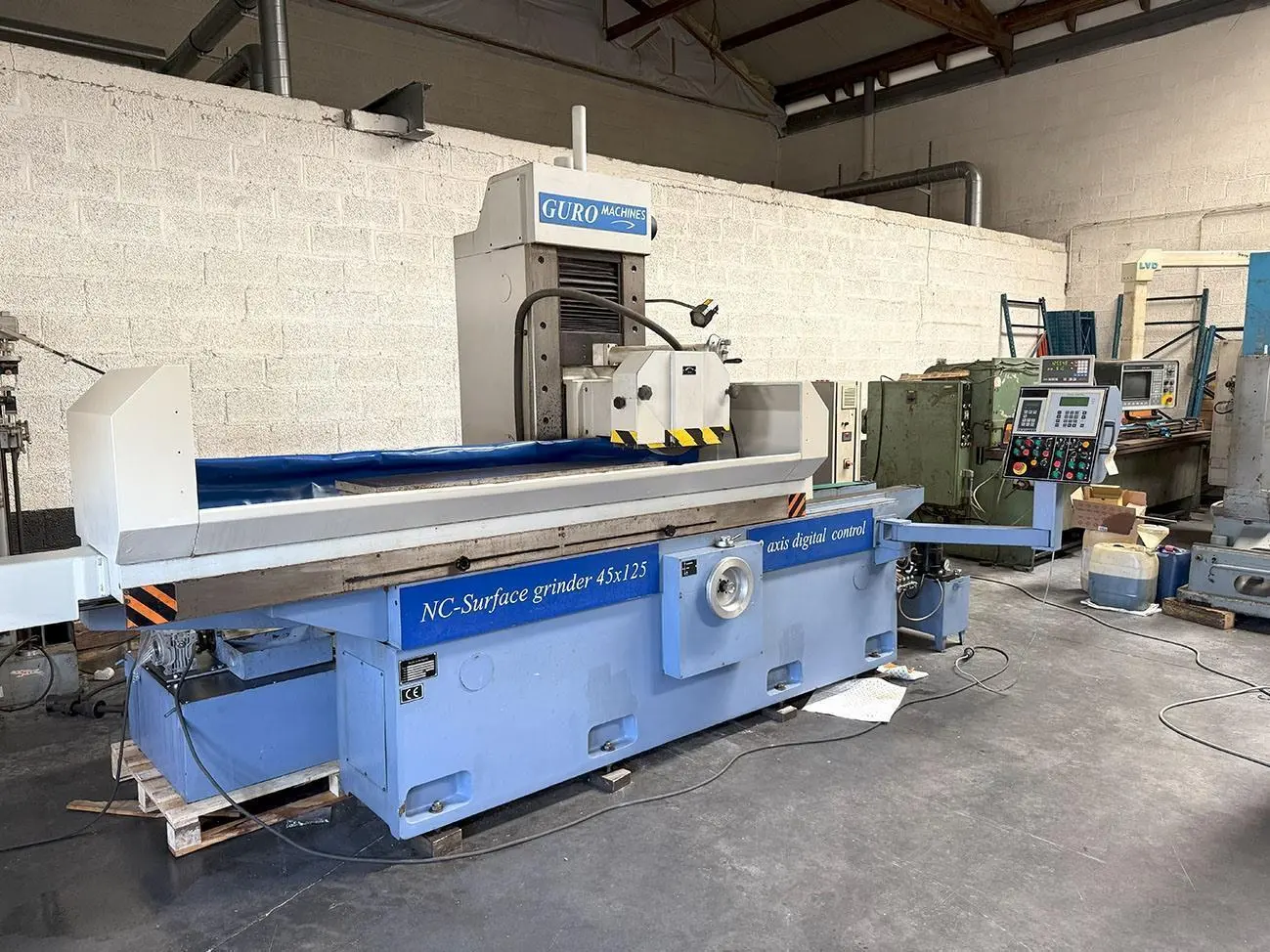

USED GURO ZMM 1250 X 450 MM NC
Overview
Description

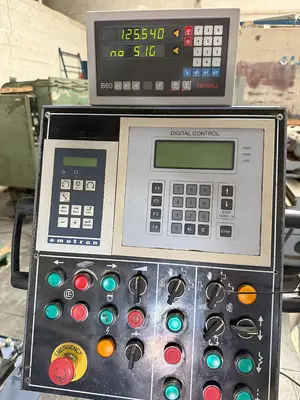

NC control 2 axes max workpiece height: 400 mm
Specifications
Longitudinal travel X-axis (autom.): 1500 mm
Cross-travel Y-axis (autom.): 450 mm
Travel Z-axis (autom.): 280 mm
Dimensions magnetic table: 1250 x 320 x 120mm
Distance between table -- spindlecentre: 210-625 mm
Max dia grindingstone: 450 x 80 x 203 mm
Spindlespeeds: 1460 rpm
Tension needed: 380V
Length: 4560 mm
Depth: 2630 mm
Height: 2700 mm
Weight: 7 ton
