Model R grinding machines are tangential rotary table grinding machines that are used where micro-metric precision machining of parts such as flanges, spacers, rings, circular blades etc is required.
The rotary table model can be equipped with precision bearings or hydrostatic support in which case the hydraulic unit is placed outside the machine to prevent it from transmitting heat to the structure and to facilitate maintenance.
max workpiece weight: 2000 kg
grinding speed: 1000 > 1900 rpm
speed of magnetic table: max 120 rpm

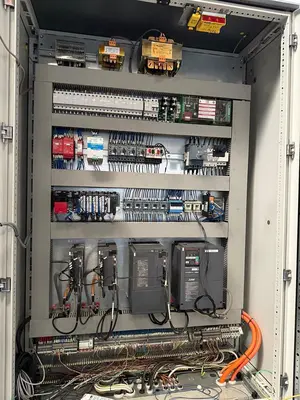

CNC touchscreen control

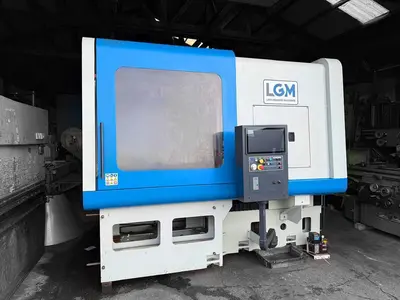

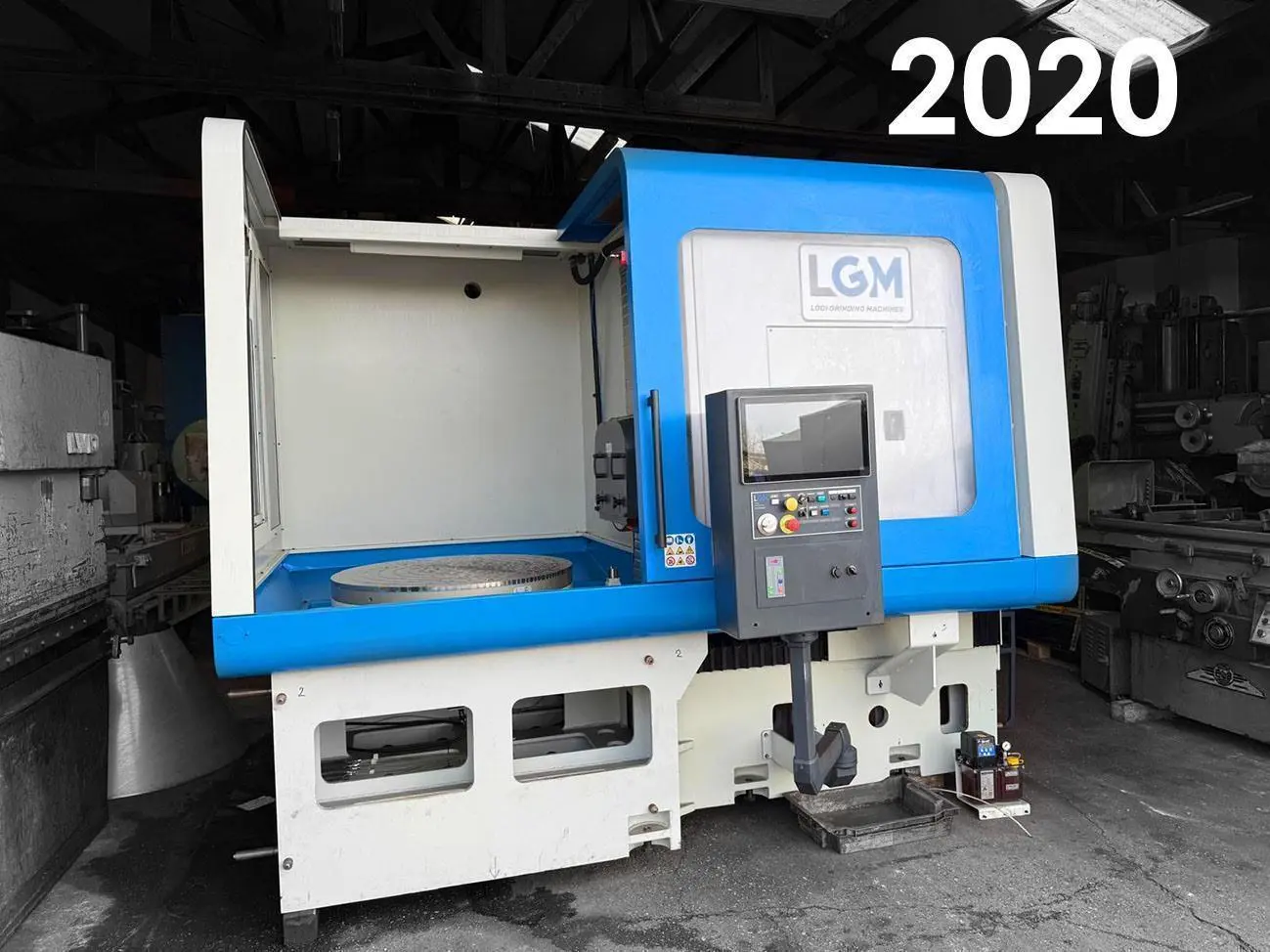

Surface grinding machine with rotary table
Rundtisch-Flachschleifmaschine

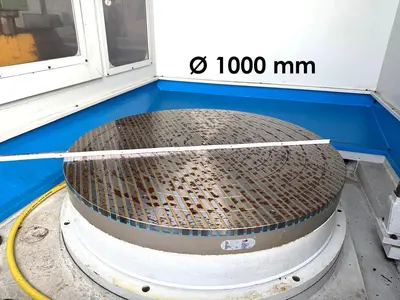

Magnetic table dimensions: 1000 mm
Max height workpiece: 500 mm

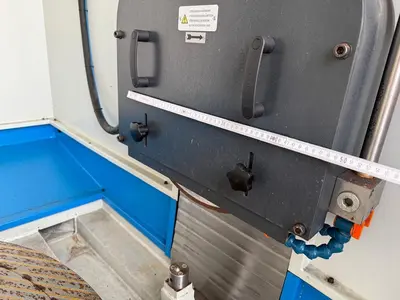

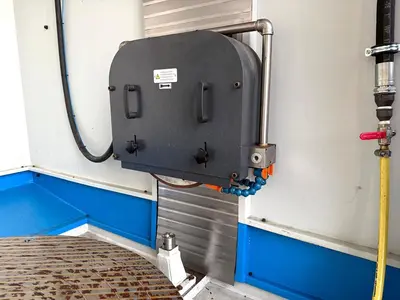

Dia ceramic grindstone: 500 x 203 x 80 mm
Motorpower: 15 kW
Tension needed: 400 V
Length: 2370 mm
Depth: 2200 mm
Height: 2500 mm
Weight: 8000 kg
