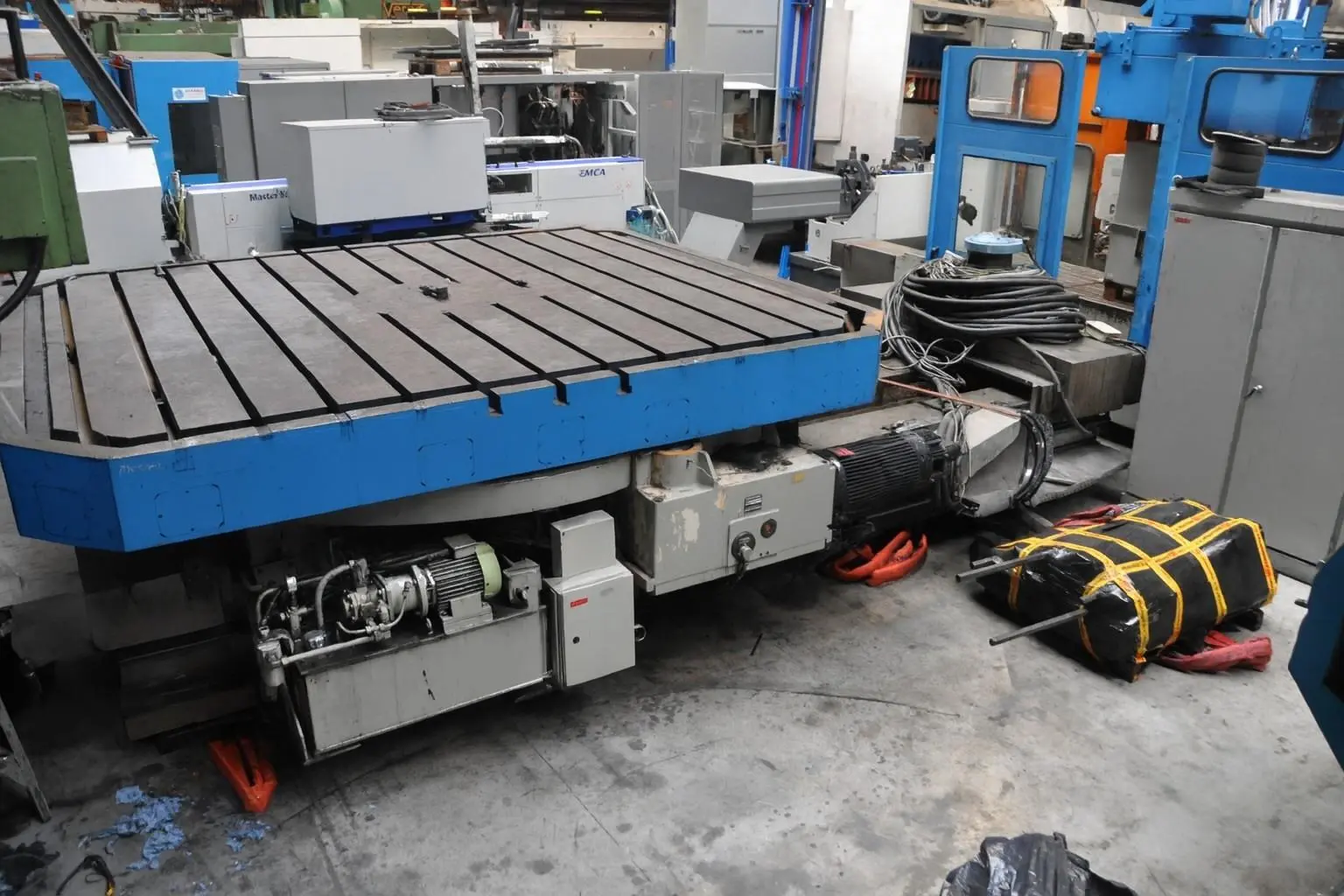

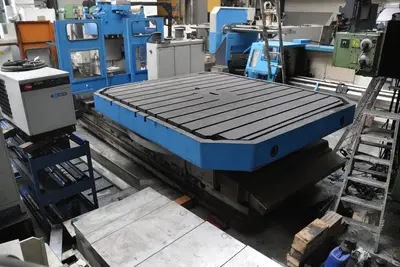

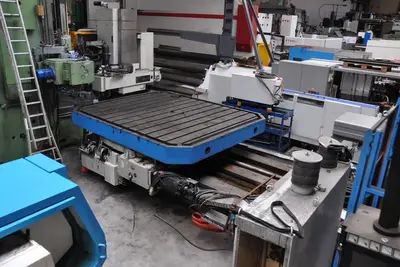

USED ERNAULT & SOMUA CNC TURNING TABLE 3500 X 3000 MM

Main Characteristics:
Table dimensions: 3000 x 3500 mm
Circumscribed circle: 4300 mm
Admissible load (uniformly distributed): 50 tons on 3000 x 3500 mm
Total table height without cylinder: 1,250 m
Number of T-slots, width 36 H7: 13
T-slot spacing: 250 mm
Longitudinal travel: 2700 mm

Longitudinal feeds / bed: • positioning: 2 mm/min • working: 1 to 3000 mm/min • rapid: 3000 mm/min

Circular feeds: • working: 0.0006 to 0.6 rpm • rapid (50-ton load): 0.6 rpm

Nominal torque of longitudinal motor/bed: 9.4 mkg
Nominal torque of circular motor/table: 22 mkg
Total installed power: 50 KVA

Table weight (without electrical equipment): 31,000 kg
