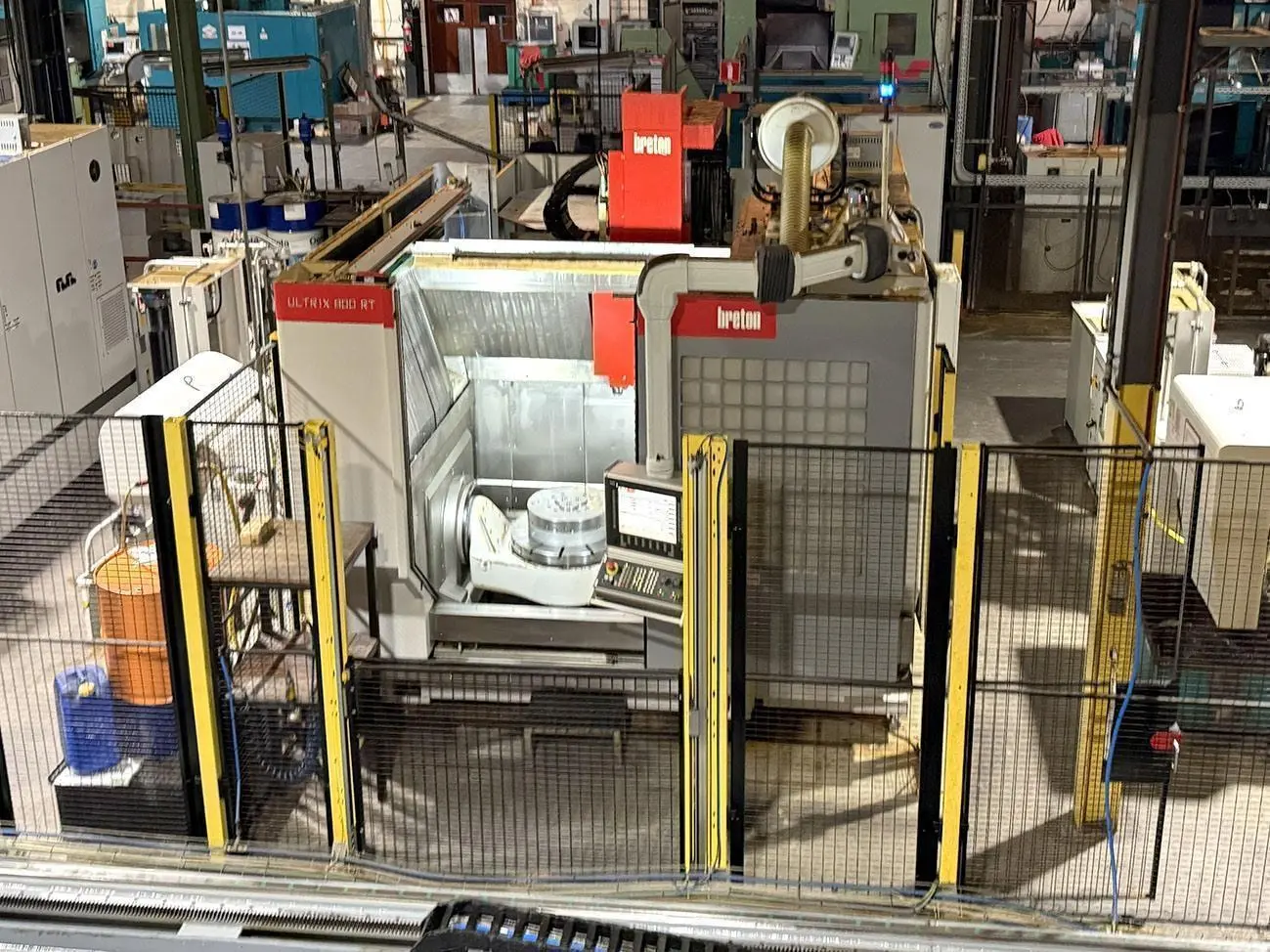

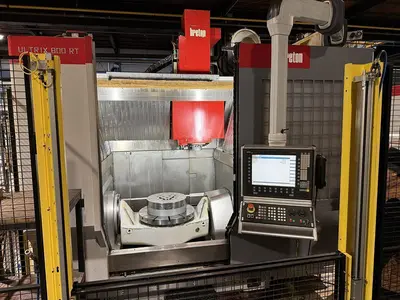

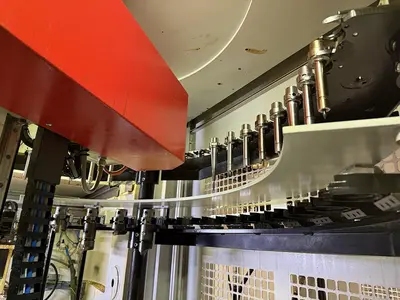

USED BRETON ULTRIX 800 X: 800 - Y: 900 - Z: 600 MM CNC

Type: Ultrix 800 RT

The Ultrix 800 RT is a
multifunction machining center with 5 interpolated axes and a moving
gantry for high-speed milling, turning, grinding, drilling, tapping,
finishing, deburring, and roughing of complex parts.

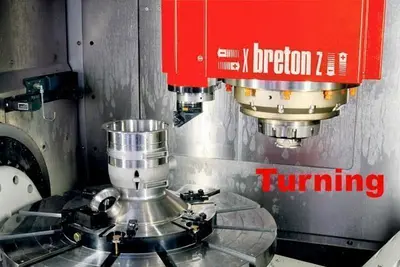

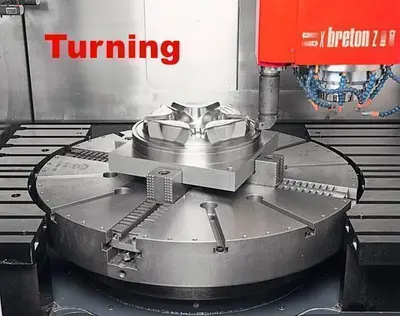

When used for turning > vertical lathe:

- swivel range: 1100 mm

- maximum weight of the workpiece: 700 kg

- 40/30 kW on the table

- max. torque on the table: 1500 Nm

- maximum speed of the table: 1000 rpm !!

- hydraulic clamping on table

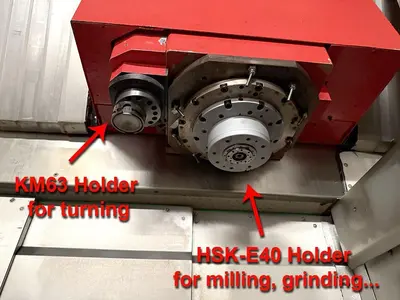

- tool taper for turning: KM63

- 150-position tool changer with 24 tool positions for turning

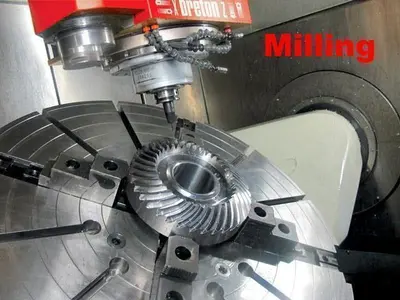

When used for milling, grinding, drilling, ... > machining center:

- X-axis: 800 mm

- Y-axis: 900 mm

- Z-axis: 600 mm

- A-axis: -30° / 110°

- C-axis: continuous

- maximum weight of the workpiece: 700 kg

- 55/40 kW on spindle

- max. torque on the spindle: 22 Nm

- max 40,000 rpm

- tool taper for milling: HSK-E40

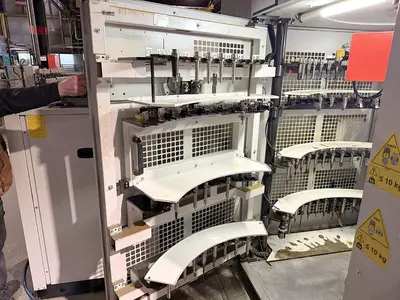

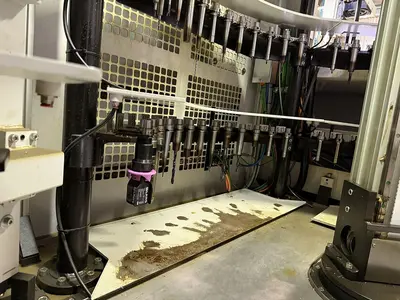

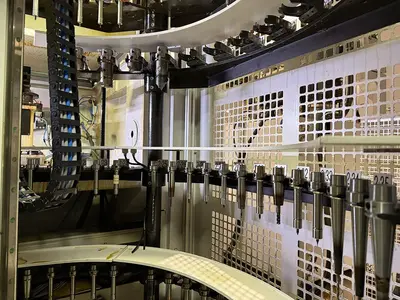

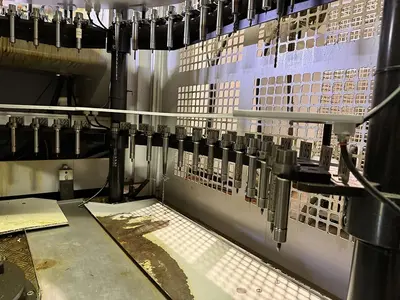

- 150-position tool changer with 126 tool positions for milling, grinding, drilling

List of options mounted on the machine:

1 - 40,000 rpm high-speed spindle

2 - table dia 700 mm with hydraulic clamping

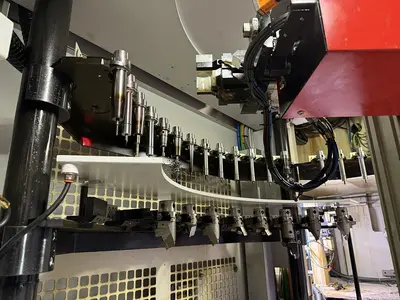

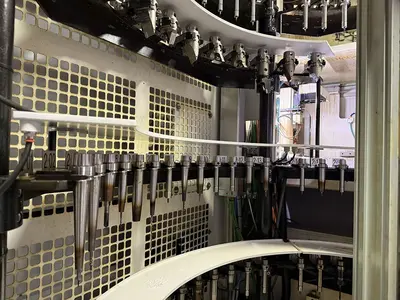

3-150-position tool changer

4 - chip conveyor belt

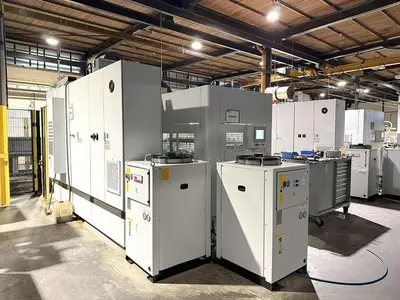

5 - cooling system with recovery

6 - coolant temperature control

7 - high pressure cooling (40 to 70 bar) by spindle

8 - smoke extraction system

9 - chip collection box

10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools

11 - Renishaw probe

X-axes: 800 mm
Y-axes: 900 mm
Z-axes: 600 mm

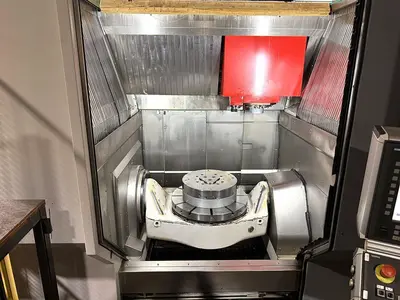

Table dimensions: dia 700 mm
Max weight on the table: 700 kg
Admission in spindle (ISO): HSK-A63
Power on the spindle: 40 kW
Drilling capacity: yes
Tapping capacity: yes

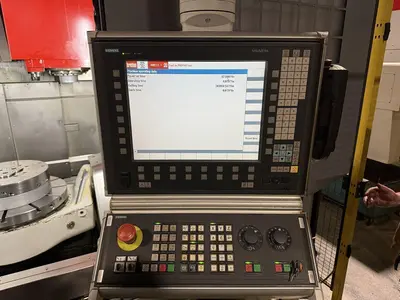

Control: Siemens 840D Solution Line
Number of axes: 5
Toolstore: yes
Length: 4655 mm
Depth: 5890 mm
Height: 3415 mm
Weight: 17 ton
Cooling-system: yes
