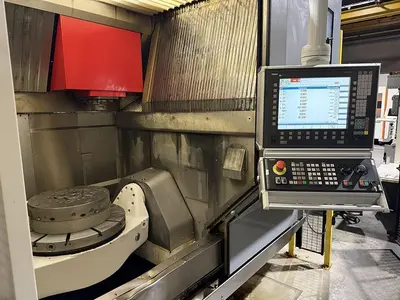

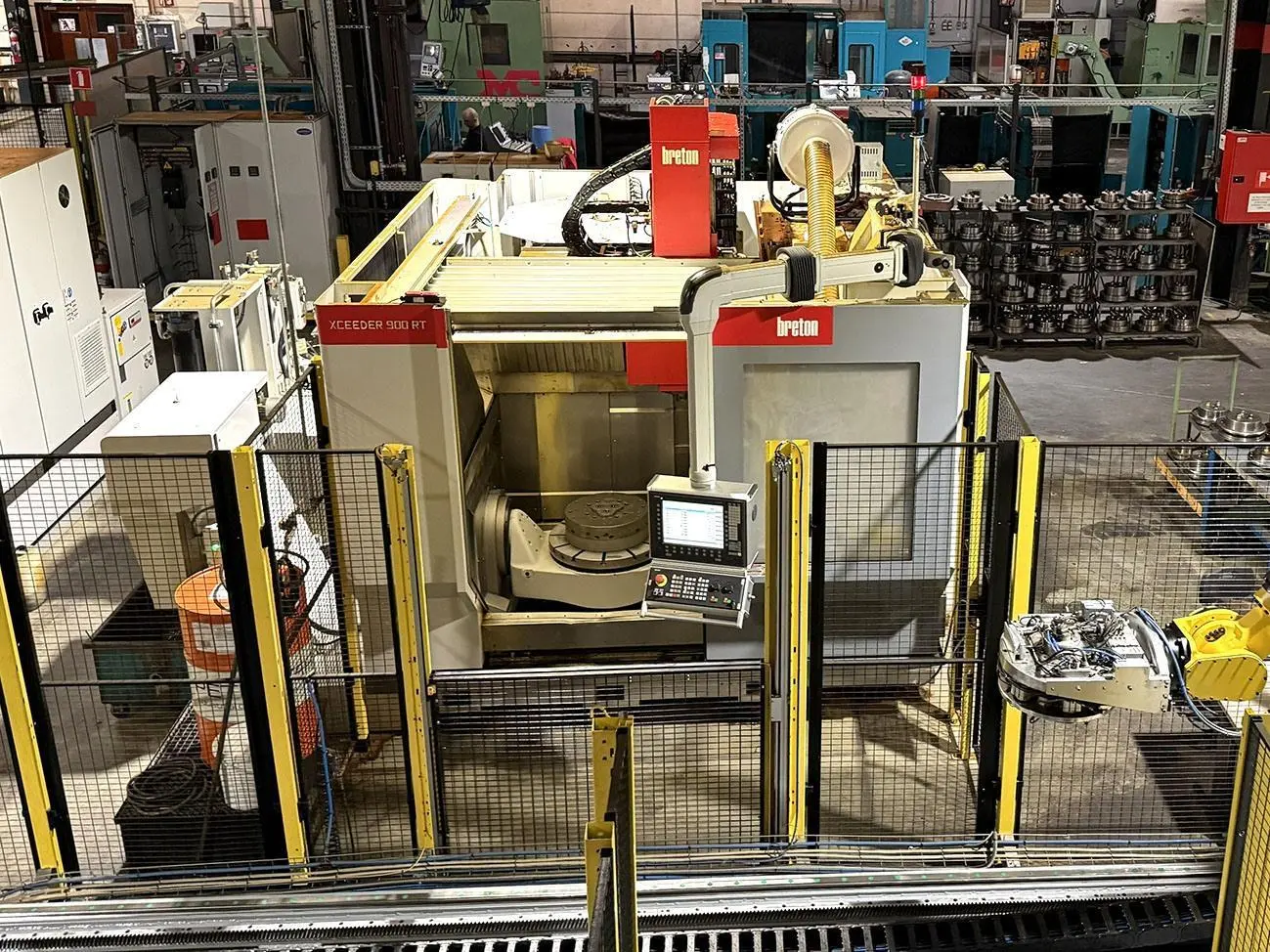

USED BRETON XCEEDER 900 X: 900 - Y: 900 - Z: 600 MM CNC
Overview
Description
Type: XCEEDER 900/RT

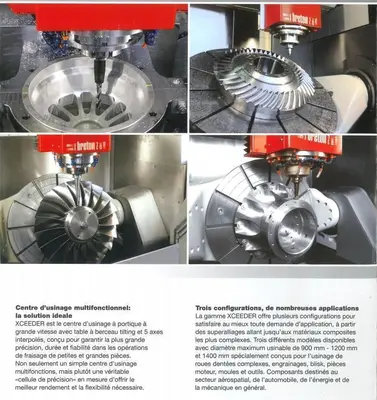

XCEEDER is a 5-axis interpolated moving crosshead machining center for high-speed milling operations. Specially designed for applications ranging from complex gears and impellers to molds, dies and tools, for projects in the aerospace, automotive and power generation industries.
- Maximum workpiece diameter: 900 mm
- Maximum distance between spindle and table: 700 mm
- Hydraulic clamping on table
- A-axis: -30° / 110°
- C-axis: continuous
- max torque on spindle: 22 Nm

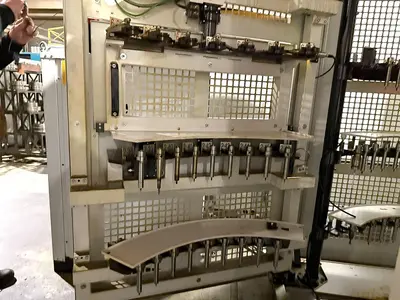

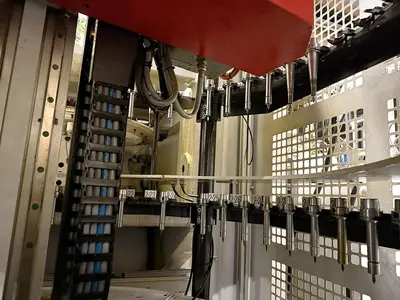

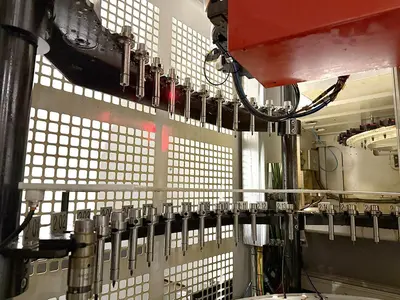

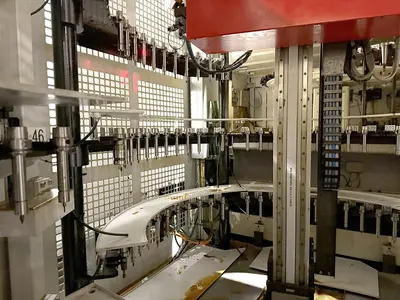

- 150 position tool changer
Options fitted to this machine:
1 - 40,000 rpm high-speed spindle

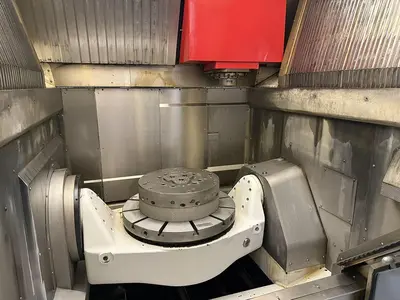

2 - table dia 700 mm with hydraulic clamping

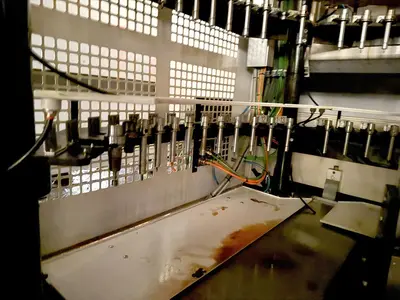

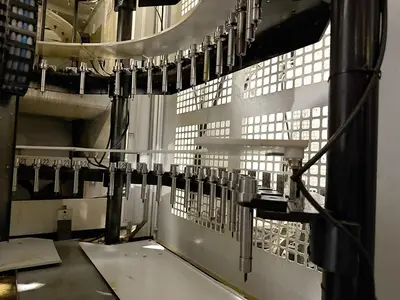

3-150-position tool changer
4 - chip conveyor belt
5 - cooling system with recovery
6 - coolant temperature control
7 - high pressure cooling (40 to 70 bar) by spindle
8 - smoke extraction system
9 - chip collection box
10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools
11 - Renishaw probe Many of the XCEEDER 's advantages come from the core of its structure. From there, through the cast iron gantry, it benefits from all the vibration-damping properties of “Metalquartz”, Breton's patented material, which provides thermal inertia and withstands machining for many years, producing highly precise and rigid responses to the machining process.
Specifications
X-axis: 900 mm
Y-axis: 900 mm
Z-axis: 600 mm
Table dimensions: dia 700 mm
Max weight on the table: 1000 kg
Admission in spindle (ISO): HSK-A63
Power on the spindle: 40 kW

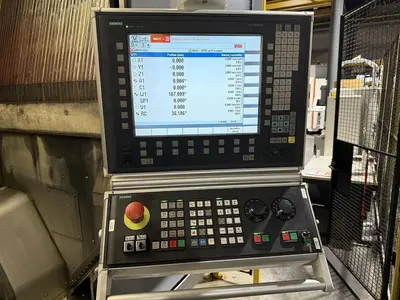

Control: Siemens Sinumerik 840D SL
Number of axes: 5 simultaneous
Toolchanger: yes
Length: 4655 mm
Depth: 5890 mm
Height: 3415 mm
Weight: 16 500 kg
