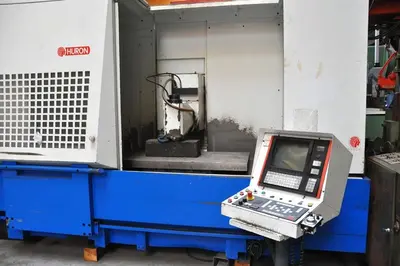

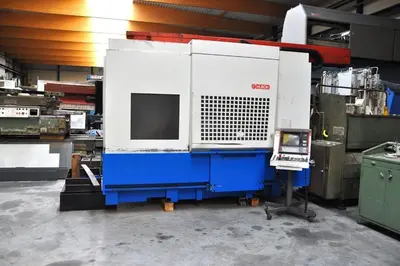

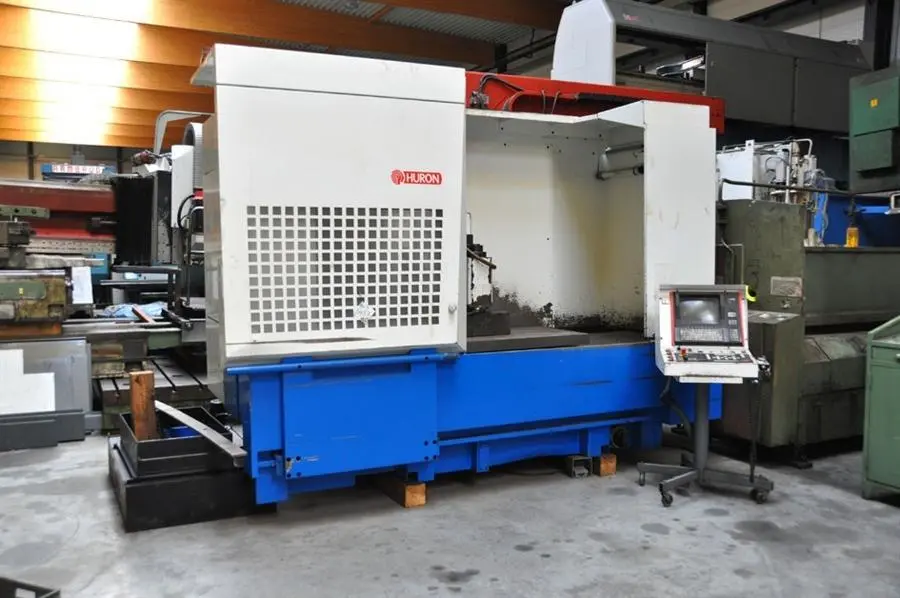

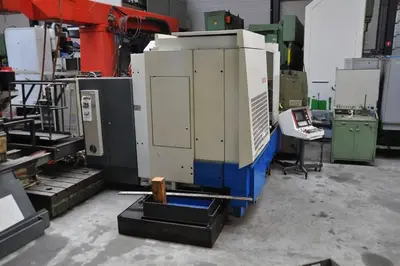

USED HURON EXV CNC X:1200 - Y:700 - Z:600 MM
Overview
Manufacturer:
HURONStock #:
D.01 5487
Description
Bed milling machine CNC controlled
Ideal for 3D machining!
Specifications
X-axis: 1200 mm
Y-axis: 700 mm
Z-axis: 600 mm
Table dimensions: 1600 x 600 mm
Max weight on the table: 2450 kg
Admission in spindle (ISO): ISO 40
Power on the spindle: 25 kW

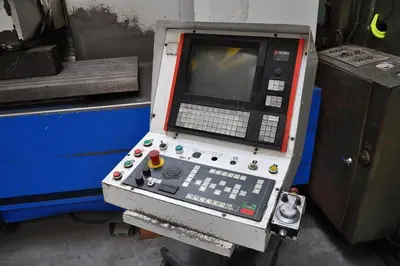

Control: NUM 1060 CNC
Number of axes: 3

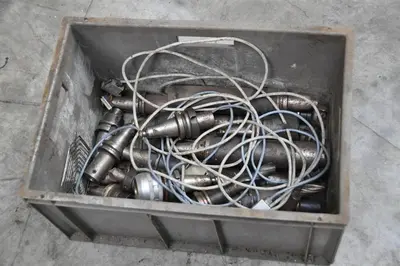

Toolchanger: Yes
Number of toolholders: 32
Number of rotations: 100 - 14000 rpm
Height: 2950 mm
Weight: 15500 kg
Cooling-system: Yes
Light: Yes
