max distance between table and spindle: 2200 mm

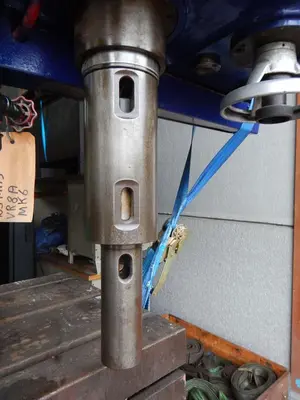

Admission in drilling-spindle (morse): Mk6
Max drilling capacity: 80/110 mm
Longitudinal travel drilling-head (X-axis): 2025 mm
Height-travel arm (Y-axis): 1100 mm
Min dist. round column--drillingsp (X-axis): 500 mm
Max dist.round column -- drillingspindle: 2515 mm
Dia spindle: 110 mm
Max drilling-depth: 475 mm
Speeds: 9-1400 rpm
Power on the spindle: 9 kW
Height: 4327 mm
Weight: 1456 mm
ACCESSORIES: 4560 mm
Cooling system: 11 ton
