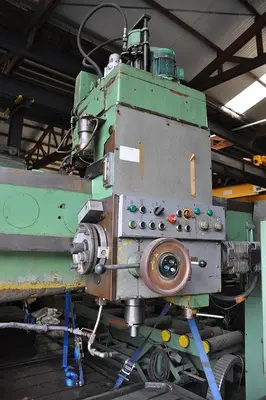

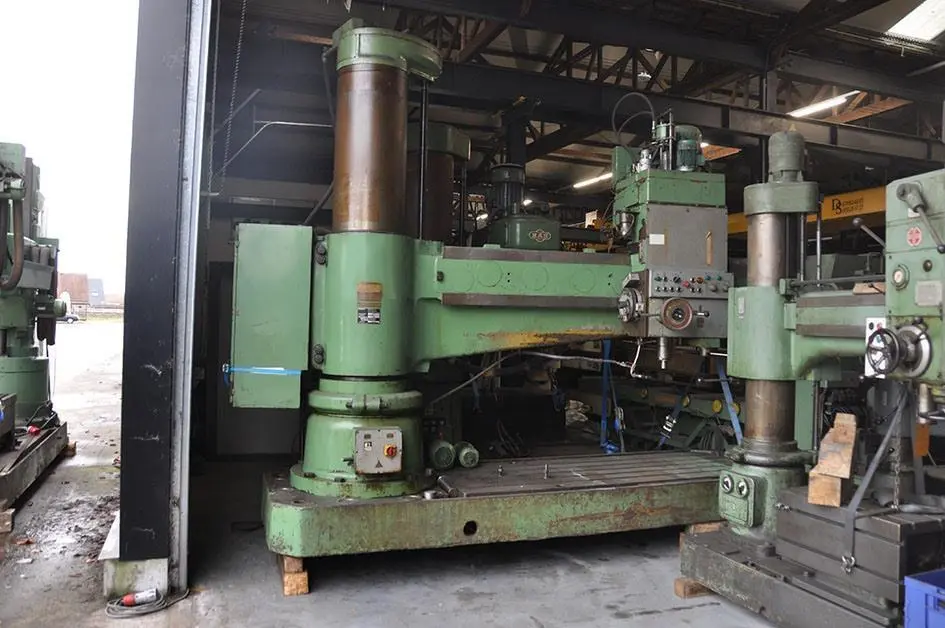

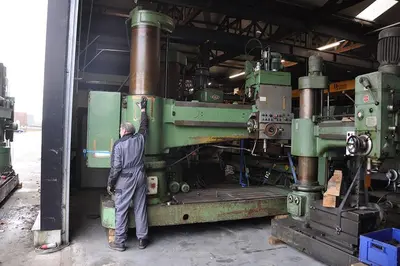

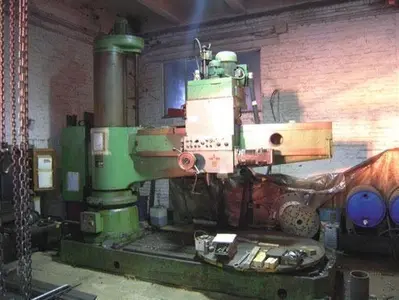

USED STANKO 2A 576 - ISO 50 - X:2000 MM Y: 1000 MM

Dimensions: L 3930 mm x W 1280 mm
Maximum Drilling Capacity
In stem: up to 80 mm in diameter
In cast iron: up to 100 mm in diameter
So the maximum drilling capacity depends on the material: 80 mm for steel and 100 mm for cast iron.

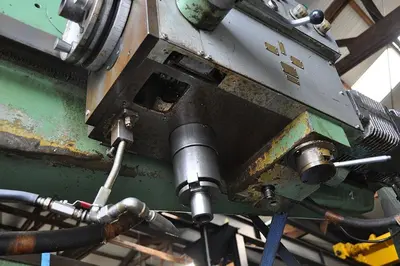

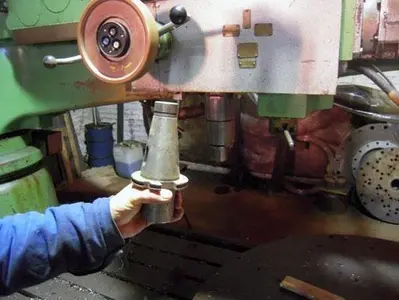

Admission in drilling-spindle (morse): ISO 50
Base dimensions (1) Table dim (2): (1) 3800 x 1300 mm
Longitudinal travel drilling-head (X-axis): 2000 mm
Height-travel arm (Y-axis): 1000 mm
Min dist. round column--drillingsp (X-axis): 500 mm
Max dist.round column -- drillingspindle: 2500 mm
Max drilling-depth: 480 mm
Power on the spindle: 9 kw
Height: 4065 mm
Weight: 12000 kg
