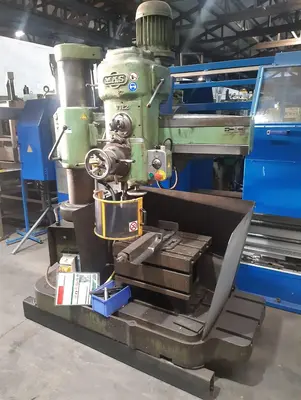

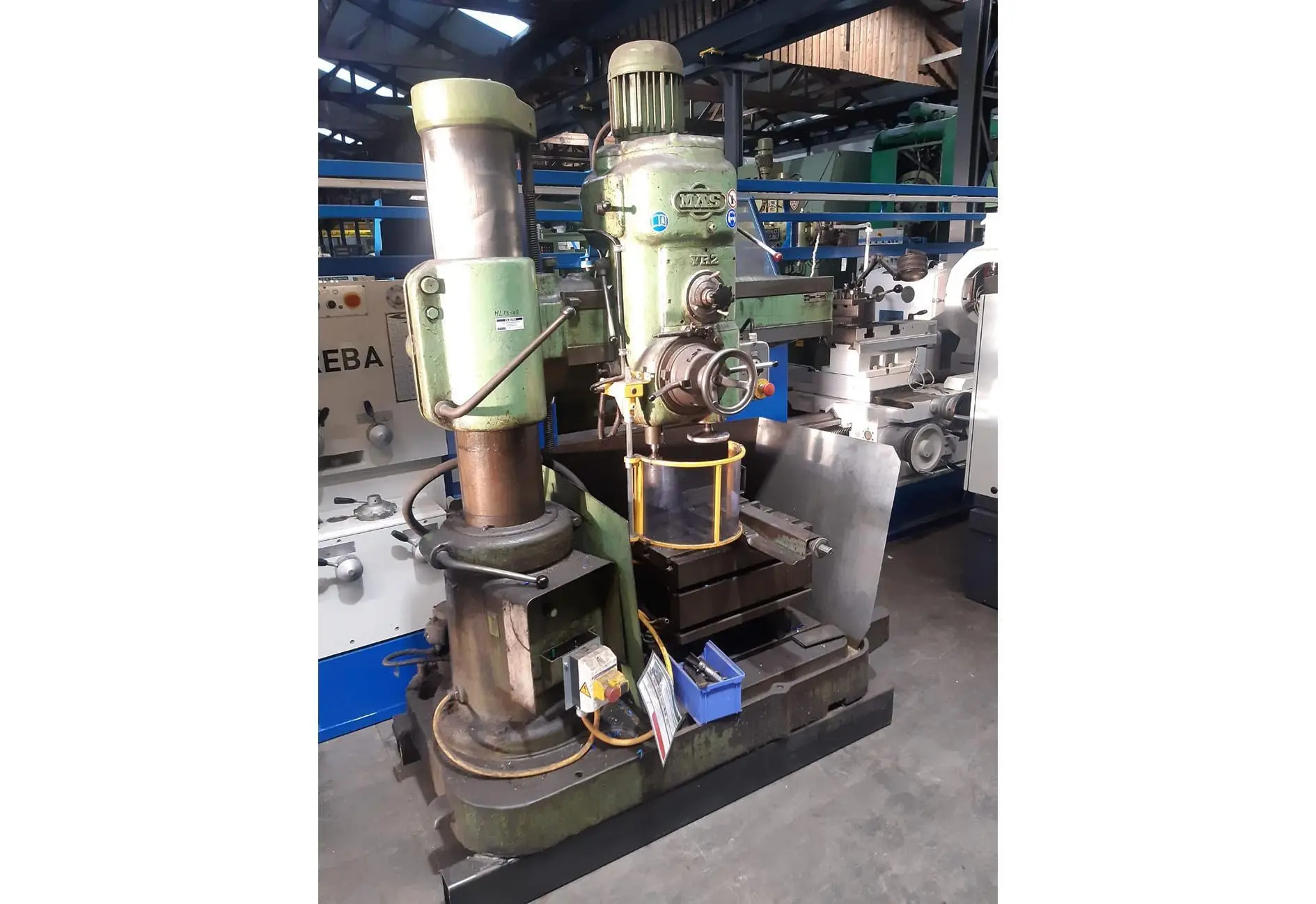

USED TOS MAS VR2 MK4
Overview
Description
Vertical movement of arm: 520 mm
Horizontal movement of spindle: 1000 mm
Specifications
Admission in drilling-spindle (morse): Mk4
Max drill capacity: 35 mm
Driven gear (from -- to): 90 > 4500 rpm
Max drilling depth: 230 mm
Motorpower: 1,5 kW
Length: 1900 mm
Depth: 700 mm
Height: 2000 mm
Weight: 2,3 ton
