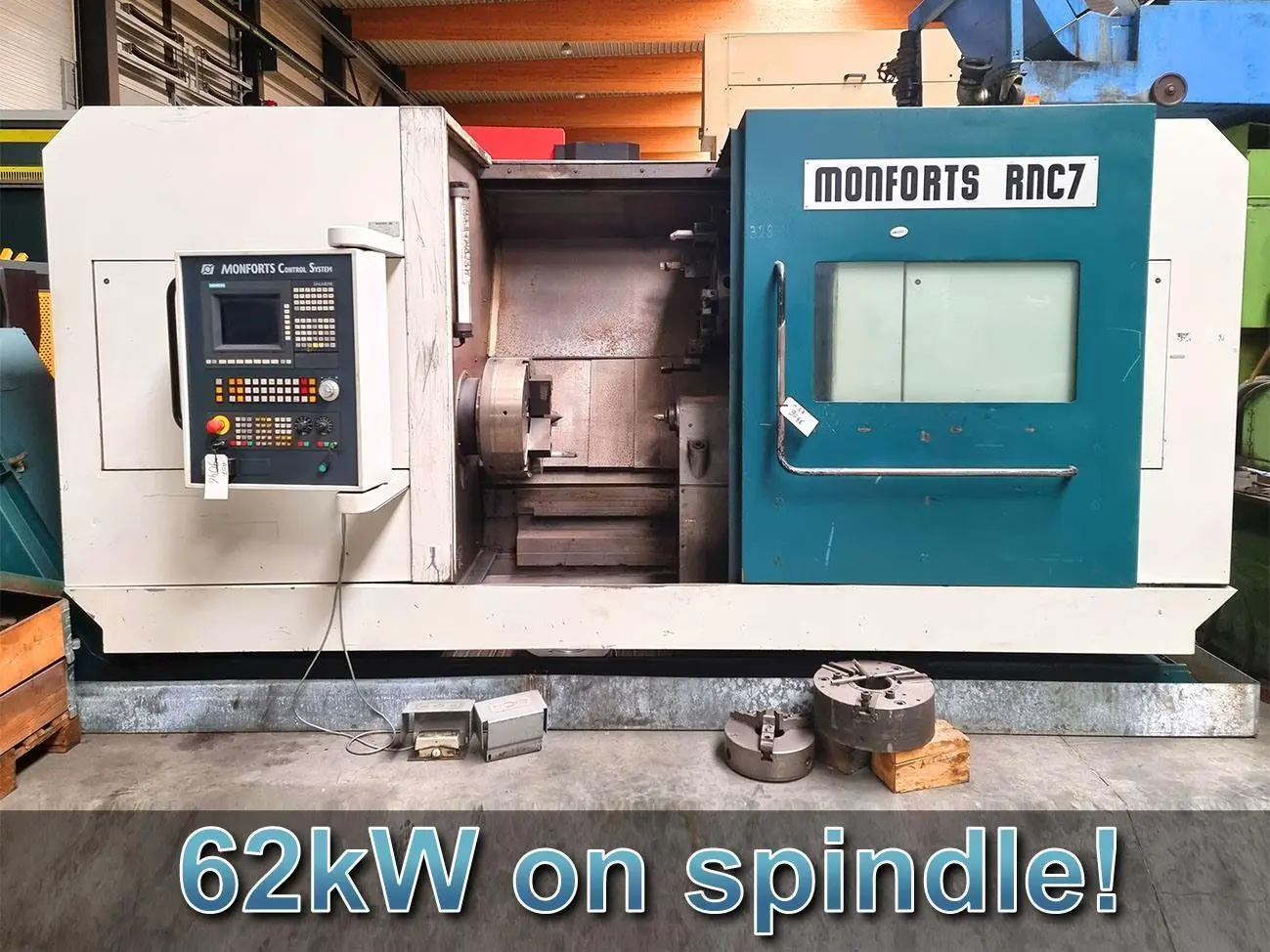

USED MONFORTS RNC 7 Ø 720 X 1500 MM CNC - HARD TURNING MACHINE
Overview
Description

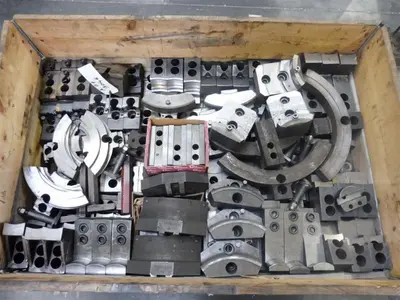

Equipped with Shunk chuck dia 500 mm VDI tools
For finishing difficult turns!
CNC high performance lathes, whose strengths are particularly evident in hard turning. An important feature of all monfort lathes is the hydrostatic round guide, which is free of wear and has an optimized vibration damping. In addition, it delivers the best surface results for turning, milling, drilling and threading in the long term.
• High rigidity against cutting forces
• Very good damping of vibrations
• This results in long tool life
• Highest turning accuracy
• Resistance to continuous stress
• Absolute freedom from wear
• Dry machining is possible
Monfort lahtes use hydrostatic bearing systems and guideways, advantages of this include:
- Excellent running accuracy
- Superb damping properties
- High stiffness, independent of speed
- Good thermal stability
- No wear and thus long-term accuracy
- Longer tool life
Similar to Hembrug hydrostatic precision lathe
Specifications
Swing over bed: 720 mm
Distance centre tot centre: 1500 mm
Max longitudinal travel Z-axis: 1500 mm
Max cross travel X-axis: 320 mm
Spindle cone: A2-11
Dia of spindle bore: 110 mm
Power on the spindle: 62 kW
Number of speeds: 4000 rpm

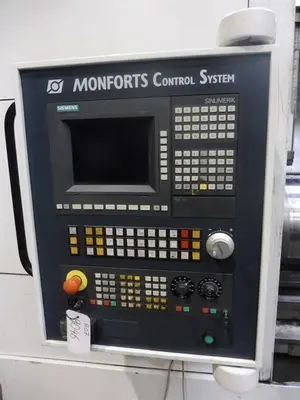

Command: Siemens Sinumerik 840C
Length: 5600 mm with scrap conveyor
Width: 2850 mm
Height: 2300 mm
Weight: +-8500 kg
ACCESORIES: yes

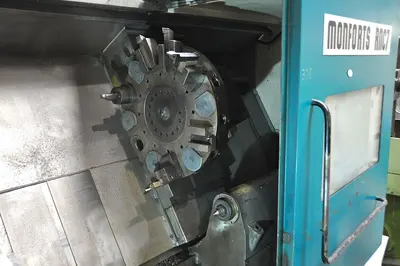

Toolchanger: yes
Number of tools: 12x
