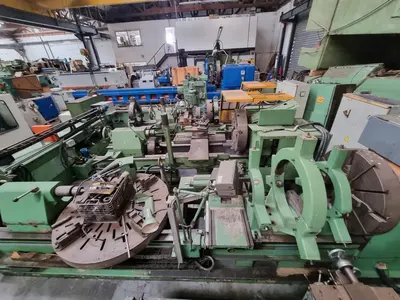

Potisje = Morandolicentie!!
1240 mm in the machine pocket
1 x 4 jaw chuck: 900 mm

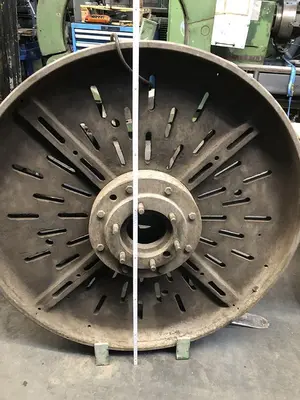

1x 4-claw surface plate: 1200 mm

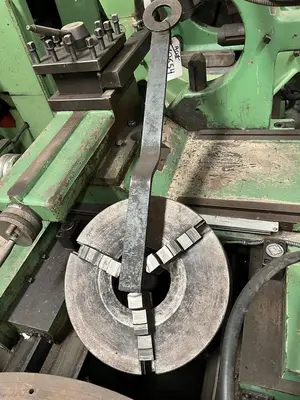

1x 3-jaw chuck: 400 mm, passage: 125 mm
Digital readout, 2 axes

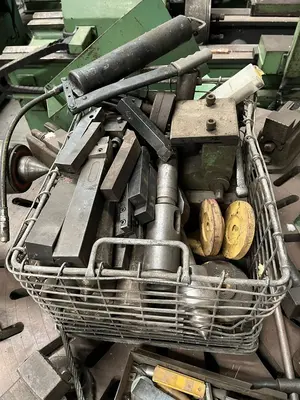

Lots of tools included: center punches, chisels, tooling, etc.

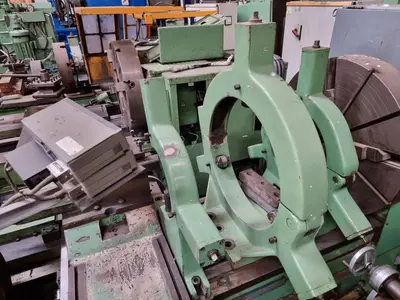

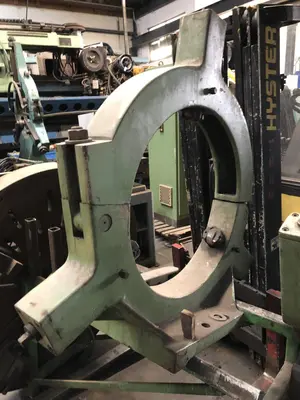

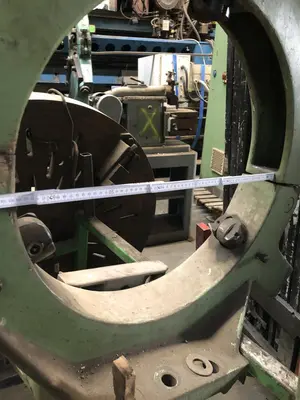

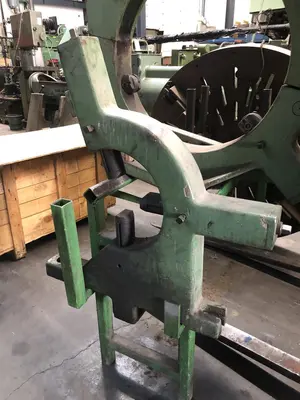

including 3 lathe rests:
- Diameter: 650 mm
- Diameter: 400 mm
- Pedestrian seat diameter: 300 mm

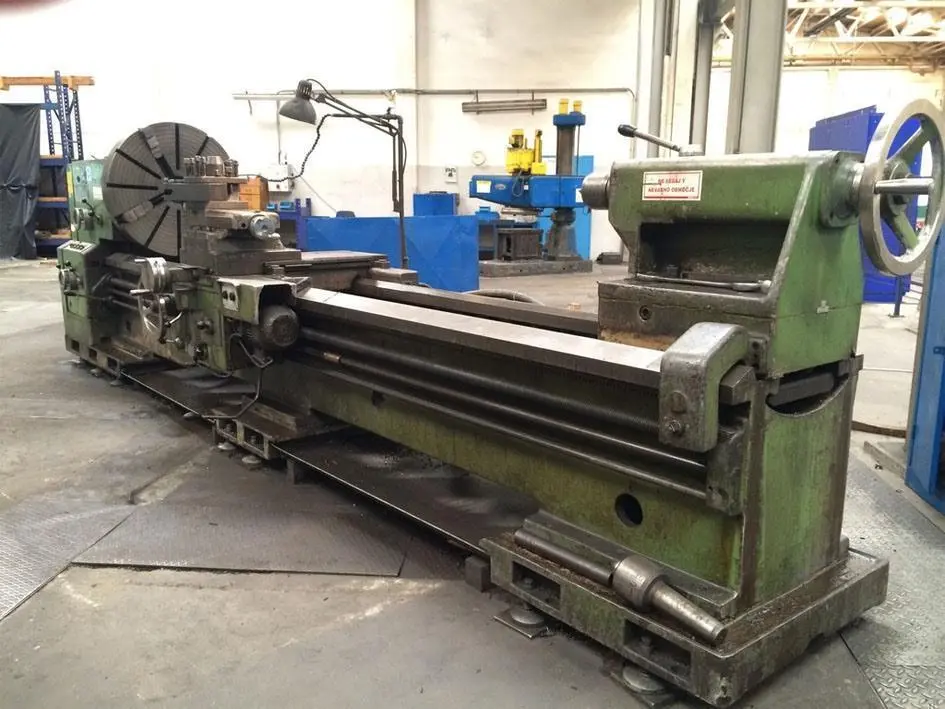

Distance between centers: 4100 mm
Swing over bed: 910 mm
Swing over cross-slide: 600 mm
Swing in gap: 1240 mm
Diametre of main spindle bore: 140 mm

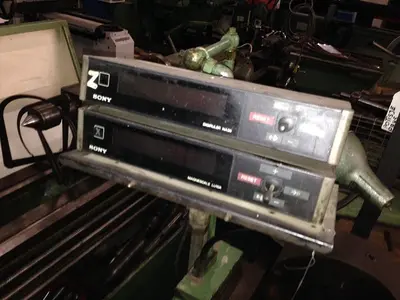

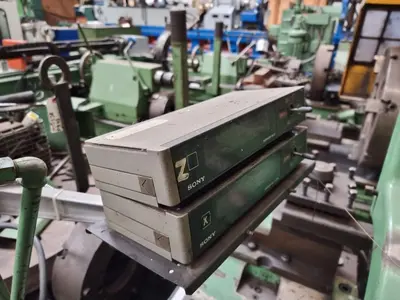

Digital screen: Sony 2 axes
Length: 6100 mm
Width: 2300 mm
Height: 2100 mm
