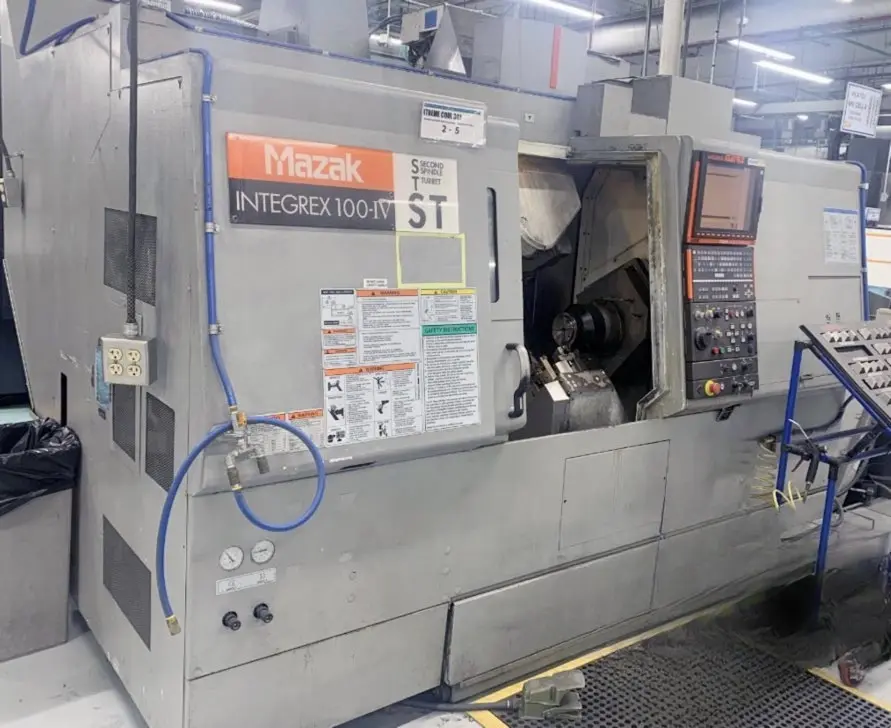

USED 2013 MAZAK INTEGREX 100-IV ST
Overview
Specs
X-Travel: 16.14"
Z-Travel: 31.69"
Distance Between Centers: 30"
Max Swing Over Bed: 21.46"
Max Turning / Cutting Length: 29.65"
Max Cutting / Turning Diameter: 21.46"
Spindle-
Bar Capacity: 2.00"
Chuck Type: Collet
Spindle Bore: 2.40"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Spindle Nose: A2-5
Second Spindle-
Total Spindles: 3
Sub-Spindle: Equipped With
Second Bar Capacity: 2.00"
Second Chuck Description: Collet
Second Spindle Speed: 6000 RPM
Second Spindle Motor: 15 HP
Second Spindle Nose: A2-5
Turret-
Single Turret: Equipped With
Single Turret Live Tooling: Equipped With
Tool Positions: 40
Twin Turret: Equipped With
Live Milling Max RPM: 12000 RPM
Equipped With
Control-
Control Make/Model: Mazatrol Matrix CNC Control
Control Options: Synchronized Tapping;Inch/Metric Conversion;EIA/ISO Code Input Function
Additional Control Options: 3D Coordinate Conversion,
Absolute Positioning System,
XYZ Pitch Error Compensation Input,
EIA Dynamic Compensation,
Mazacc-3D High Speed Software Pkg.,
Tool Tip Point Control & Tool Radius Comp.,
Options-
Additional Machine Specs: C-Axis .0001 Degree Incr.
Cat 40 ATC Magazine
Auto Chuck Open & Close Spindle 1 & 2
C1+C2 Synchronous Function
Lower Turret & sub spindle
Coolant Types: Thru-Spindle Coolant
Coolant PSI: 213 PSI
Chip Removal: Chip Conveyor
