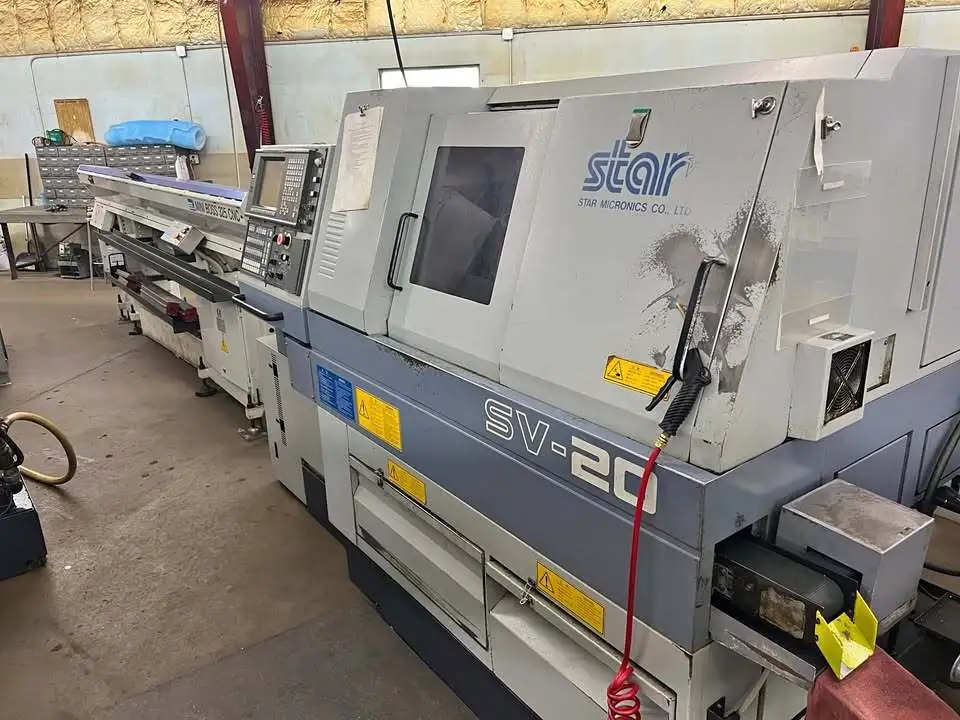

USED STAR SV-20

(2) Machines Available

Star SV-20 CNC Swiss Type Turning Center with Sub-Spindle/Live Tooling
Max. Turning Diameter: 7.87"
Headstock Stroke: 8"
Main Spindle:
Spindle Speeds: 10,000 RPM
Spindle Indexing: .01 deg ( Full C-Axis)
Motor: 7.5 HP:
Spindle Bore Diam.: 1"
Sub-Spindle:
Spindle Speeds: 10,000 RPM
Motor: 4.5 HP
Turning Stations: 5
Milling Stations: 3
Milling Motor: 1 HP
Milling RPM: 6,000 RPM
X-Axis Travels: .787"
Z-Axis Travels: 8"
Y-Axis Travels: .787"

Barfeed
Parts Conveyor
C-Axis Main and Sub-Spindle
Parts Catcher
Misc. Tool Holders
32 Tool Offsets
RS-232 Port
